CD SECTION
Note:
1. CD Block is basically constructed to operate without adjustment.
2. Use YEDS-18 disc (Part No. 3-702-101-01) unless otherwise indicat-
ed.
3. Use an oscilloscope with more than 10 M
impedance.
4. Clean the object lens by an applicator with neutral detergent when the
signal level is low than speci
fi
ed value with the following checks.
5. Check the focus bias check when optical pick-up block is replaced.

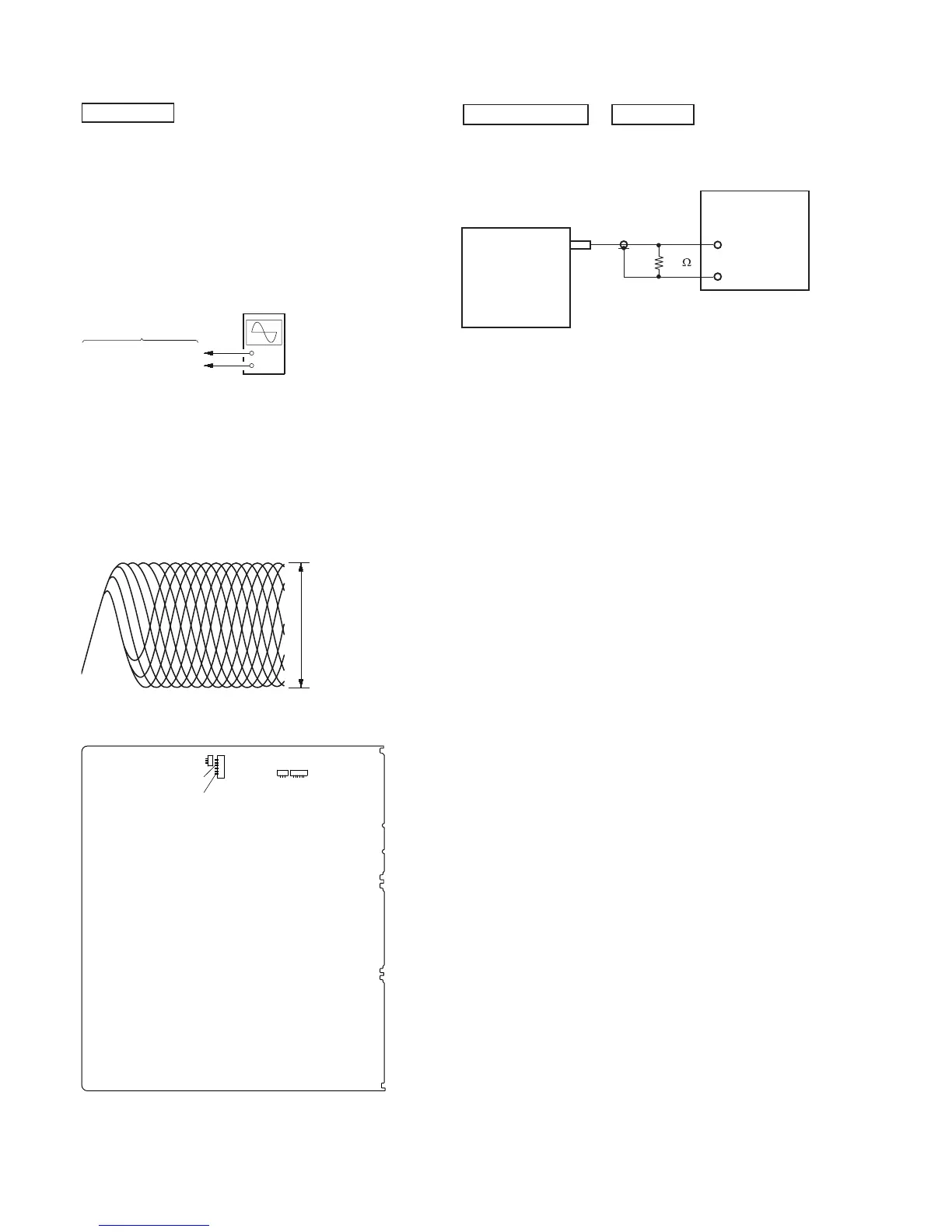

FOCUS BIAS CHECK
Procedure :
1. Connect the oscilloscope to CN507 pin 6 (RFMON) and
CN507 pin 3 (GND) on the MB board.
2. Press the [
?/1
STANDBY] button to turn the power on, and
press the [CD] button to select CD function.
3. Set disc (YEDS-18) and press the [
u
] button to playback.
4. Con
fi
rm that oscilloscope waveform is as shown in the
fi
gure
below (eye pattern).
A good eye pattern means that the diamond shape (
¡
) in the
center of the waveform can be clearly distinguished.
Checking Location:
-MB Board (Conductor Side)-
+
–
MB board
oscilloscope
(DC range)
CN507 pin 6 (RFMON)
CN507 pin 3 (GND)
VOLT/DIV: 200 mV
TIME/DIV: 500 ns
level:
1.0 ± 0.25 Vp-p (CD)
SECTION 4
ELECTRICAL CHECK
FM AUTO STOP CHECK
Procedure:
1. Turn the power on.
2. Input the following signal from Signal Generator to FM an-
tenna input directly.
Carrier frequency : A = 87.5 MHz, B = 98 MHz, C = 108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note:
Please use 75 ohm “coaxial cable” to connect SG and the
set. You cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.
3. Set to FM tuner function and scan the input FM signal with
automatic scanning.
4. Con
fi
rm that input Frequency of A, B and C detected and
automatic scanning stops.
The stop of automatic scanning means “The station signal is
received in good condition”.
TUNER SECTION
0 dB = 1 V
signal
generator
set
+
–
75
CN891
CN590
CN507
CN509
pin 3 (GND)
pin 6 (RFMON)
