HCD-GPX33/GPX55/GPX77/GPX88

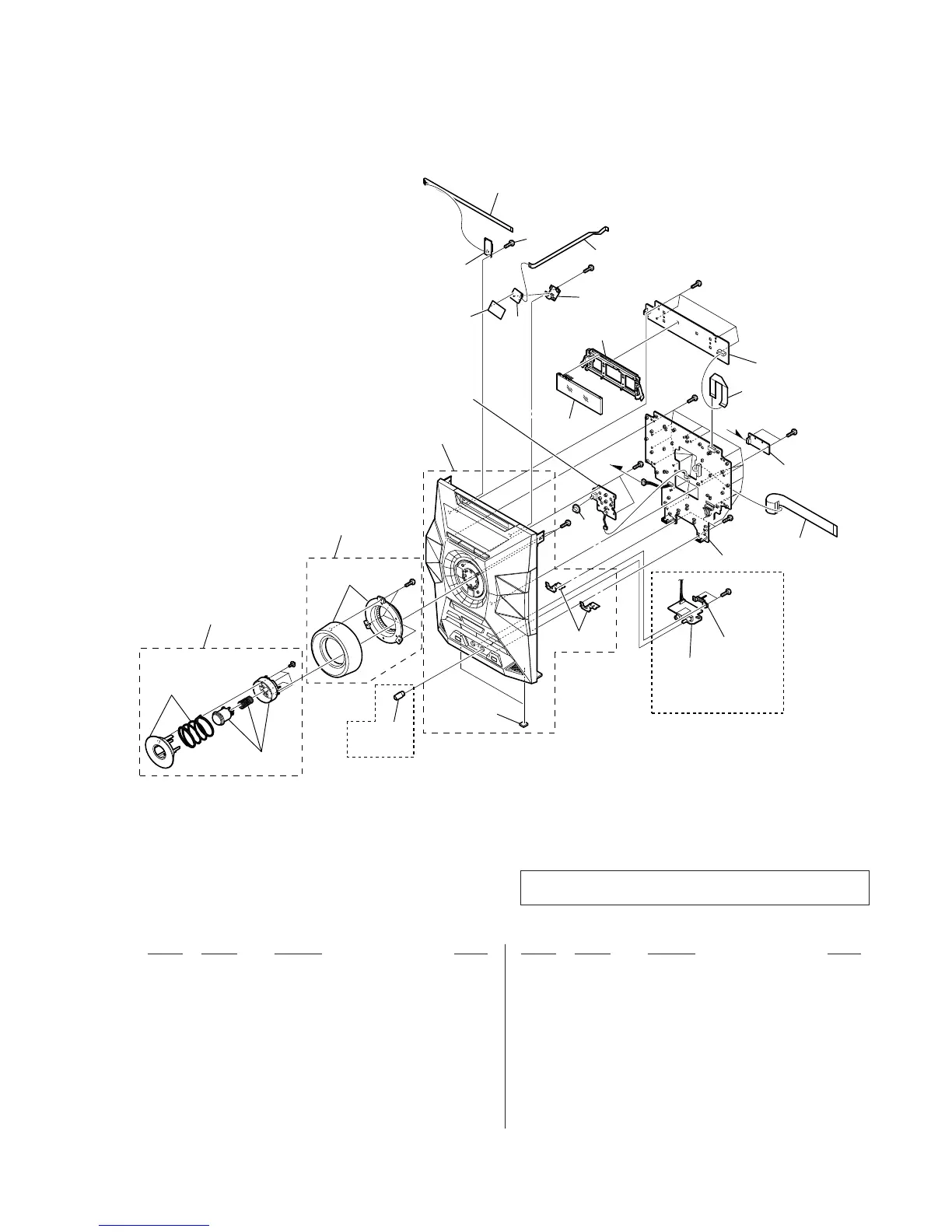

7-3. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 X-2583-417-1 BUTTON, CURSOR ASSY (GPX8)
102 X-2586-206-1 KNOB, VOLUME ASSY
103 4-411-587-01 KNOB (MIC) (GPX88)
104 X-2586-189-2 PANEL, FRONT ASSY (GSX3) (GPX33/
GPX55: E2, E51/GPX77: EXCEPT US)
104 X-2586-423-2 PANEL, FRONT ASSY (GSX5-U2) (US)
104 X-2586-190-2 PANEL, FRONT ASSY (GSX8) (GPX88)
105 4-176-619-01 FOOT, RUBBER
106 A-1907-117-A STR BOARD, COMPLETE
107 1-829-005-21 WIRE (FLAT TYPE) (19 CORE)
108 1-828-964-21 WIRE (FLAT TYPE) (11 CORE)
Note: If wire (fl at type) is replaced, install it after bending it in the
same form as that before replacement.
109 4-416-934-01 GEAR (ENCODER)
110 4-463-997-01 CUSHION, SARANET
111 8-989-470-00 RC-S801/A (WW)
112 1-828-690-51 WIRE (FLAT TYPE) (8 CORE)
113 3-087-053-01 +BVTP2.6 (3CR)
114 1-490-558-31 BLUETOOTH MODULE
115 1-846-744-11 FLEXIBLE FLAT CABLE (14 CORE)
FL2200 1-483-465-11 VACUUM FLUORESCENT DISPLAY
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-000-12 TAPPING +PWH 2X4 TYPE2 N-S
#3
#2
#2
#2
#2
#2
#2
#2
#2
#2
E
E
not supplied
not supplied
(VOLUME board)
not supplied
not
supplied
not supplied
FL2200
not supplied
not supplied
(MIC board)
not supplied
(DISPLAY board)
not supplied
(BASS BAZUCA
board)
not supplied
not supplied
101
102
103
105
104
106
107
108
111
110
109
112
113
114
115
(GPX88)
(GPX88)
