HCD-GT22/GT44/GT55
12

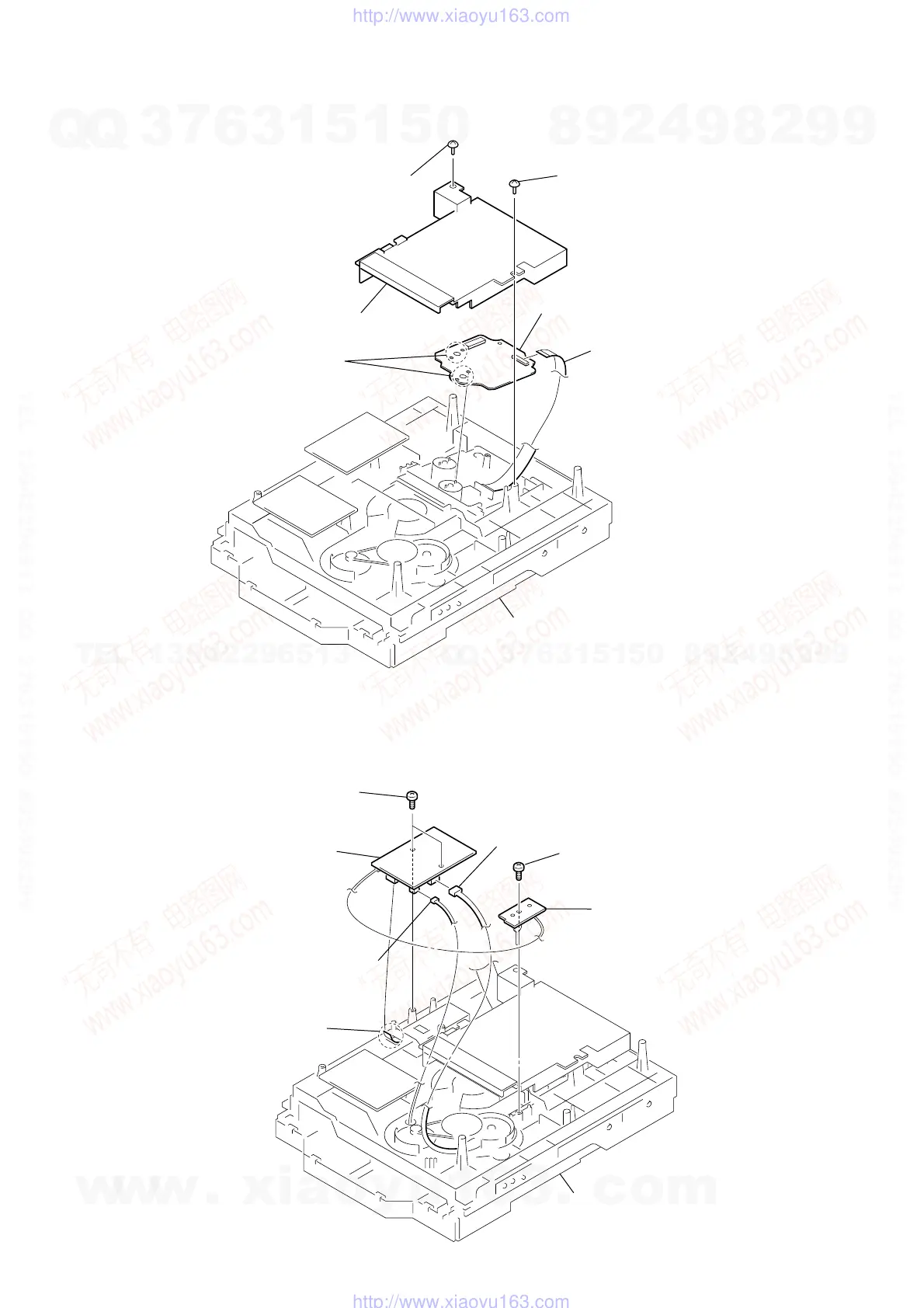

3-10. CD BOARD
6
CD
board
5
Remove soldering from the four points.
4
flexible flat (16 core) cabl
(CN301)
CD machanism deck
(bottom side)
1
screw
(BVTP3
×
8)
2
screw
(BVTP2.6)
3
cover (OP)
3-11. DRIVER BOARD, SW BOARD
3
connector
(CN703)
4
connector
(CN704)
5
DRIVER
board
7
SW board
2
wire (flat type) (5 core)
(CN702)
1
two
screws
(BTTP (M2.6))
6
screw
(BTTP (M2.6))
CD machanism deck
