HCD-GT22/GT44/GT55

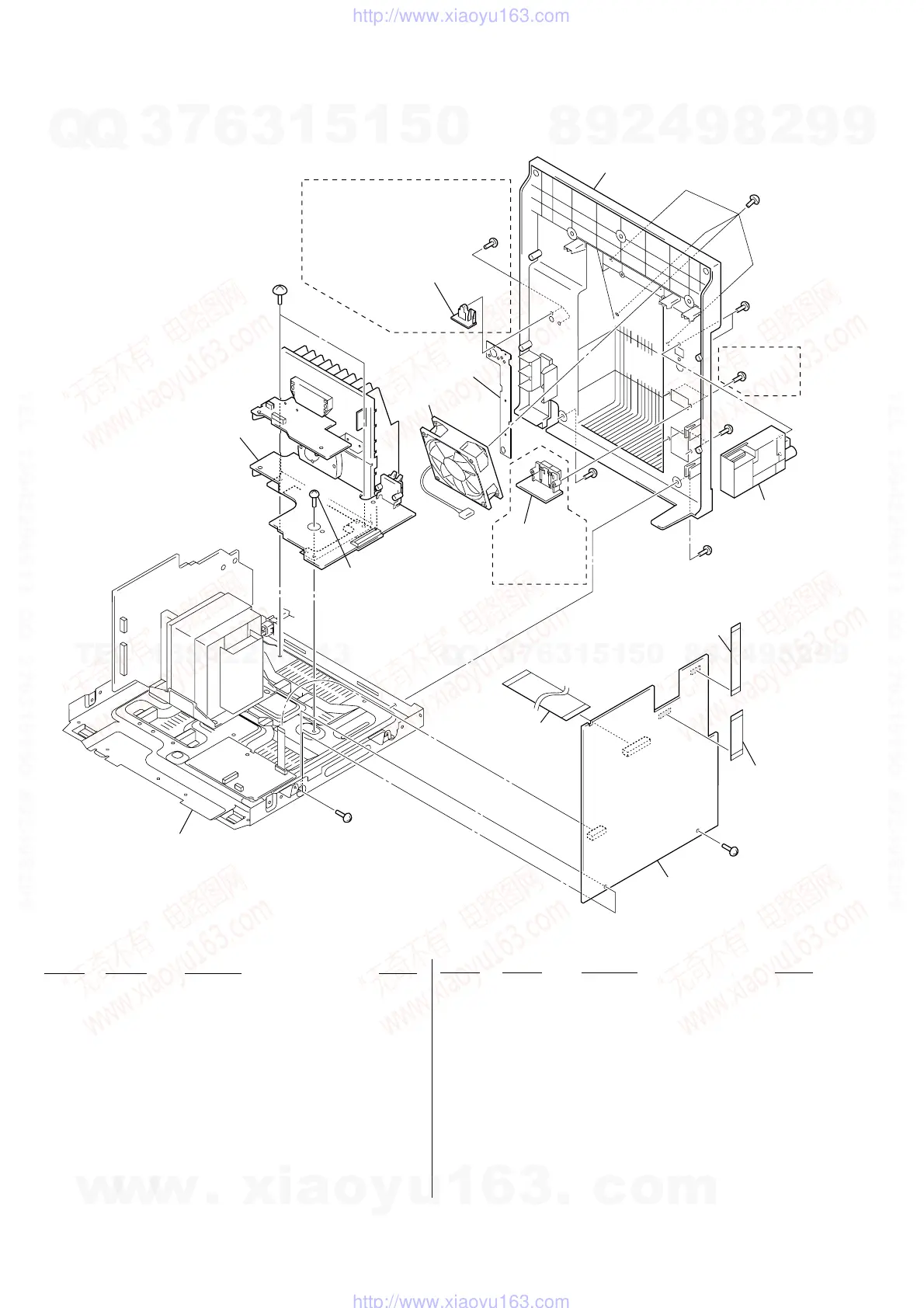

8-6. MAIN BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 A-1234-729-A MAIN BOARD, COMPLETE (GT55: E2)
251 A-1234-731-A MAIN BOARD, COMPLETE (GT44: E2)
251 A-1234-733-A MAIN BOARD, COMPLETE (GT22: E2)
251 A-1271-520-A MAIN BOARD, COMPLETE (GT55: E51, AR)
251 A-1271-523-A MAIN BOARD, COMPLETE (GT55: MX)
251 A-1271-844-A MAIN BOARD, COMPLETE (GT44: E51, AR)
251 A-1271-845-A MAIN BOARD, COMPLETE (GT44: E3, E13)
251 A-1271-846-A MAIN BOARD, COMPLETE (GT44: AUS)
251 A-1271-847-A MAIN BOARD, COMPLETE (GT44: MX)
251 A-1271-850-A MAIN BOARD, COMPLETE (GT22: E51, AR)
251 A-1271-851-A MAIN BOARD, COMPLETE (GT22: E3, E13)
251 A-1271-852-A MAIN BOARD, COMPLETE (GT22: AUS)
251 A-1271-853-A MAIN BOARD, COMPLETE (GT22: MX)
252 3-077-331-01 +BV3 (3-CR)
253 1-693-727-21 TUNER (FM/AM)
254 1-834-335-21 CABLE, FLEXIBLE FLAT (9 CORE)
255 1-831-785-21 CABLE, FLEXIBLE FLAT (13 CORE)
256 1-832-617-21 CABLE, FLEXIBLE FLAT (21 CORE)
M001 1-787-631-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-881-09 SCREW +BVTT 4X8 (S)
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#4 7-685-862-09 SCREW +BVTT 2.6X6 (S)
#1
#1
#2
#3
#3
#3
#3
#4
#3
#3
POWER board,
SUB WOOFER board section
chassis section
M001
253
254
255
251
256
252
not supplied
(SW-SP board)
(GT44/GT55)
(GT44/GT55)
(GT22: E2, E3, E13, E51, MX, AR/
GT44: E2, E3, E13, E51, MX, AR/
GT55)
not supplied
(D-LIGHT SYNC board)
not supplied
