69
HCD-GT22/GT44/GT55
SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
12-892-161-01 PANEL, LOADING (GT22: E2, E51, AR, MX)
12-892-161-11 PANEL, LOADING (GT22: E3, E13, AUS)
12-892-161-21 PANEL, LOADING (GT44: E2, E51, AR, MX)
12-892-161-31 PANEL, LOADING (GT44: E3, E13, AUS)
12-892-161-41 PANEL, LOADING (GT55)
23-363-099-32 SCREW (CASE 3 TP2)
32-599-855-11 CASE (SIDE-L)
42-599-854-11 CASE (TOP)
5 2-675-793-01 COVER (OP)
6 3-087-053-01 +BVTP2.6 (3CR)
7 2-599-856-11 CASE (SIDE-R)
8 1-500-868-11 CORE, FERRITE
9 1-832-647-21 CABLE, FLEXIBLE FLAT (27 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3

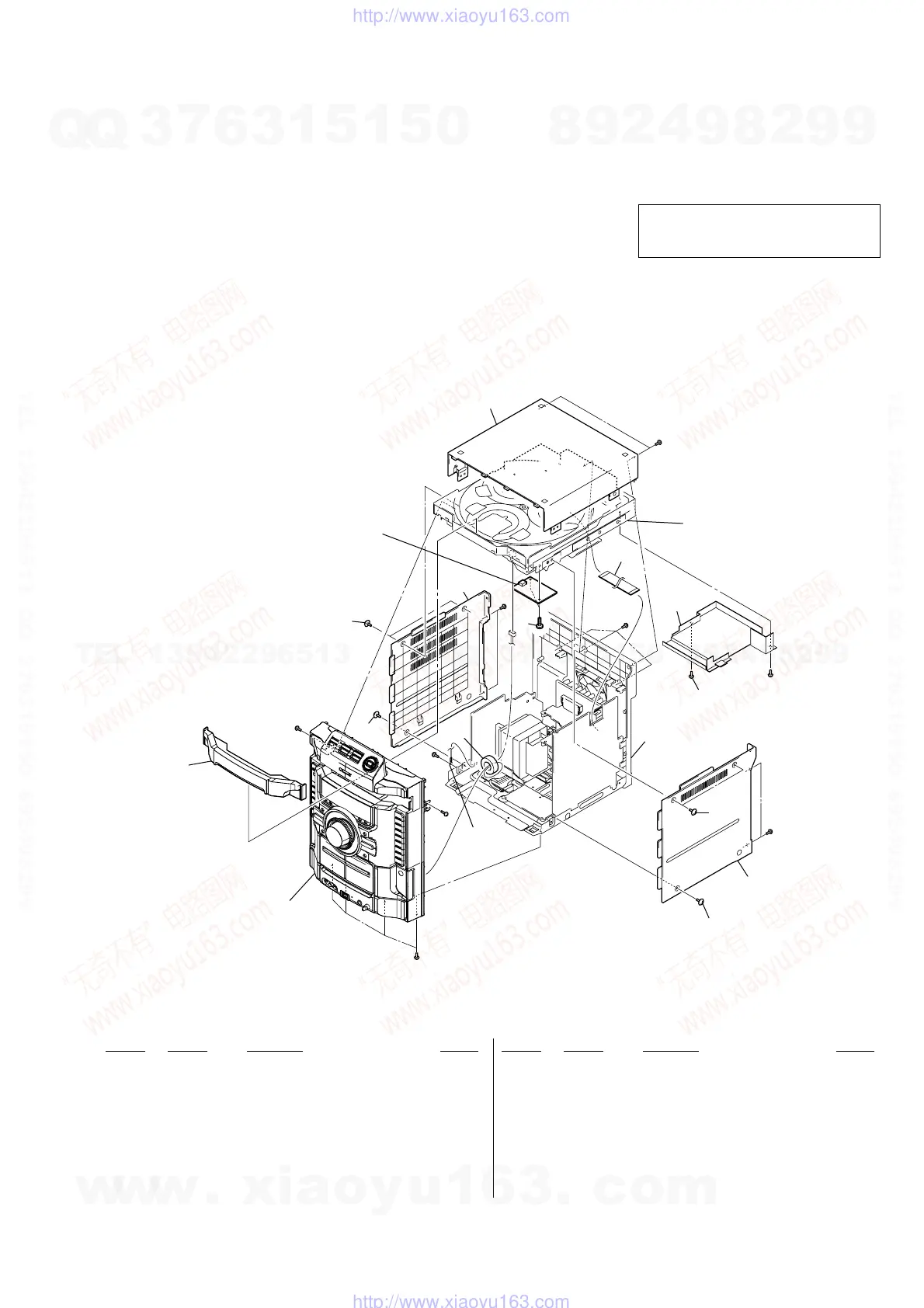

8-1. CASE SECTION
1
#1
#1
#1
#1
#1
KEY TOP board section
MAIN board
section
CD mechanism deck
section
2
2 8
2
2
3
6
4
7
#1
#3
#3
#3
6
5
9
not
supplied
not supplied
(USB board)
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
AUS: Australian model
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
E2 : 120V AC area in E model
E3 : 240V AC area in E model
E13 : 220V – 230V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
