HCD-GT22/GT44/GT55

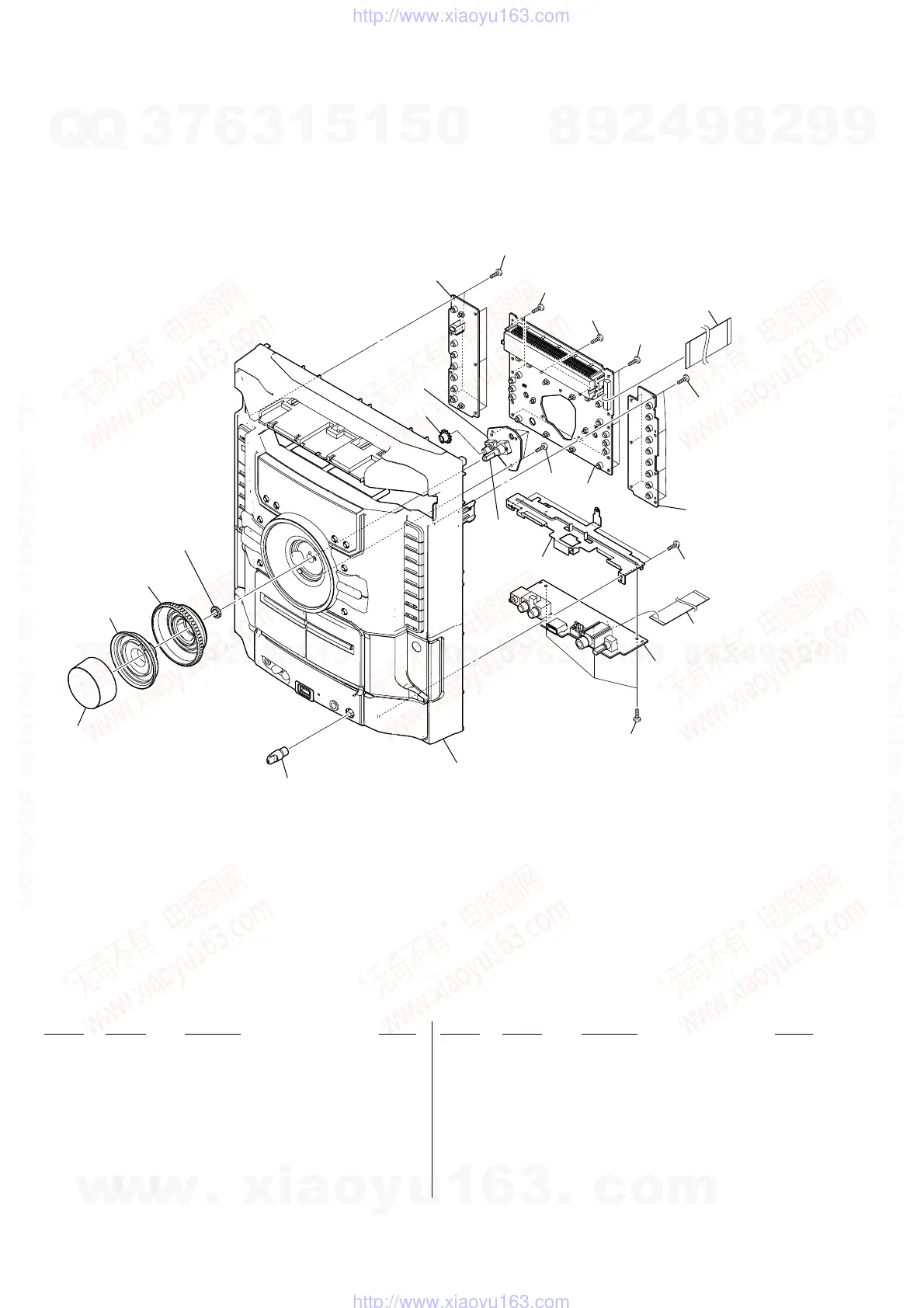

8-4. PANEL BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 2-638-220-11 KNOB (MIC)
152 2-892-152-01 KNOB (VOL)
153 2-892-153-01 PLATE (VOL)
154 2-892-154-01 KNOB (JOG)
155 2-892-155-01 GEAR (JOG)
156 3-087-053-01 +BVTP2.6 (3CR)
157 A-1234-752-A PANEL BOARD, COMPLETE (GT55: E2, E51, AR)
157 A-1234-753-A PANEL BOARD, COMPLETE
(GT44: E2, E3, E13, E51, AR, AUS)
157 A-1234-754-A PANEL BOARD, COMPLETE
(GT22: E2, E3, E13, E51, AR, AUS)
157 A-1283-432-A PANEL BOARD, COMPLETE (GT55: MX)
157 A-1283-433-A PANEL BOARD, COMPLETE (GT44: MX)
157 A-1283-434-A PANEL BOARD, COMPLETE (GT22: MX)
158 1-832-907-21 CABLE, FLEXIBLE FLAT (27 CORE)
160 1-834-336-21 CABLE, FLEXIBLE FLAT (13 CORE)
S651 1-480-109-11 ENCODER, ROTARY (MASTER VOLUME)
supplied with S651
front panel section
not supplied
(KEY LEFT borad)
not supplied
(MIC board)
not supplied
not supplied
(KEY RIGHT board)
not supplied
(VOLUME board)
S651
152
153
154
151
155
156
156
156
156
158
156
156
157
156
156
160
