HCD-GT22/GT44/GT55

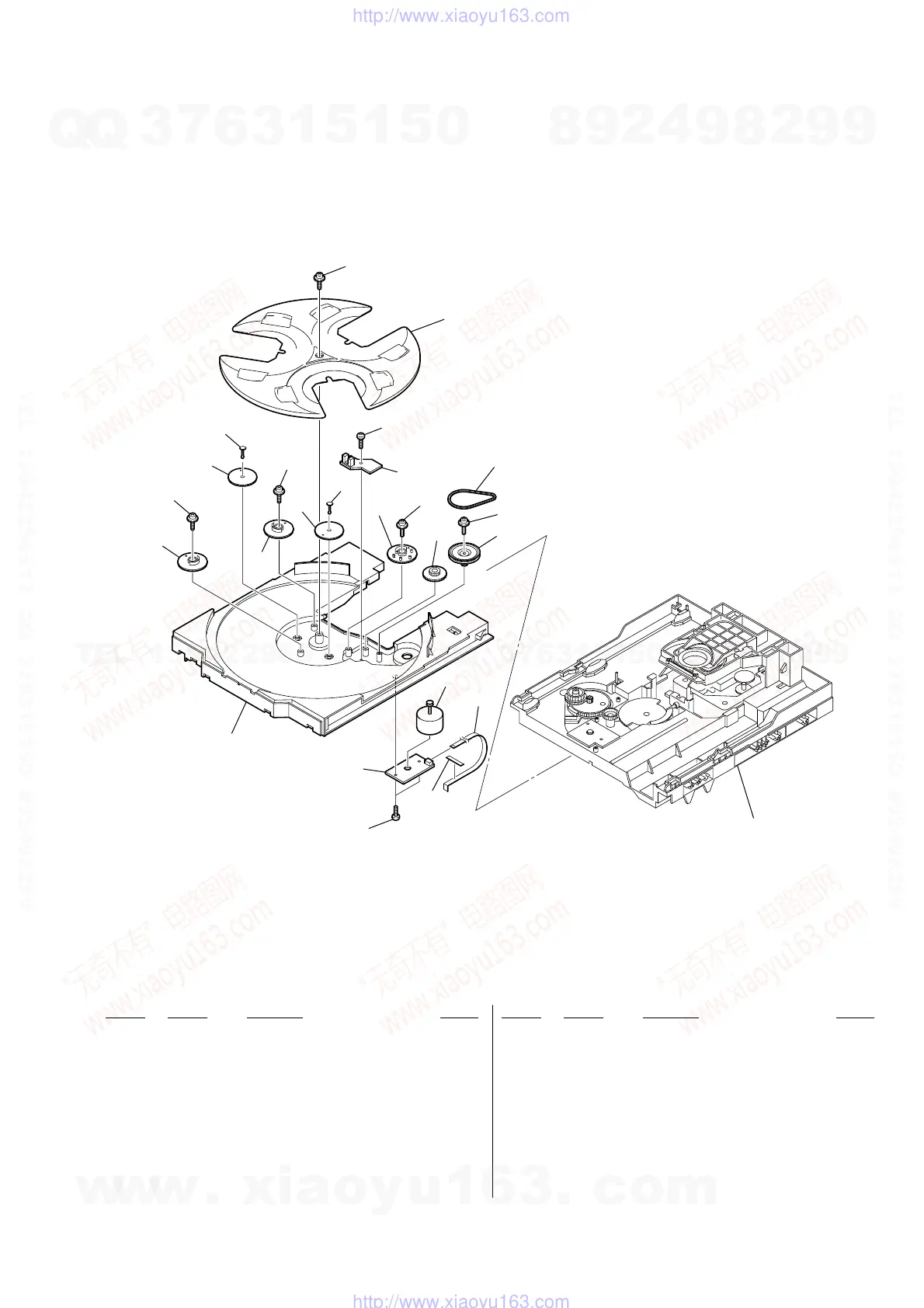

8-9. CD MECHANISM DECK SECTION-1
(CDM74KF-K6BD91UR-WOD)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-218-253-62 SCREW (M2.6), +BTTP
502 1-828-938-51 WIRE (FLAT TYPE) (5 CORE)
503 1-687-134-12 MOTOR (TB) BOARD
504 4-243-815-11 TABLE (LOADING)
505 4-245-571-02 GEAR (STOPPER)
506 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
507 4-245-570-01 GEAR (JOINT)
508 4-245-572-01 BUSHING (GEAR)
509 1-687-132-12 SENSOR BOARD
510 4-243-820-01 GEAR (TABLE)
511 4-243-819-01 GEAR (GENEVA)
512 4-243-816-11 TRAY
513 4-243-823-11 BELT (TABLE)
514 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
515 4-243-821-01 PULLEY (TABLE)
516 3-231-598-01 SHEET (BA)
M741 A-1108-965-A MOTOR ASSY, TABLE
