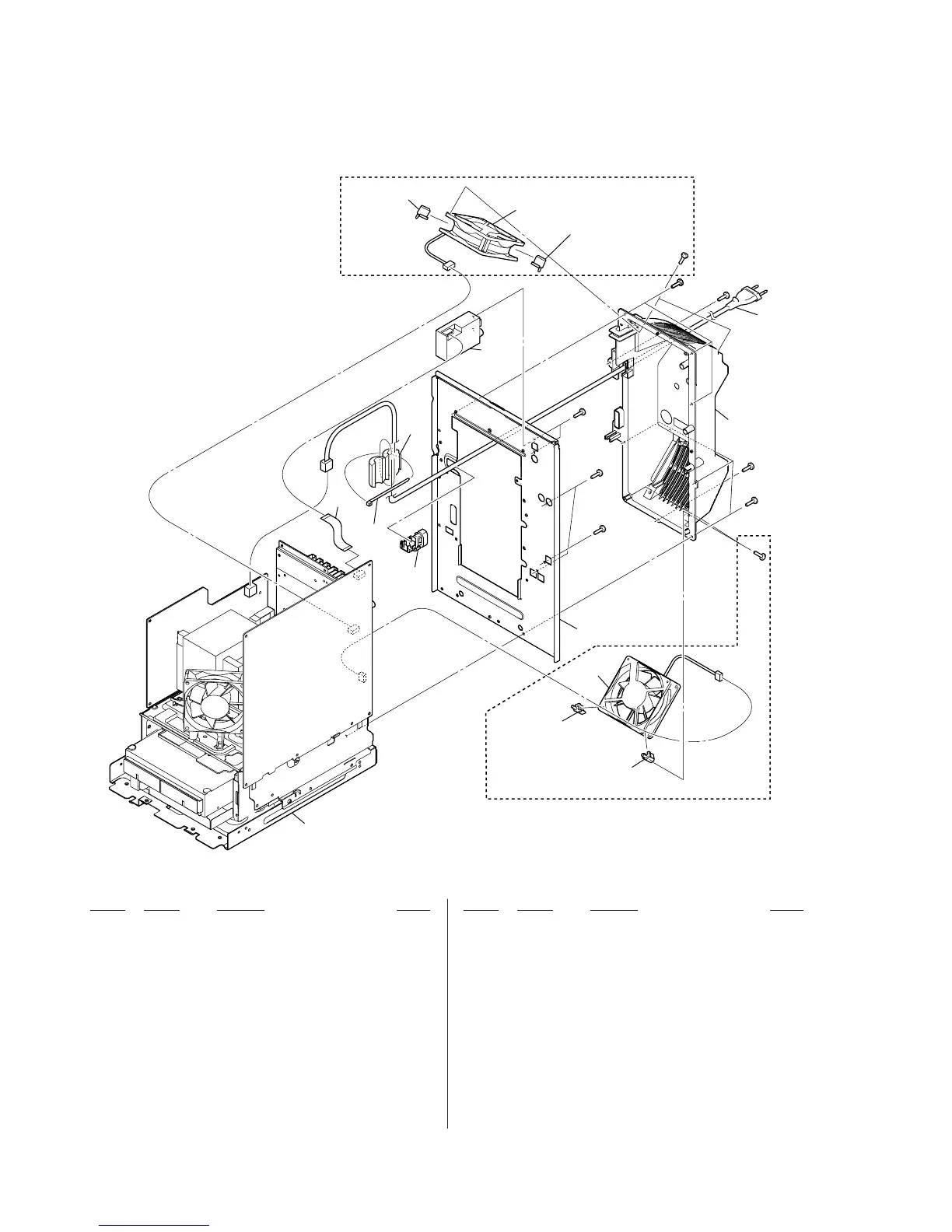

6-5. BACK PANEL SECTION
(EXCEPT GTZ4i: US)
(GTZ4i: US)
not supplied
not supplied
M101
MAIN board section
not supplied
204
203
201
202
205
206
207
#3
#1
#1
#1
#1
#1
#1
#4
not supplied
not supplied
M101
#3
201 1-828-952-11 WIRE (FLAT TYPE) (9 CORE)
(EXCEPT GTZ4i: AEP)
201 1-828-962-11 WIRE (FLAT TYPE) (11 CORE) (GTZ4i: AEP)
202 1-457-369-12 CORE, FERRITE
203 3-655-653-11 BAND (TAITON), BINDING
204 3-703-244-00 CORD BUSH (2104) (EXCEPT MX)
204 3-703-571-11 CORD BUSH (4516) (MX)
205 1-693-759-11 TUNER (FM/AM) (GTZ4i: AEP)
205 1-693-762-11 TUNER (FM/AM) (GTZ4i: US)
205 1-693-764-22 TUNER (FM/AM) (GTZ4/GTZ4i: AUS/GTZ5)
206 4-124-216-03 COVER (FAN) (GTZ4: E2, E51/GTZ5: E2, E51)
206 4-124-216-12 COVER (FAN)
(GTZ4: AR/GTZ4i: AEP, AUS/GTZ5: MX, AR)
206 4-124-216-21 COVER (FAN) (GTZ4i: US)
0 207 1-777-071-83 CORD, POWER (AEP, E2, E51)
0 207 1-829-259-11 CORD, POWER (AUS)
0 207 1-829-387-11 CORD, POWER (AR)
0 207 1-829-627-11 POWER-SUPPLY CORD (MX)
0 207 1-834-270-11 CORD, POWER (US)
M101 1-787-344-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#4 7-685-871-01 SCREW +BVTT 3X6 (S)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
