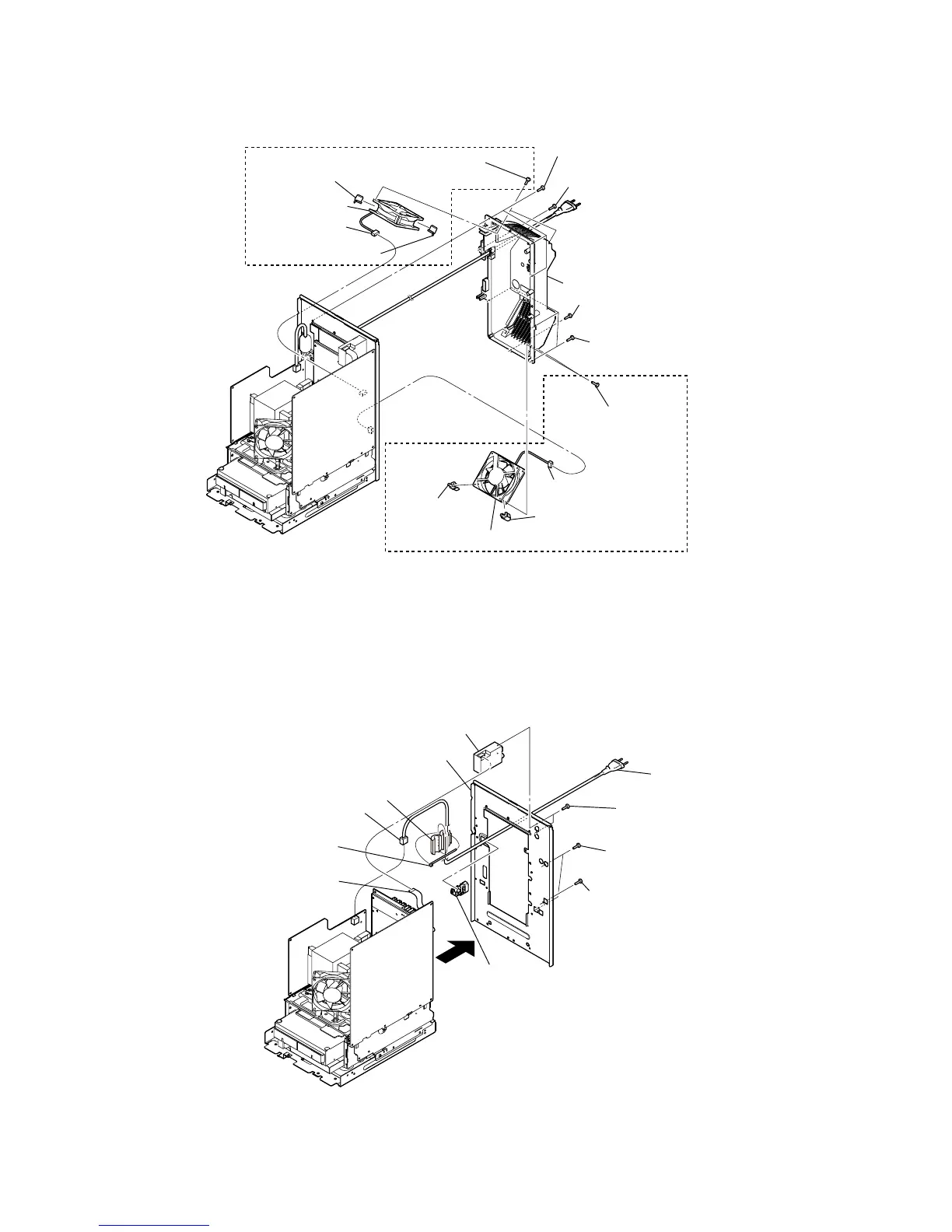

2-5. DC FAN (M101)
2-6. BACK PANEL
3 three screws
(BVTP3 u 8)
4 screw
(BVTP3 u 8)
7 cover (fan)
5 screw
(BVTP3 u 8)
1 fan connector
(CN693)
8 screw plug (fan)
8 screw plug (fan)
9 DC fan (M/01)
6 two screws
(BVTP3 u 12)
2 three screws
(BVTP3 u 8)
(EXCEPT GTZ4i: US)
(GTZ4i: US)
6 two screws
(BVTP3 u 12)
1 fan connector
(CN690)
8 screw plug (fan)
8 screw plug (fan)
9 DC fan (M/01)
1 wire (flat type)
(9 core) (Except GTZ4i: AEP)
(11core) (GTZ4i: AEP)
8 binding band (taiton)
2 power cord connector
(CN901)
9 clamp filter
(ferrite core)
qs back panel
7 tuner (FM/AM)
6 two screws
(BVTT3 u 6)
3 two screws
(BVTP3 u 8)
qa power cord
4 screw
(BVTP3 u 8)
0 cord bush
5
