Sony HCD-S20 Service Manual

HCD-S20
11

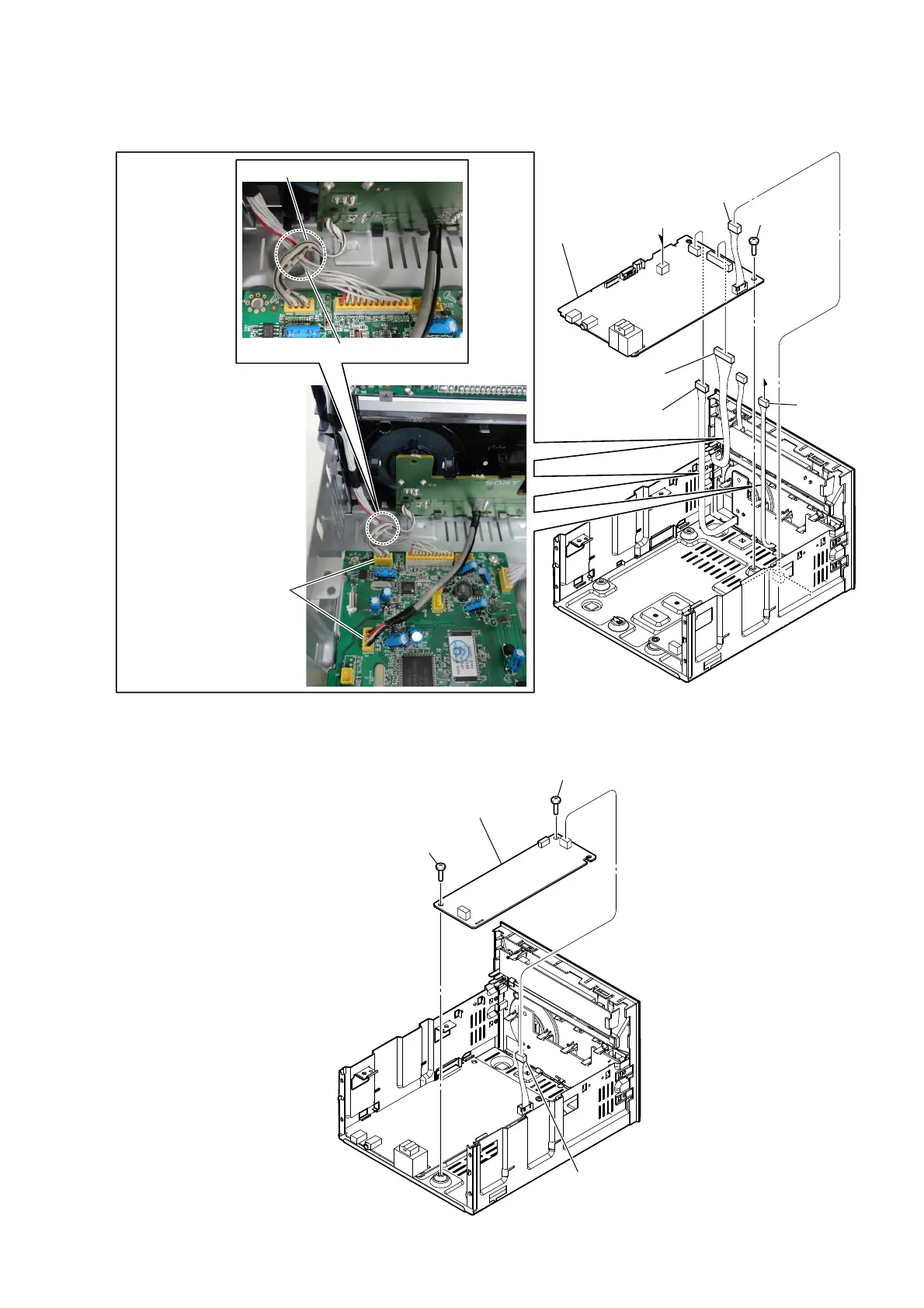

2-9. MAIN BOARD
2-10. POWER BOARD
4 connector
(XP12)
6 MAIN board
5 screw (3)
A
A
1 connector
(CON2)
2 connector
(XP6)
3 connector
(XP9)
Wire from USB board is upper.
Wire from VFD board is lower.
Note:
These connectors have the
same number of pins.
When connecting, be careful
not to mistake.
– Rear view –
– Rear view –
 :ire VeWWiQJ
3 POWER board
1 connector
(CON2)
2 screw (3)
2 screw (3)
– Rear view –
