Sony HCD-SBT100 Service Manual

72
HCD-SBT100/SBT100B/SBT300W/SBT300WB

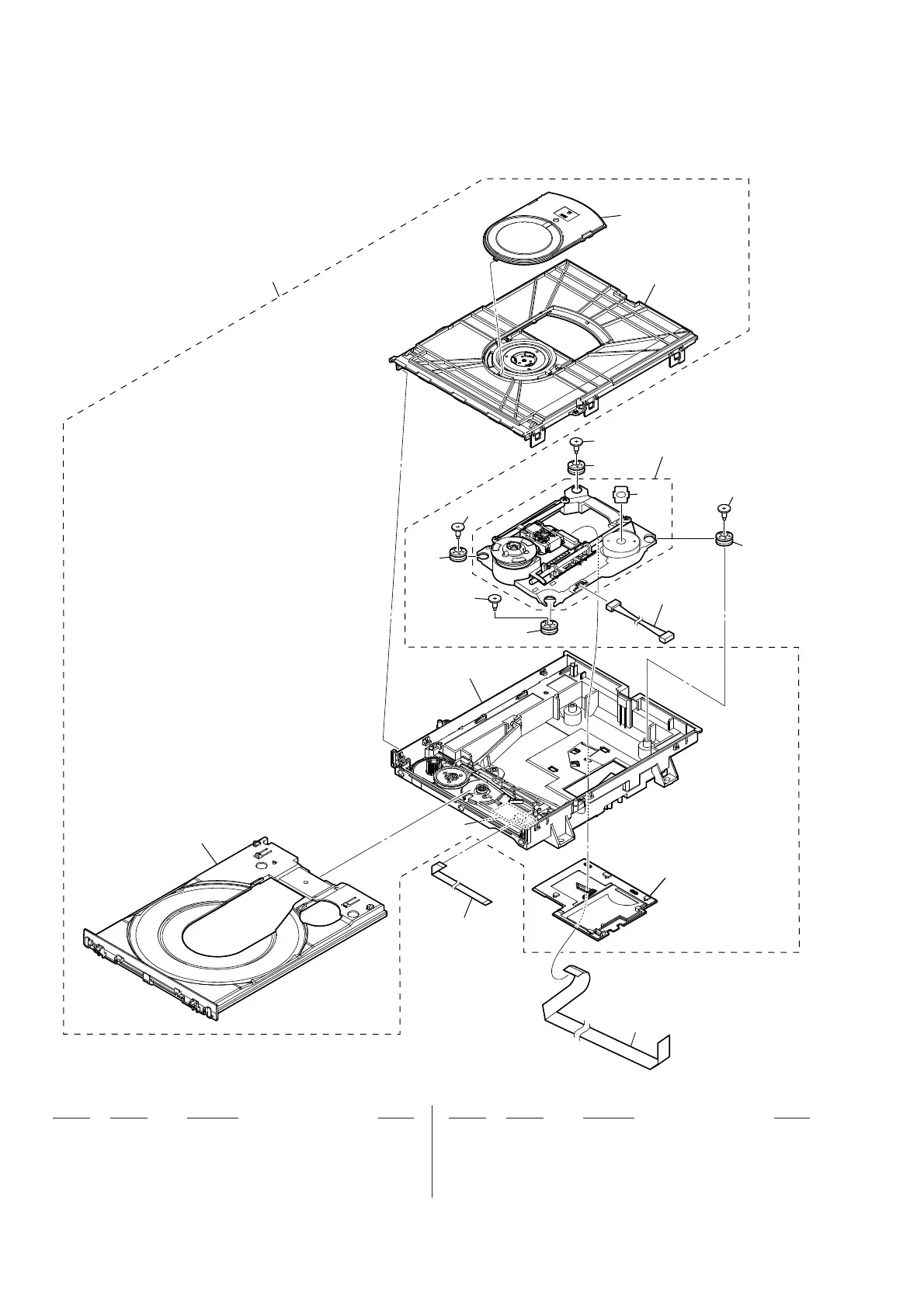

6-8. CD MECHANISM DECK SECTION
(CDM90-DVBU202)
351 2-634-618-21 INSULATOR
352 3-087-599-01 INSULATOR SCREW
353 4-418-987-01 SHEET (S76)
CDM1 A-1937-669-A CDM90 ASSY (Including MS-476 board)
FFC1 1-846-757-11 FLEXIBLE FLAT CABLE (24P)
FFC2 9-885-188-62 FY13 FFC (1.0 mm_5P_CDM)
0 OP1 A-1940-584-A OPTICAL PICK-UP (CMS-S76RFS7G)
(for SERVICE) (Including sled motor, spindle motor)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
FFC2
MS-476
board
CDM1
OP1
FFC1
351
351
351
351
352
353
352
352
352
not supplied
not supplied
not supplied
not supplied
not supplied
