HCD-SPZ50/SPZ70
SECTION 8
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-681-452-01 FOOT (CUSHION)
2 2-659-060-01 KNOB (JOG) (SPZ70)
2 2-659-060-11 KNOB (JOG) (SPZ50)
3 2-659-059-01 KNOB (VOL)
4 2-659-057-01 KNOB (BAS) (SPZ70)
5 2-659-058-01 KNOB (TRE) (SPZ70)
6 3-363-099-11 SCREW (CASE 3 TP2)
7 2-659-063-02 CASE
8 3-252-829-01 SCREW (B3), (+) BV TAPPING
9 A-1166-883-A MAIN BOARD, COMPLETE (SPZ70: AEP, UK)
9 A-1166-993-A MAIN BOARD, COMPLETE (SPZ70: RU)
9 A-1167-004-A MAIN BOARD, COMPLETE (SPZ50: AEP, UK)
9 A-1167-017-A MAIN BOARD, COMPLETE (SPZ50: RU)
9 A-1171-390-A MAIN BOARD, COMPLETE
(SPZ70: E2, E51, MX, AR)
9 A-1171-419-A MAIN BOARD, COMPLETE
(SPZ50: SP, KR, AUS)
9 A-1251-290-A MAIN BOARD, COMPLETE (SPZ70: KR)
10 1-831-938-21 CABLE, FLEXIBLE FLAT (13 CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3

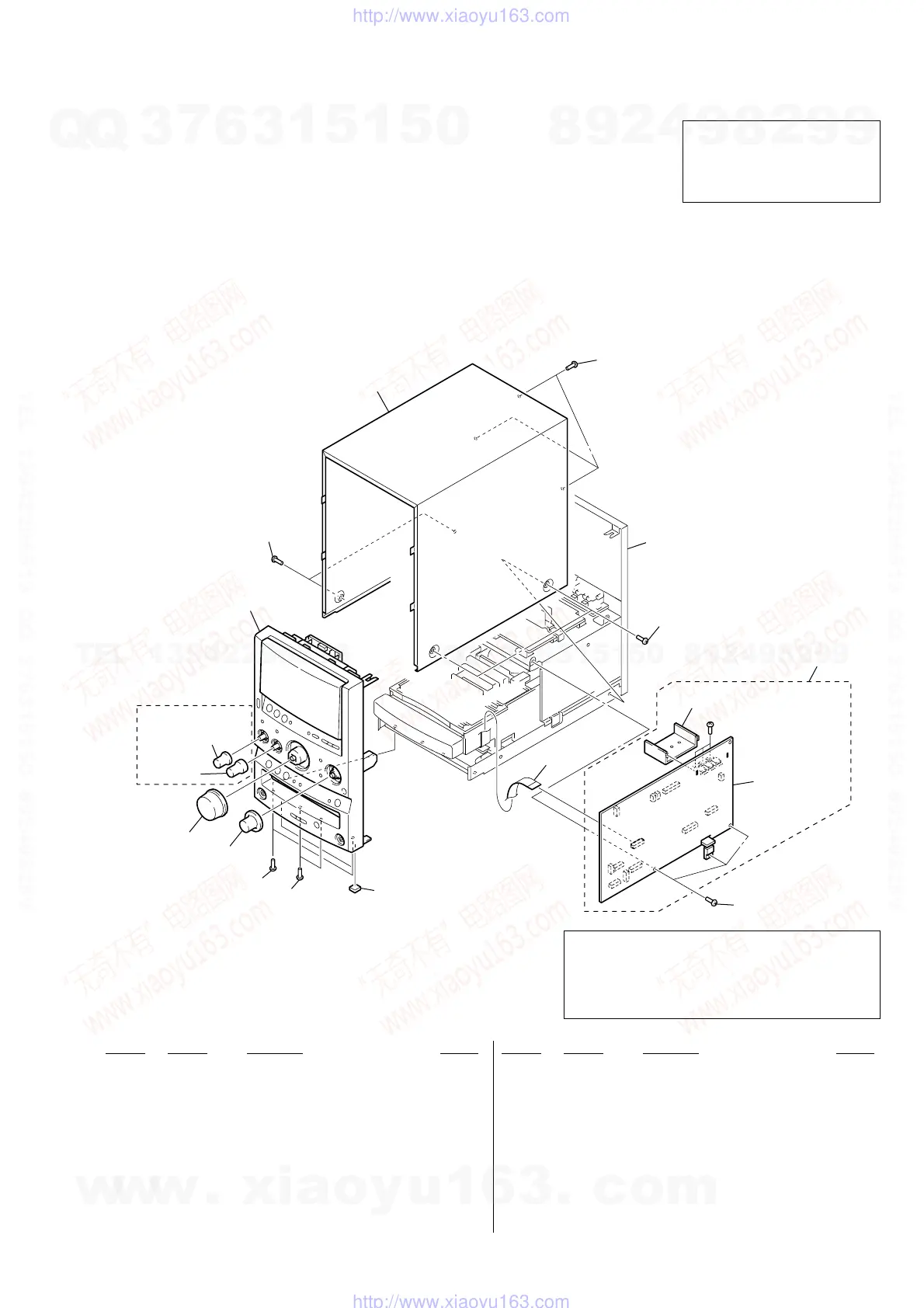

8-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
AR : Argentina model
AUS: Australian model
E2 : 120V AC area in E model
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
8
front panel section
CD section
(SPZ70)
not supplied
MAIN board
#1
10
8
2
3
6
7
8
6
9
8
4
5
Ver. 1.3
E51 : Chilean and Peruvian models
KR : Korean model
MX : Mexican model
RU : Russian model
SP : Singapore model
Note: Refer to the Servicing Notes “NOTE OF
REPLACING MAIN BOARD, IC1301 (MAIN
BOARD), C25 (POWER BOARD) OR POWER
BOARD” (page 4), when you exchange the MAIN
board.
