HCD-SPZ50/SPZ70

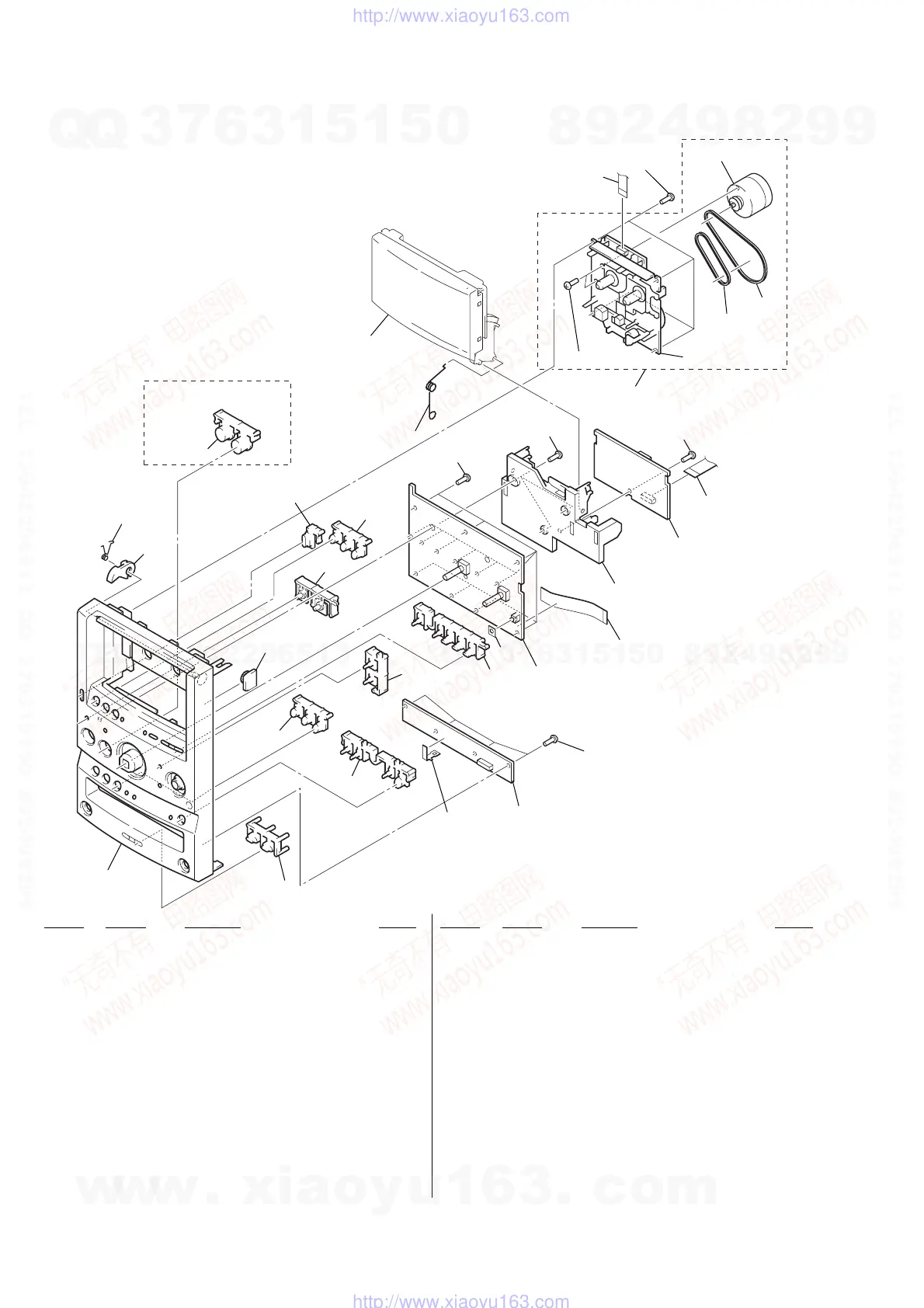

8-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 2-659-048-01 BUTTON (REC)
52 X-2109-480-1 PANEL (SERVICE) ASSY, FRONT (SPZ70)
52 X-2109-481-1 PANEL (SERVICE) ASSY, FRONT (SPZ50)
53 X-2109-287-1 BUTTON (DSGX) (SPZ50) ASSY (SPZ50)
53 X-2109-289-1 BUTTON (DSGX) (SPZ70) ASSY (SPZ70)
54 4-231-825-01 CAM (B), HEART
55 4-231-841-01 SPRING (HEART CAM-B)
56 2-659-068-01 SPRING (CASSETTE)
57 2-659-041-01 BUTTON (POWER)
58 X-2109-479-1 BUTTON (CAP) ASSY (SPZ70)
58 2-666-034-01 BUTTON (DISC) (SPZ50)
59 2-659-045-01 BUTTON (BAS/TRE) (SPZ50)
60 1-832-430-21 CABLE, FLEXIBLE FLAT (7 CORE)
61 4-951-620-01 SCREW (2.6X8), +BVTP
62 1-797-503-12 DECK, MECHANICAL (CFP42601)
63 1-831-928-21 CABLE, FLEXIBLE FLAT (11 CORE)
64 A-1166-888-A TC BOARD, COMPLETE
65 2-659-040-01 BASE (TC HOLDER)
66 A-1166-880-A PANEL BOARD, COMPLETE (SPZ70)
66 A-1167-002-A PANEL BOARD, COMPLETE (SPZ50)
67 2-659-043-01 BUTTON (FUNCTION)
68 2-659-046-01 BUTTON (DIRECTION)
69 4-244-530-01 DAMPER
71 2-659-047-01 BUTTON (PLAY MODE)
72 A-1166-881-A HP A-IN BOARD, COMPLETE
73 1-831-996-21 CABLE, FLEXIBLE FLAT (11 CORE) (SPZ50)
73 1-832-431-21 CABLE, FLEXIBLE FLAT (17 CORE) (SPZ70)
74 2-681-451-01 SHEET (RM)
75 2-683-561-01 BELT (SF)
76 2-685-676-01 BELT (FR)
