57
HCD-SPZ50/SPZ70
203
205
207
208
203
204
206
214
215
211
210
209
203
202
201
203
203
not supplied
#1
not supplied
not supplied
not supplied
not supplied
not supplied
POWER board
F1
212
213
213
213
#1

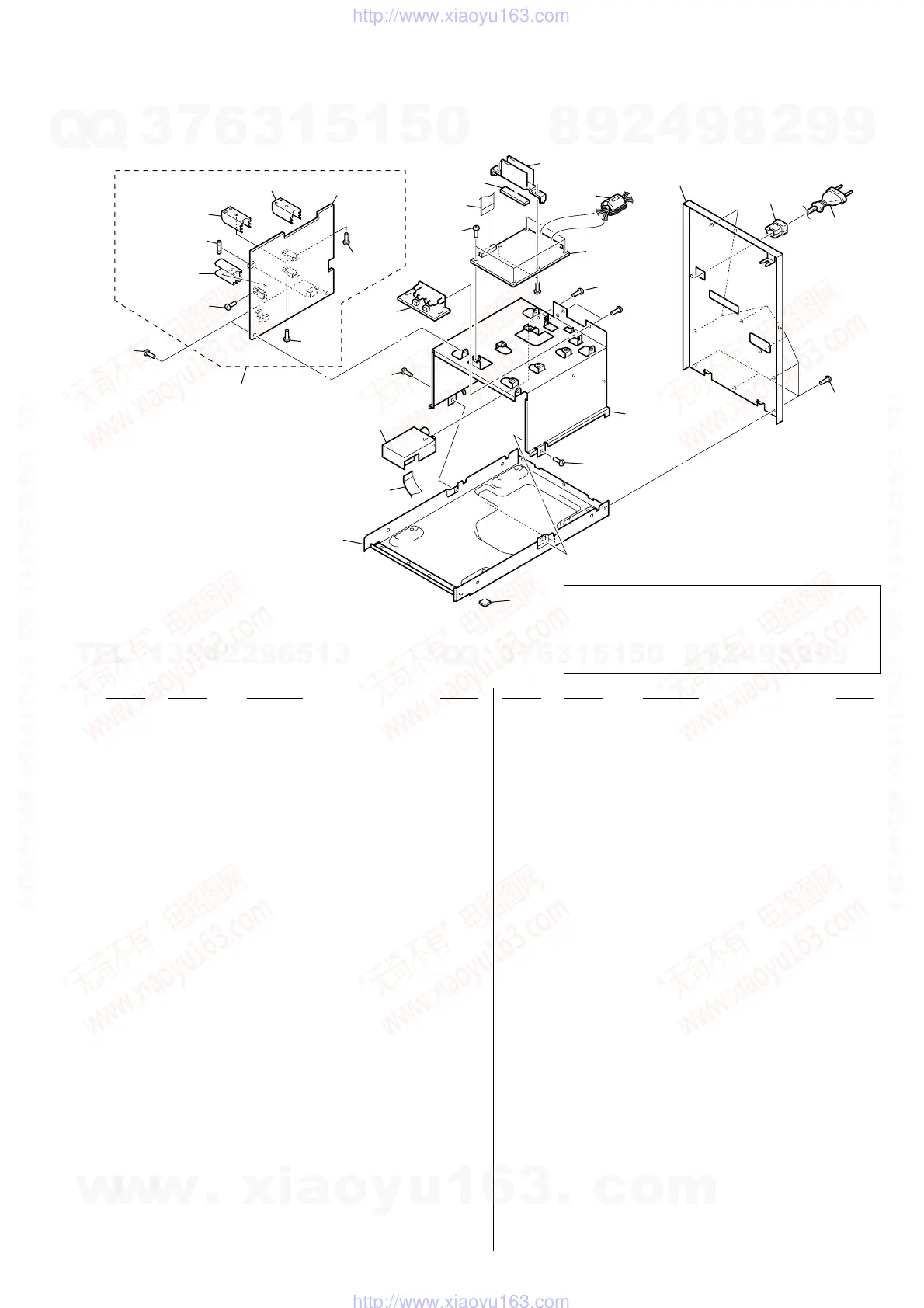

8-5. POWER SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-832-434-21 CABLE, FLEXIBLE FLAT (11 CORE)
(SPZ50: AEP, UK/SPZ70: AEP, UK)
201 1-832-435-21 CABLE, FLEXIBLE FLAT (9 CORE) (SPZ50: RU,
SP, KR, AUS/SPZ70: RU, E2, E51, MX, AR, KR)
202 1-693-710-11 TUNER (FM/AM)
(SPZ50: RU, KR/SPZ70: RU, KR)
202 1-693-711-11 TUNER (FM/AM)
(SPZ50: SP, AUS/SPZ70: E2, E51, MX, AR)
202 1-693-712-11 TUNER (FM/AM)
(SPZ50: AEP, UK/SPZ70: AEP, UK)
203 3-252-829-01 SCREW (B3), (+) BV TAPPING
204 A-1166-886-A SP BOARD, COMPLETE
205 A-1166-887-A POWER BOARD, COMPLETE (SPZ70: AR, KR)
205 A-1166-887-A POWER BOARD, COMPLETE (TYPE B, TYPE C)
(SPZ70: AEP, UK, RU)
205 A-1167-006-A POWER BOARD, COMPLETE
(SPZ50: SP, KR, AUS)
205 A-1167-006-A POWER BOARD, COMPLETE (TYPE B, TYPE C)
(SPZ50: AEP, UK, RU)
205 A-1171-392-A POWER BOARD, COMPLETE (SPZ70: E2, E51)
205 A-1173-190-A POWER BOARD, COMPLETE (SPZ70: MX)
205 A-1191-115-A POWER BOARD, COMPLETE (TYPE A)
(SPZ70: AEP, UK, RU)
205 A-1191-116-A POWER BOARD, COMPLETE (TYPE A)
(SPZ50: AEP, UK, RU)
206 A-1166-890-A AMP BOARD, COMPLETE (SPZ70)
206 A-1167-008-A AMP BOARD, COMPLETE (SPZ50)
207 2-514-691-01 SHEET, RADIATION
208 1-831-951-21 CABLE, FLEXIBLE FLAT (19 CORE)
0 209 1-769-079-41 CORD, POWER (SPZ50: KR/SPZ70: KR)
0 209 1-769-744-81 CORD, POWER (SPZ50: UK/SPZ70: UK)
0 209 1-775-790-71 CORD, POWER (SPZ50: AUS)
0 209 1-777-071-83 CORD, POWER (SPZ50: AEP/SPZ70: AEP)
0 209 1-827-226-31 CORD, POWER (SPZ70: MX)
0 209 1-829-387-11 CORD, POWER (SPZ70: AR)
0 209 1-830-188-11 CORD, POWER
(SPZ50: RU, SP/SPZ70: RU, E2, E51)
210 3-703-244-00 BUSHING (2104), CORD
(SPZ50/SPZ70: AEP, UK, RU, E2, E51, AR, KR)
* 210 3-703-571-12 BUSHING (S) (4516), CORD (SPZ70: MX)
211 2-659-064-01 PANEL, BACK (SPZ70: AEP, UK)
211 2-659-064-11 PANEL, BACK (SPZ70: E2)
211 2-659-064-21 PANEL, BACK (SPZ70: MX)
211 2-659-064-31 PANEL, BACK (SPZ70: E51)
211 2-659-064-41 PANEL, BACK (SPZ70: AR)
211 2-659-064-61 PANEL, BACK (SPZ70: RU)
211 2-659-064-71 PANEL, BACK (SPZ70: KR)
211 2-670-256-01 PANEL, BACK (SPZ50: AEP, UK)
211 2-670-256-11 PANEL, BACK (SPZ50: SP)
211 2-670-256-21 PANEL, BACK (SPZ50: AUS)
211 2-670-256-31 PANEL, BACK (SPZ50: KR)
211 2-670-256-41 PANEL, BACK (SPZ50: RU)
212 4-233-372-02 FOOT (FELT)
213 3-254-142-01 SCREW (B3), (+) BV TAPPING
(SPZ50: AEP, UK, RU/SPZ70: AEP, UK, RU)
213 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
(SPZ50: SP, KR, AUS/SPZ70: E2, E51, MX, AR)
214 1-400-932-11 FILTER, CLAMP
215 4-951-620-01 SCREW (2.6X8), +BVTP
0 F1 1-576-232-51 FUSE (5A/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ver. 1.3
Note: Refer to the Servicing Notes “NOTE OF
REPLACING MAIN BOARD, IC1301 (MAIN
BOARD), C25 (POWER BOARD) OR POWER
BOARD” (page 4), when you exchange the
POWER board.
