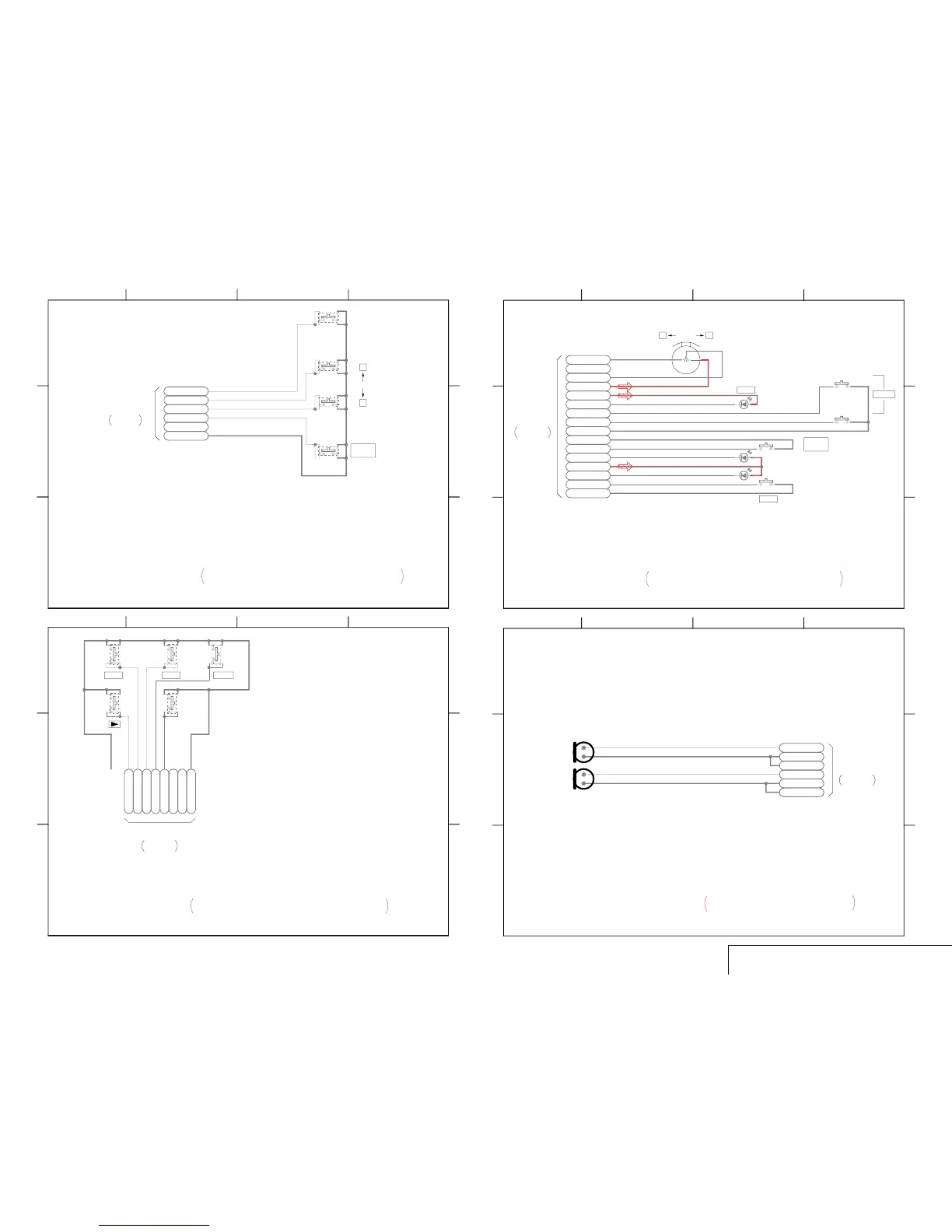

Sony HDR-CX100 User Manual

4-32
HDR-CX100/CX100E/CX105E/CX106E/CX120_L2
SB30300, SK30700, PS30700, MICROPHONE UNIT
CONTROL SWITCH BLOCK (SB30300) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
05
A
3
C
2
B
1
B
A
C
4
S004
S003
S001
S002
REG_GND
2ND_ZOOM(W)
HOME_SW
2ND_S/S_SW
N.C.
2ND_ZOOM(T)
/STOP
START
(ZOOM)
T
W
(HOME)
6
5
4
3
2
1
CONTROL SWITCH BLOCK
(SB30300)
Page 4-24
of Level 2
CN6103
PD-384
CONTROL SWITCH BLOCK (SK30700) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
05
A
3
C
2
B
1
B
A
C
4
S002
S004
S001
S003 S005
EASY_SW
(DISC BURN)
8PIN DISP_SW PLAY_SW N.C. XPOWER_TACT_SW REG_GND DISC_BURN_SW 1PIN N.C.
EASY DISP POWER
CONTROL SWITCH BLOCK
(SK30700)
of Level 2
CK-214
Page 4-23
CN5802
CONTROL SWITCH BLOCK (PS30700) is replaced as block,
so that PRINTED WIRING BOARD is omitted.
05
A
3
C
2
B
1
B
A
C
4
S1002
S1003
S1004
S1001
D1001
SML-512WWT86
D1002
SML-412MWT86
D1003
SML-412MWT86
RV1001
(PHOTO FREEZE)
PHOTO_REC
REG_GND
XMODE_SW
XCAM_LED
REG_GND
START/STOP
D_2.8V
REG_GND
XCHARGE_LED
XPHOTO_LED
PHOTO_FREEZE
ZOOM_VR_AD
REG_GND
N.C.
MODE_LED_VDD
CHARGE_LED_VDD
1PIN
16PIN
(PHOTO REC)
CHG
/STOP
START
MODE
(STILL)
(MOVIE)
(ZOOM)
T
W
CONTROL SWITCH BLOCK
(PS30700)
JK-386
of Level 2
(1/2)
Page 4-25
CN7202
MICROPHONE UNIT is replaced as block,
so that PRINTED WIRING BOARD is omitted.
05
A
3
C
2
B
1
B
A
C
4
INT_MIC_R
INT_MIC_GND
INT_MIC_GND
INT_MIC_L
INT_MIC_GND
INT_MIC_GND
1PIN
6PIN
(R)
(L)
VC-559
of Level 3
(17/17)
Page 4-22
CN1002
MICROPHONE UNIT
