5-5
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
HDR-CX100/CX100E/CX105E/CX106E/CX120_L2
PD-384
#2
#12
151
153
155
156
157
158
159
160
161
162
163
164
165
166
152
154
(Note)
LCD901
ns
A
B
A
B
Ref. No. Part No. Description Ref. No. Part No. Description
151 4-130-559-01 COVER (C), HINGE (SILVER)
151 4-130-559-11 COVER (C), HINGE (BLACK)
151 4-130-559-21 COVER (C), HINGE (RED)
152 X-2342-900-1 HINGE ASSY (303)
153 1-877-926-11 FP-1069 FLEXIBLE BOARD
154 1-471-504-11 MAGNET (ND5X3.5X2.4-B) (Note)
155 4-131-817-01 COVER (M), HINGE
156 4-131-813-01 CABINET (M), P
157 4-131-814-01 PLATE, LCD GROUND
158 1-487-053-11 SWITCH BLOCK, CONTROL (SB30300)
159 2-694-516-01 FRONT FRAME (2.7)
160 2-694-512-01 PRISM SHEET V (2.7)
161 2-694-513-01 PRISM SHEET H (2.7)
162 2-694-514-01 DIFFUSION SHEET (2.7)
163 2-666-801-01 LIGHT GUIDE (2.7)
164 2-694-515-01 REFLECTION SHEET (2.7)
165 A-1650-374-A PD-384 BOARD, COMPLETE
166 X-2345-243-1 CABINET (C) ASSY (S), P
(CX100: SILVER/CX100E: SILVER)

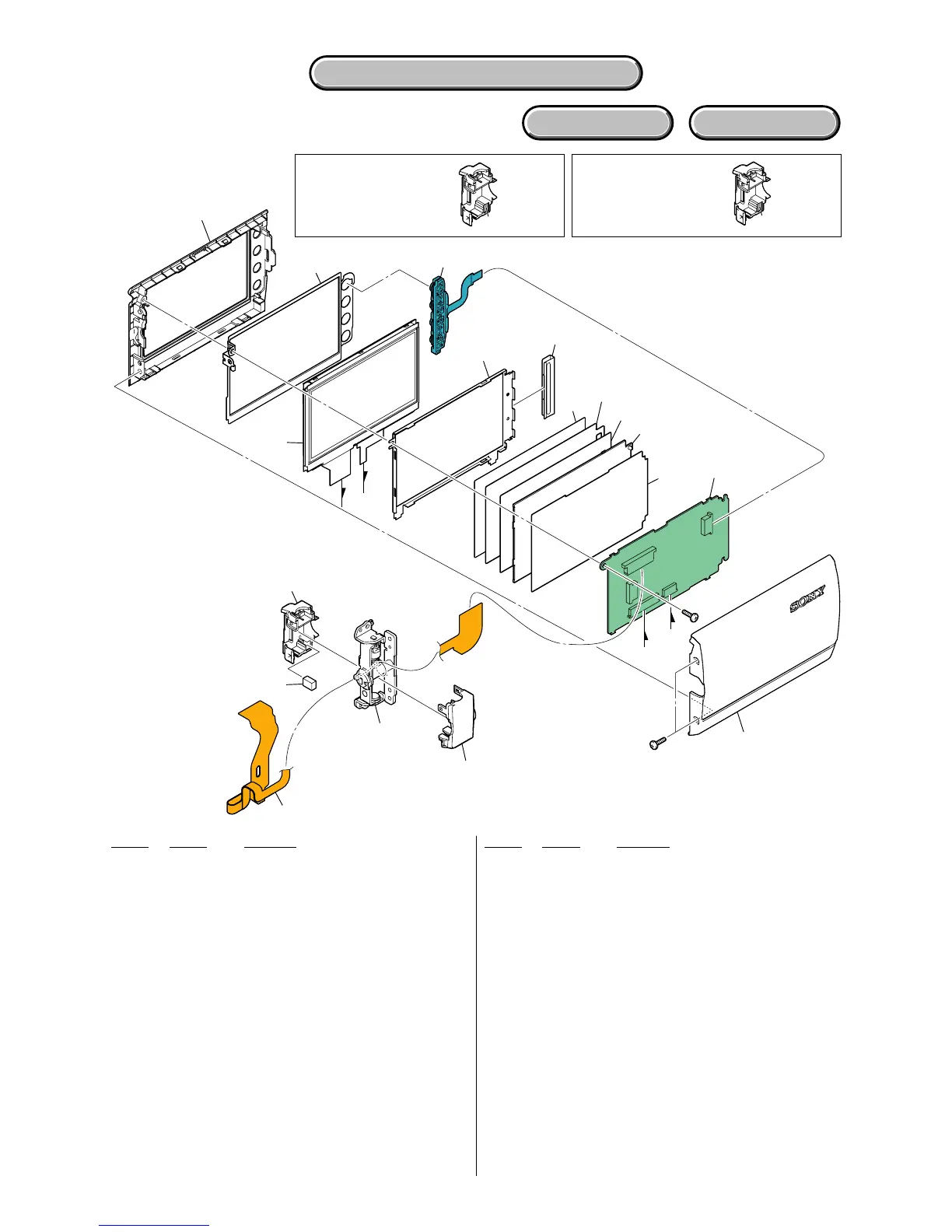

5-1-4. LCD PANEL SECTION
ns: not supplied
HARDWARE LIST
166 X-2345-244-1 CABINET (C) ASSY (B), P
(CX100: BLACK/CX100E: BLACK)
166 X-2345-245-1 CABINET (C) ASSY (R), P
(CX100: RED/CX100E: RED)
166 X-2345-246-1 CABINET (C) ASSY (S) (120), P
(CX120: SILVER)
166 X-2345-247-1 CABINET (C) ASSY (B) (120), P
(CX120: BLACK)
166 X-2345-248-1 CABINET (C) ASSY (R) (120), P (CX120: RED)
166 X-2345-249-1 CABINET (C) ASSY (S) (105), P
(CX105E: SILVER)
166 X-2345-250-1 CABINET (C) ASSY (B) (105), P
(CX105E: BLACK)
166 X-2345-251-1 CABINET (C) ASSY (R) (105), P (CX105E: RED)
166 X-2345-252-1 CABINET (C) ASSY (S) (106), P (CX106E)
LCD901 A-1228-786-A TP BLOCK ASSY (27ESHGU07)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)
Marking Side
Note: Put the marking side
together on the posi-
tion of figure when
you install the mag-
net.
Note: マグネットを取付
ける際は，マ−キン
グ面を図の位置にあ
わせてください。
マーキング面
To Next Page
