HARDWARE LIST
Ref. No. Part No. Description Ref. No. Part No. Description
1 (Note) CABINET (L), SERVICE
2 3-294-467-01 SHEET (266), TRIPOD
3 X-2345-259-1 CABINET (UPPER) ASSY (S) (SILVER)
3 X-2345-260-1 CABINET (UPPER) ASSY (B) (BLACK)
3 X-2345-261-1 CABINET (UPPER) ASSY (R) (RED)
4 4-131-903-01 COVER, DC/AV
5 1-487-113-11 SWITCH BLOCK, CONTROL (PS30700)
#2 2-635-562-31 SCREW (M1.7) (Black)
#12 3-080-204-21 SCREW, TAPPING, P2 (Black)

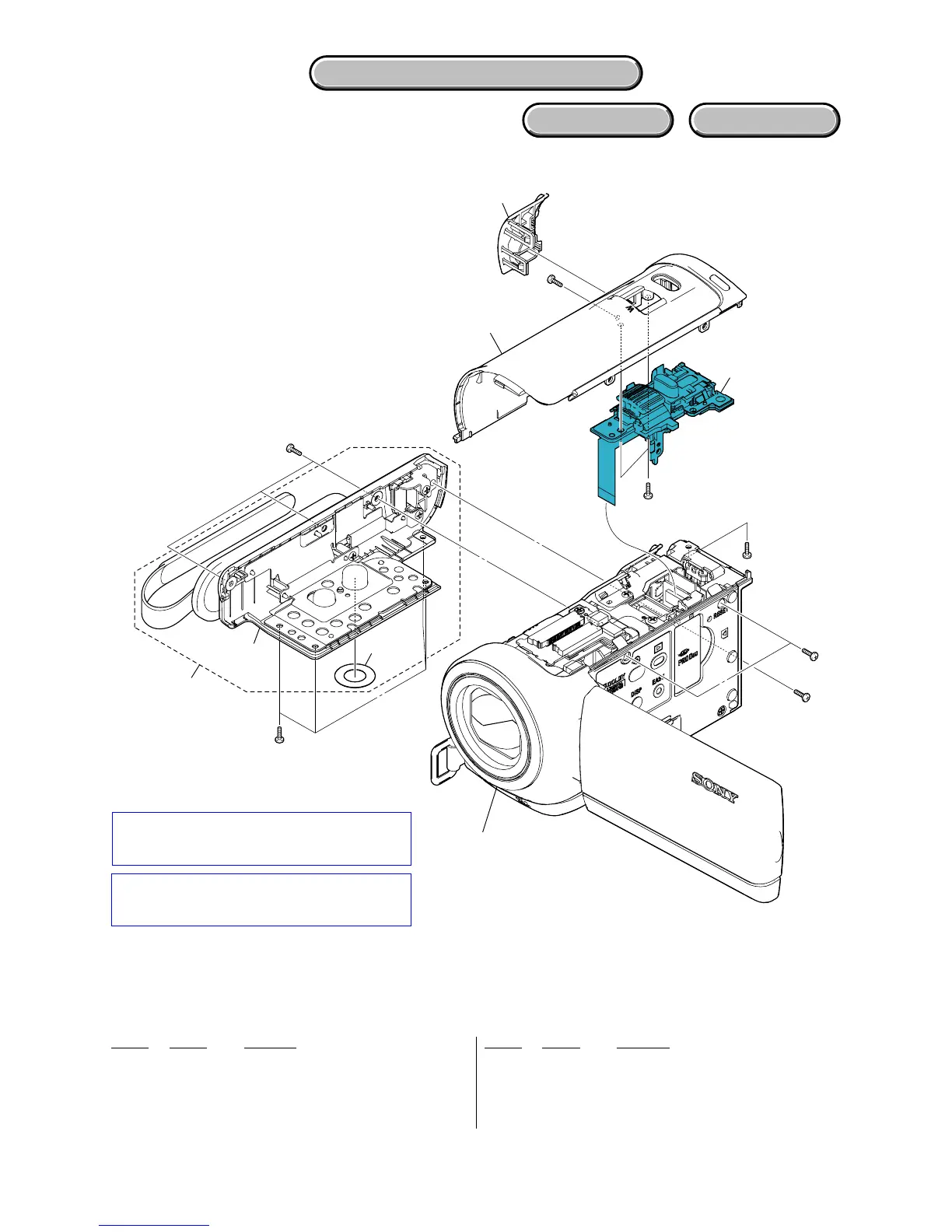

5-1-1. OVERALL SECTION
ns: not supplied
5-1. EXPLODED VIEWS
Note: When you exchange CABINET (L), SERVICE be
sure to read “1-5. PRECAUTION ON REPLAC-
ING THE CABINET (L)” on page 1-4.
Note: サービス用キャビネット（L）交換時は1-9ペー
ジの1-5.キャビネット（L ）交換時の注意
を必ずお読みください。
#2
#2
#12
#12
#12
#
