Chapter
2
Preparation
Connections
1
Connect a power cord (not supplied) to the AC IN
connector on the rear of the unit.
2
Connect the output signal of the medical equipment
to SDI-IN connectors A to D on the rear of the unit.
3
Connect the plug on the power cord to an AC power
supply.
4
Turn on the medical equipment that will act as the
signal source.
Turning the Unit On and
Off
To turn on the unit
1
Set the main power switch on the rear panel to the ?
(on) position.
2
Press the 1 (on/standby) switch on the front panel of
the unit.
A splash screen appears on the front panel display when
the unit turns on.
After “BOOTING...” and then the patient ID, current
date, and other information appear on the front panel
display, operations can be performed.
To turn on power or enter standby during normal
operation
Use the 1 (on/standby) switch on the front panel to
switch between turning the unit on and entering the
standby mode.
“FINISHING” appears on the front panel display while
the unit is shutting down. “GOOD BYE” appears and
disappears after shutdown is complete, and the unit enters
standby mode.
During long periods of disuse
Turn off the main power switch on the rear panel of the
unit when not using the unit for long periods of time.

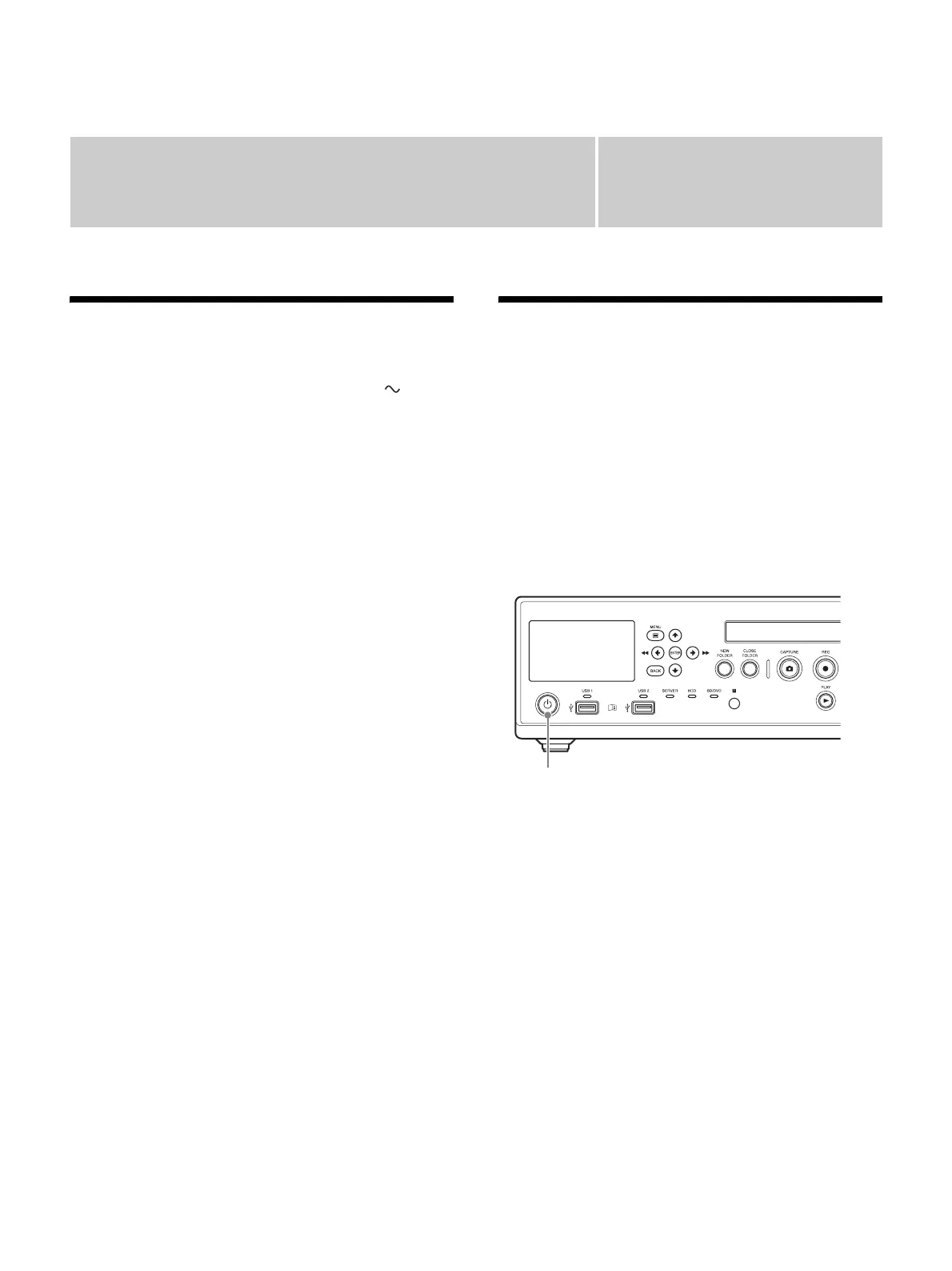

1 (on/standby) switch
Front panel
