HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-12

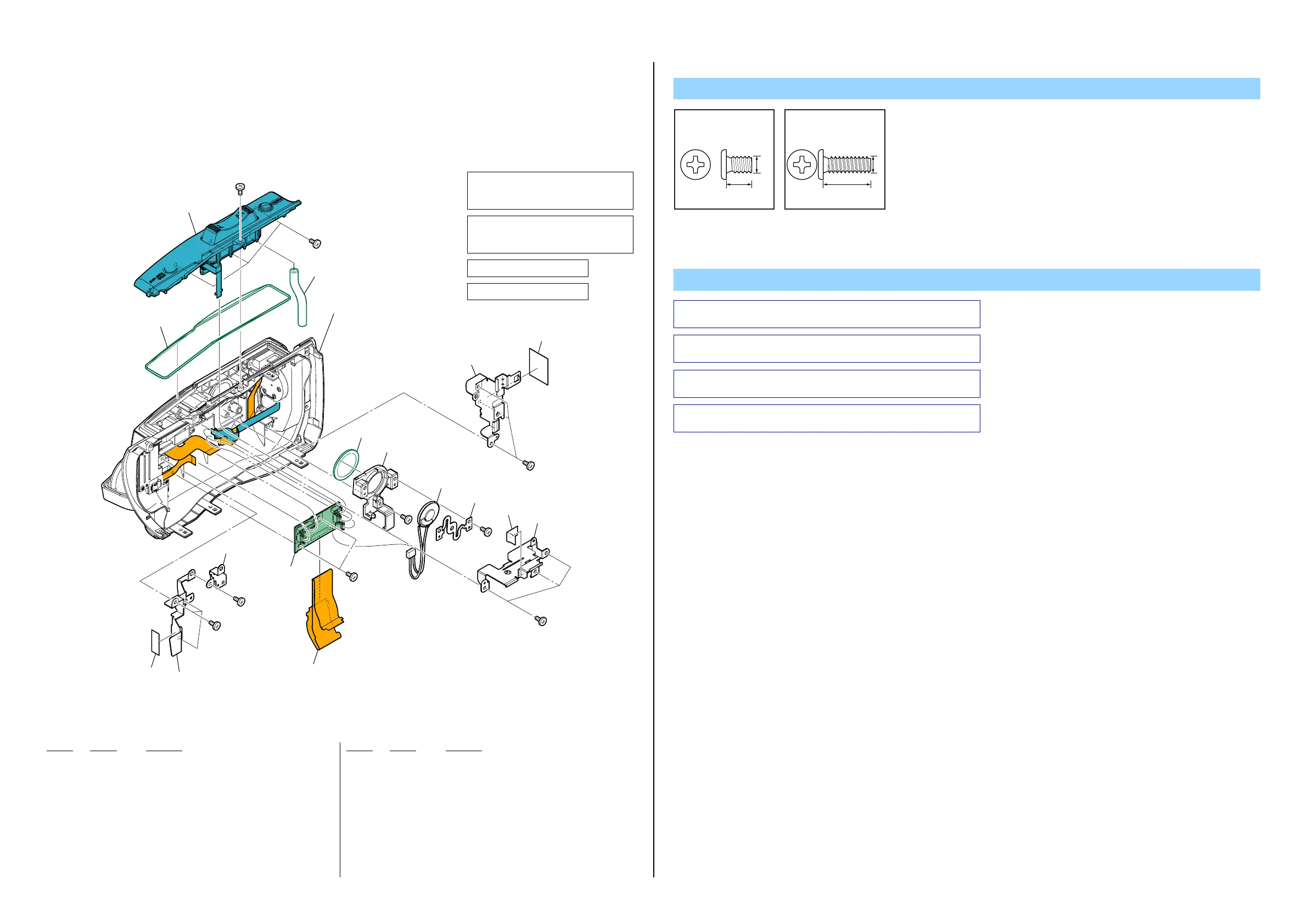

2-1-10. CABINET (L) SECTION-1
451 4-287-060-01 SHEET (MC)
452 4-282-370-01 FRAME (MC)
453 4-282-368-01 FRAME (GC)
454 1-883-168-11 FP-1373 FLEXIBLE BOARD
455 A-1825-463-A GC-017 BOARD, COMPLETE
456 4-282-366-01 FRAME (PZ) (Note 2)
457 4-283-284-01 SHEET, PZ PROTECTION
458 4-282-369-01 FRAME (SP)
459 4-282-327-01 HOLDER, SPEAKER
460 4-283-288-01 SHEET, SPEAKER
Ref. No. Part No. DescriptionRef. No. Part No. Description
461 4-282-367-01 FRAME (PS)
462 4-287-061-01 SHEET (PS)
463 4-282-269-01 PACKING, CABINET (PZ)
464 1-489-372-11 SWITCH BLOCK, CONTROL (PZ91000)
465 4-283-268-01 TUBE, DRAIN (Note 1)
SP901 1-858-324-41 SPEAKER (1.6CM)
#3 2-660-401-01 SCREW (M1.7), NEW TRU-STAR, P2
#12 3-080-204-21 SCREW, TAPPING, P2
#12
#12
#12
#12
#12
SP901
#12
#12
#12
#3
464
465
(Note 1)
463
Cabinet (L) Section-2
(See page 2-13)
462
456
(Note 2)
461
457
458
459
460
455
454
451
453
452
図中で取り外しているねじは、下記の
トルクで締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten all screws that are removed in
the figure below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
Screw
#3: M1.7 X 2.5
(Red)
2-660-401-01
2.5
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
Note
Note 1: Refer to “Assembly-3: Installation Cautions of the Drain Tube.”.
Note 1:
“Assembly-3: Installation Cautions of the Drain Tube.” を参照し
てください。
Note 2: Refer to “Assembly-4: Installation Cautions of the Flexible Boards.”.
Note 2:
“Assembly-4: Installation Cautions of the Flexible Boards.” を参照し
てください。
