HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-9

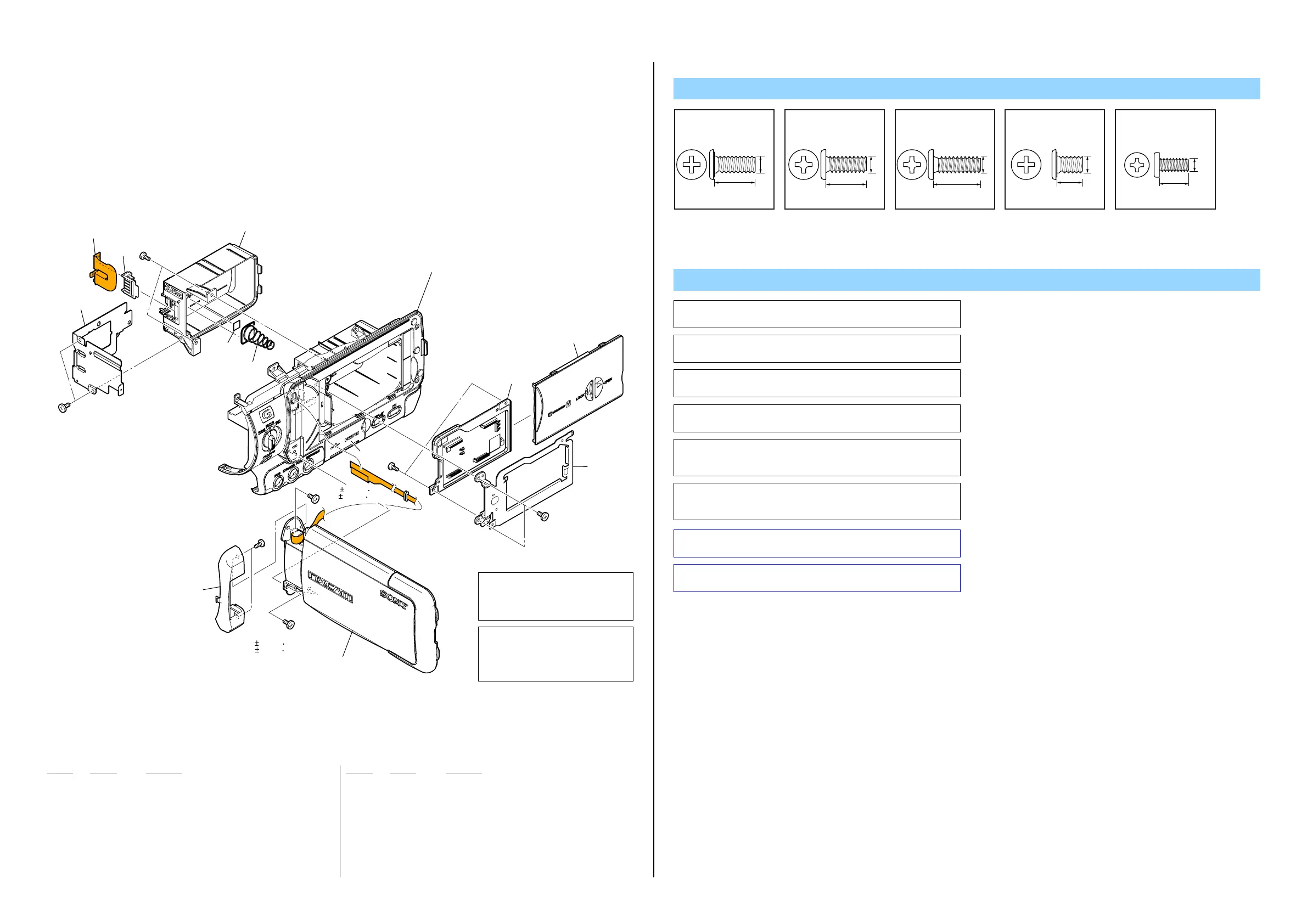

2-1-7. CABINET (R) SECTION-1
Screw
Note
#11
#14
#2
#11
BT901
#12
#53
#53
307
309
Cabinet (R) Section-2
(See page 2-10)
LCD Section
(See page 2-11)
(Note 4)
308
306
(Note 1)
(Note 2)
305
304
303
(Note 3)
302
301
(0.2 0.02N m
(2.0 0.2kgf cm))
(0.2 0.02N m
(2.0 0.2kgf cm))
301 4-282-310-01 COVER (R), HINGE
302 X-2581-424-1 HINGE ASSY, BT
303 A-1833-643-A INNER ASSY (SERVICE), BT LID (Note 3)
304 X-2581-417-1 LID (OUTER) ASSY, BT
305 4-283-293-01 SPRING, BT RELEASE
306 4-283-269-01 SHEET, LEAK DETECTION (Note 1)
307 4-282-309-01 CASE, BT
308 4-282-398-01 FRAME, BT
Ref. No. Part No. DescriptionRef. No. Part No. Description
309 1-883-165-11 FP-1370 FLEXIBLE BOARD
BT901 1-780-064-51 BATTERY TERMINAL BOARD
#2 2-635-562-31 SCREW (M1.7)
#11 3-078-890-11 SCREW, TAPPING
#12 3-080-204-21 SCREW, TAPPING, P2
#14 2-599-475-11 SCREW (M1.7)
#53 3-080-206-21 SCREW, TAPPING, P2
図中で取り外しているねじで、トルク
の記載が無いねじは、下記のトルクで
締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten screws that are removed
without specified torque in the figure
below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#11: M1.7 X 4.0 (Tapping)
(Silver)
3-078-890-11
4.0
1.7
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
#14: M1.7 X 2.5
(Silver)
2-599-475-11
2.5
1.7
#53: M2.0 X 5.0 (Tapping)
(Black)
3-080-206-21
5.0
2.0
Note 1: Do not touch the Leak Detection Sheet with a wet hand.
Keep it away from water.
Note 1:
Leak Detection Sheetを湿った手で触れたり、水滴が付かない
よう注意してください。
Note 2: The JK Cover (R) and Packing are not supplied independently.
They are included in the Cabinet (R) Assy (X-2581-416-1).
Note 2:
JK Cover(R)とパッキンは単体では供給していません。
Cabinet (R) Assy (X-2581-416-1)に含まれて供給されます。
Note 3: The BT Lid Inner and Packing are not supplied independently.
They are included in the BT Lid Inner Assy (Service)
(A-1833-643-A).
Note 3:
BT Lid Innerとパッキンは単体では供給していません。
BT Lid Inner Assy (Service)(A-1833-643-A)に含まれて供給
されます。
Note 4: Refer to “Assembly-13: Note on installation of the LCD
block.”.
Note 4:
“Assembly-13: Note on installation of the LCD block.” を参照し
てください。
To Next Page
