Sony HXR-NX70C User Manual

HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-14

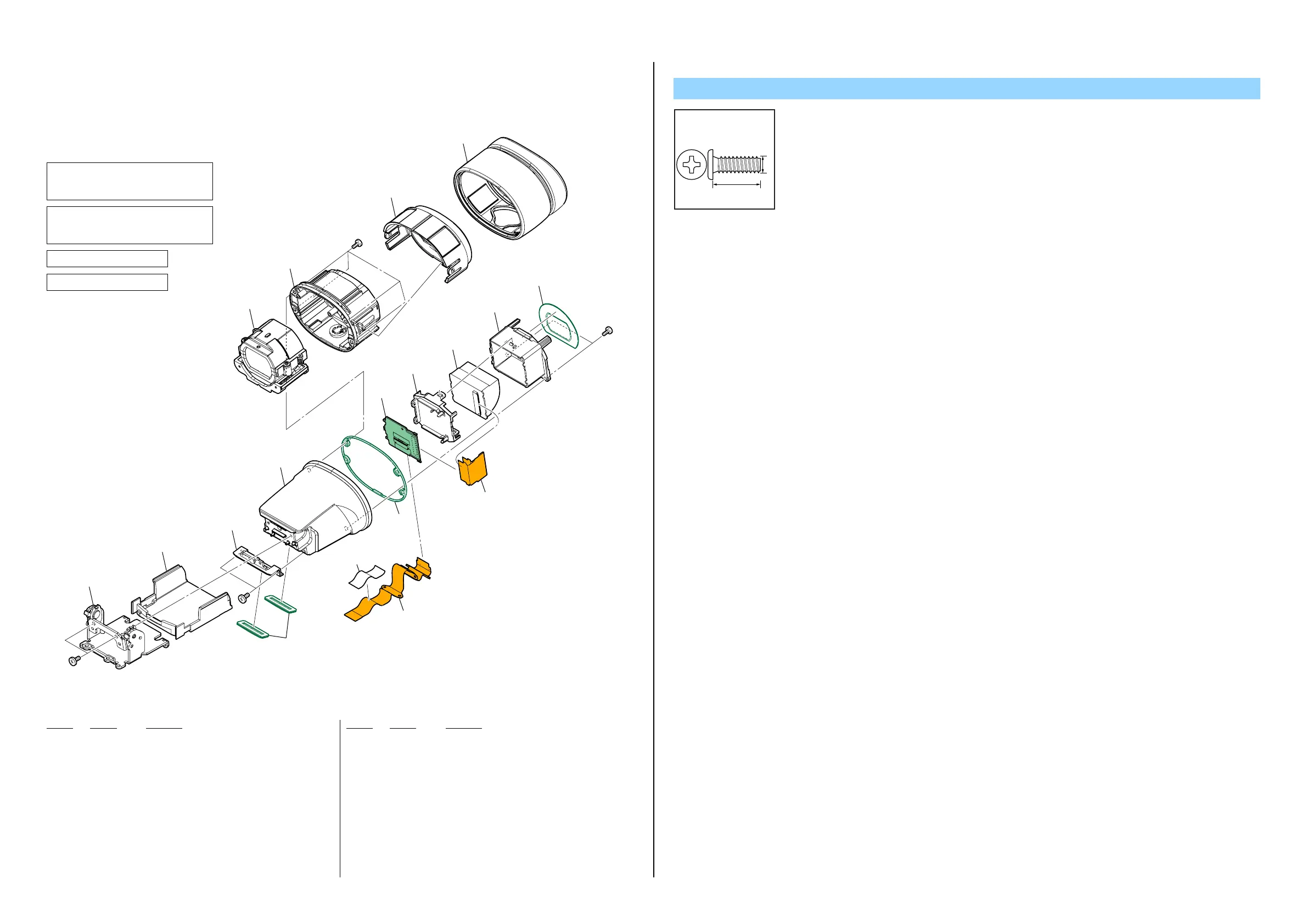

2-1-12. EVF SECTION
551 X-2581-423-1 TILT ASSY, VF
552 4-282-286-01 CABINET, VF HINGE (LOWER)
553 4-282-280-01 RETAINER (VF), VF FLEXIBLE
554 4-283-275-01 SHEET (V), VF WATERPROOF
555 4-282-277-01 CABINET, VF
556 4-283-286-01 SHEET (FP1379), COUNTERMEASURE
557 1-883-174-11 FP-1379 FLEXIBLE BOARD
558 4-282-259-01 PACKING, VF CABINET
559 A-1825-460-A VF-182 BOARD, COMPLETE
560 1-873-733-11 FP-776 FLEXIBLE BOARD
561 4-282-279-01 COVER, VF PANEL CASE
Ref. No. Part No. DescriptionRef. No. Part No. Description
562 4-282-278-01 CASE, VF PANEL
563 4-119-303-01 COVER, EYE CUP CABINET LID
564 X-2320-861-2 LENS ASSY, VF
565 A-1833-641-A CABINET ASSY (SERVICE),EYE CUP
566 4-282-284-01 COVER, VF WINDOW
567 4-282-285-01 EYE CUP (SMALL)
LCD902 1-802-560-31 LCD MODULE
#12 3-080-204-21 SCREW, TAPPING, P2
#12
LCD902
#12
#12
#12
551
552
553
554
557
556
555
559
564
565
566
567
561
562
563
558
560
図中で取り外しているねじは、下記の
トルクで締めつけてください。
(0.13±0.02N・m (1.3±0.2kgf・cm))
Tighten all screws that are removed in
the figure below to the following torque.
(0.13±0.02N・m (1.3±0.2kgf・cm))
緑色の部品はパッキンです。
Green parts are packings.
Screw
#12: M1.7 X 5.0 (Tapping)
(Black)
3-080-204-21
1.7
5.0
