HXR-NX70C/NX70E/NX70J/NX70N/NX70P/NX70U
2-3

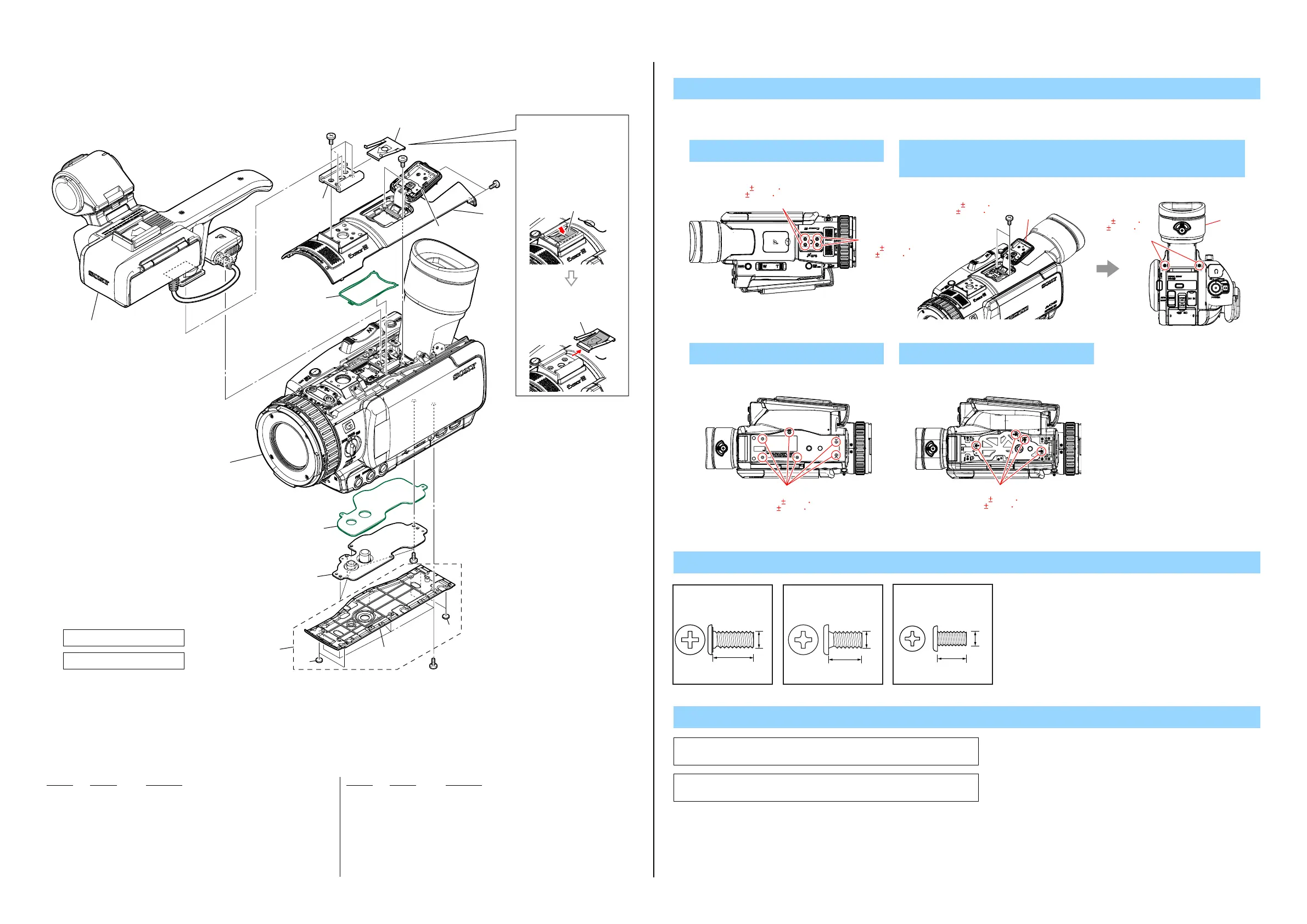

2-1. EXPLODED VIEWS
2-1-1. OVERALL SECTION-1
ns: not supplied
1. Remove to numerical order (1 to 8) in the left figure.
DISASSEMBLY
3 #233 X 4
Screw
Top View
#233
#233
(0.2 0.02N m
(2.0 0.2kgf cm))
(0.2 0.02N m
(2.0 0.2kgf cm))
#2: M1.7 X 4.0
(Black)
2-635-562-31
4.0
1.7
#49: M2.0 X 4.0
(Black)
2-630-005-31
4.0
2.0
Note
Note : The Shoe Cover and Packing are not supplied independently.
They are included in the Cabinet (T(91000)) Assy (X-2581-415-1).
Note :
Shoe Coverとパッキンは単体では供給していません。
Cabinet (T(91000)) Assy (X-2581-415-1) に含まれて供給されます。
Top Vie w Ba ck Vie w
#2
#2
4-1
4-2
(0.13 0.02N m
(1.3 0.2kgf cm))
(0.13 0.02N m
(1.3 0.2kgf cm))
#233
#2
#49
#2
#2
8
Remove the Cold Shoe Spring
using the following procedure to
prevent it from being scratched.
When attaching tape, have an
extraparttomakeiteasytolift
the Cold Shoe Spring.
1. Attach tape to the top surface
of the Cold Shoe Spring.
2. Slightly lift the Cold Shoe Spring.
3. Pull out the Cold Shoe Spring
backward.
Tape
Cold Shoe Spring
2 1
(Note)
3 2
4 3
5 4
8
1 XLR Section
(See page 2-16)
8 5
7 6
6 7
Overall Section-2
(See page 2-4)
ns
緑色の部品はパッキンです。
Green parts are packings.
Ref. No. Part No. Description
Ref. No. Part No. Description
1 4-282-388-01 SPRING, COLD SHOE
2 4-282-387-01 SHOE, COLD
3 X-2581-415-1 CABINET (T(91000)) ASSY
(NX70E/NX70J/NX70N/NX70P/NX70U)
3 X-2581-418-1 CABINET (T (91051)) ASSY (NX70C)
4 4-282-255-01 PACKING, SHOE
5 4-283-271-01 PACKING, CABINET BOTTOM
6 4-282-382-01 PLATE, TRIPOD
7 X-2581-414-1 BOTTOM ASSY, CABINET
8 2-589-376-01 FOOT (395), RUBBER
#2 2-635-562-31 SCREW (M1.7)
#49 2-630-005-31 SCREW (M2), NEW TRUSTER, P2
#233 2-342-356-11 SCREW (M2) (ECO, EG)
4
#Open Hot Shoe Lid (4-1) → #2 X 2 → Bring up EVF (4-2) →
#2 X 2
6 #2 X 6 7 #49 X 4
Bottom View
#2
(0.13 0.02N m
(1.3 0.2kgf cm))
Bottom View
#49
(0.18 0.02N m
(1.8 0.2kgf cm))
#233:
M2.0 X 5.0
(Black)
2-342-356-11
5.0
2.0
To Next Page
