SECTION 5
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
17
ICF-SW7600GR
• Abbreviation
CH : Chinese model
CND : Canadian model
EA : Saudi Arabia model

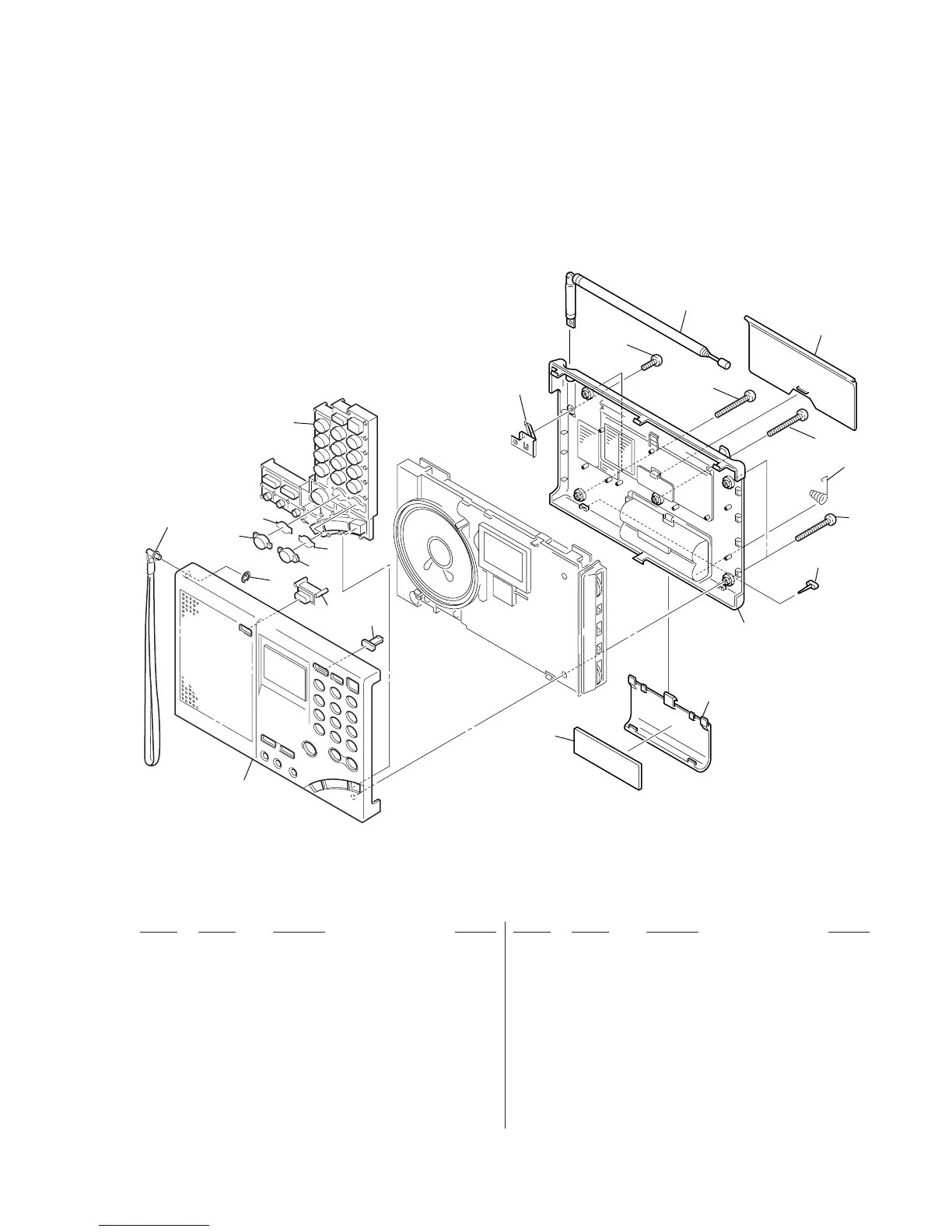

5-1. CABINET SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1
2
3
4
5
5
6
8
9
7
11
17
18
16
14
15
15
15
12
10
13
ANT101
1 X-3380-592-1 CABINET (FRONT) ASSY (EXCEPT CND)
1 X-3380-593-1 CABINET (FRONT) ASSY (CND)
2 3-881-938-00 STRAP, HAND
3 7-624-104-04 STOP RING 2.0, TYPE -E
4 3-227-386-01 BUTTON (PAGE)
5 3-227-387-01 SHEET (BUTTON), ADHESIVE
6 3-227-385-01 BUTTON (SCAN)
7 3-227-384-01 BUTTON (10 KEY)
8 3-227-388-01 BUTTON (LIGHT)
9 3-227-405-01 KNOB (HOLD)
10 3-227-401-01 PLATE (ANT), CONTACT
11 3-893-852-01 CUSHION (BATTERY CASE LID)
12 3-918-696-01 SCREW (M3X6 LOCK ACE)
13 3-227-402-01 STAND
14 3-227-403-01 TERMINAL (+/-), BATTERY
15 7-685-152-19 SCREW +BTP 3X25 TYPE2 N-S
16 3-893-846-01 FOOT, RUBBER
17 3-227-400-01 CABINET (REAR) (EXCEPT CH)
17 3-227-400-11 CABINET (REAR) (CH)
18 3-227-404-01 LID, BATTERY CASE
ANT101 1-501-712-11 ANTENNA, TELESCOPIC
