18
ICF-SW7600GR
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

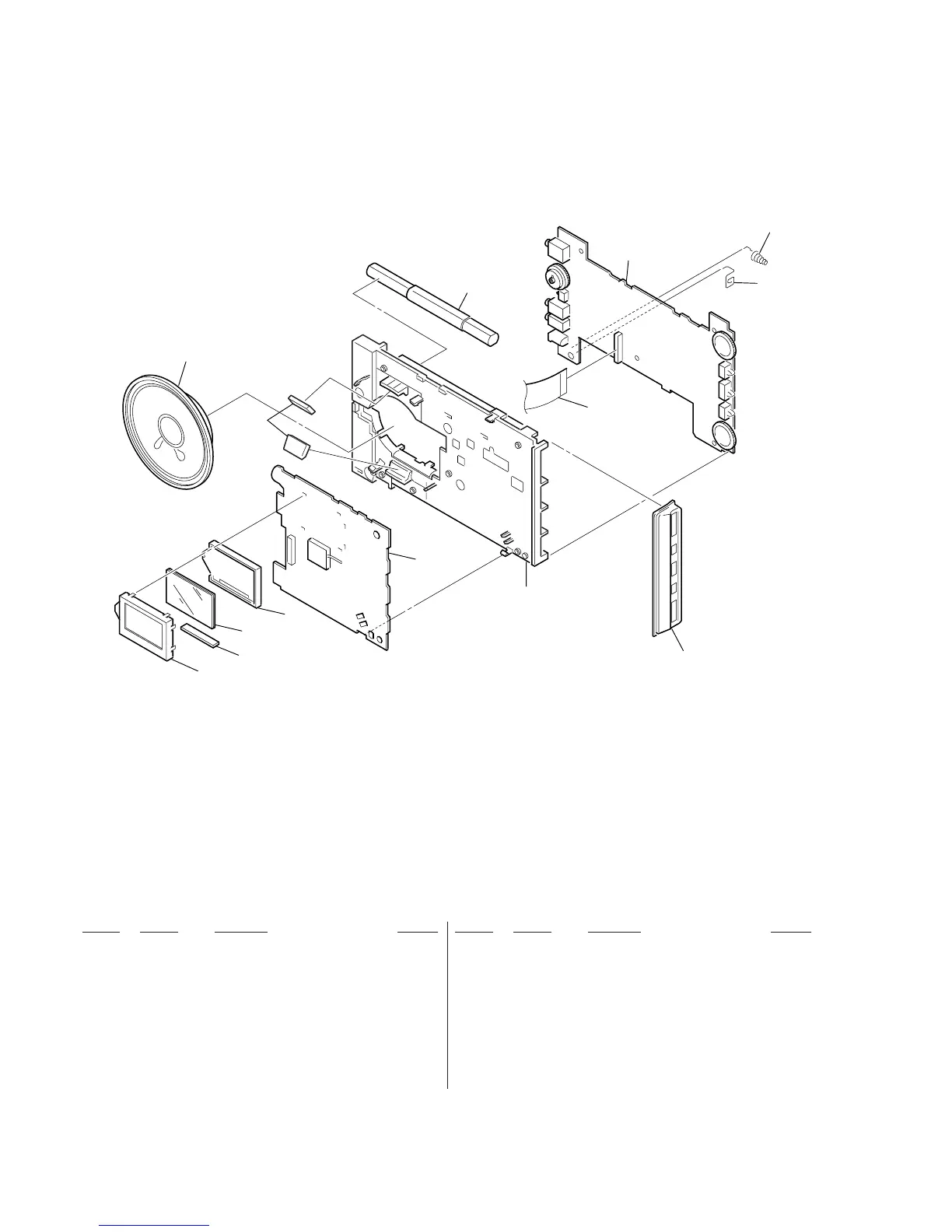

5-2. CHASSIS SECTION
52
51
54
58
53
55
56
57
61
60
59
SP201
LCD1
ANT102
* 51 A-4440-289-A KEY BOARD, COMPLETE
52 4-910-502-01 CUSHION, ANTENNA
53 3-227-395-01 PANEL (SIDE) (EXCEPT EA)
53 3-227-395-11 PANEL (SIDE) (EA)
54 1-757-510-11 WIRE (FLAT TYPE) (18 CORE)
* 55 A-4440-288-A MAIN BOARD, COMPLETE (EXCEPT CH,EA)
* 55 A-4440-290-A MAIN BOARD, COMPLETE (EA)
* 55 A-4440-291-A MAIN BOARD, COMPLETE (CH)
56 3-227-397-01 TERMINAL (-), BATTERY
57 3-227-396-01 TERMINAL (+), BATTERY
58 3-227-392-01 CHASSIS
* 59 3-227-389-01 HOLDER (LCD)
* 60 1-694-751-11 CONDUCTIVE BOARD, CONNECTION
* 61 3-227-390-01 CASE (LCD)
ANT102 1-402-479-21 ANTENNA, FERRITE-ROD (LW/MW)
LCD1 1-804-194-11 DISPLAY PANEL, LIQUID CRYSTAL
SP201 1-529-942-11 SPEAKER (7.7cm)

Sony ICF-SW7600GR - Portable Radio Specifications

General

Manufacturer	Sony
Model	ICF-SW7600GR
Display	LCD
Type	Portable Radio
Power Source	4 AA batteries or AC adapter
Features	SSB reception
Tuning Modes	Manual, Scan, Preset
Antenna	Telescopic antenna for FM/SW, built-in ferrite bar antenna for LW/MW
Speaker	Built-in
Headphone Jack	3.5 mm
Tuning Steps	FM: 0.05 MHz, SW: 1 kHz, MW: 9/10 kHz, LW: 9 kHz
Weight	617 g (1 lb 6 oz) including batteries
