Sony MHC-V02 Service Manual

MHC-V02
14

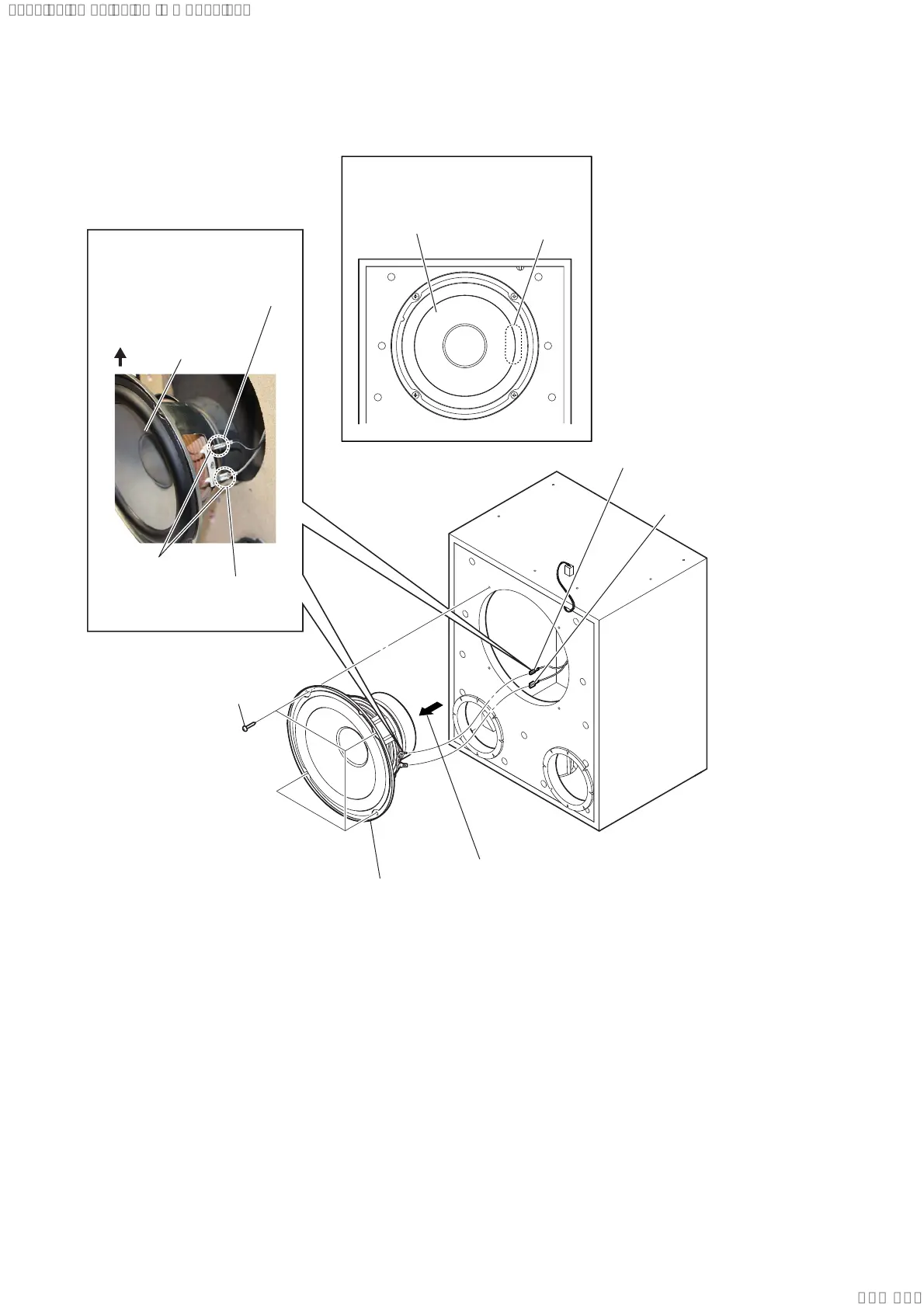

2-7. LOUDSPEAKER 18CM (WOOFER) (SP3)
2 Remove the loudspeaker 18cm
(woofer) (SP3) in the direction
of the arrow.
4 loudspeaker 18cm
(woofer) (SP3)
 ,QVWDOODWLRQGLUHFWLRQIRUWKH
 ORXGVSHDNHUFPZRRIHU63
loudspeaker 18cm
(woofer) (SP3)
terminal position
1 four screws
((4 u 16), +BV TAPPING)
Push the protrusion, and
remove the terminal
(narrow side) [grey/black].
3 terminal (narrow side)
[grey/black]
:LUHVHWWLQJ
protrusion
Push the protrusion,
and remove the
terminal (wide side) [grey].
3 terminal
(wide side) [grey]
top side
loudspeaker
18cm (woofer)
(SP3)
SYSSET
2019/02/2822:48:45(GMT+09:00)
