Sony MHC-V02 Service Manual

35
MHC-V02
251 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
252 3-931-379-21 RUBBER, VIBRATION PROOF
253 3-931-379-31 RUBBER, VIBRATION PROOF
0
254 1-856-668-31 OPTICAL PICKUP
255 4-196-587-02 COVER, CD
256 1-912-915-11 FLEXIBLE FLAT CABLE (16 CORE)
257 4-951-620-51 SCREW (2.6), +BVTP
258 1-912-916-11 FLEXIBLE FLAT CABLE (7 CORE)
0
259 A-2226-668-A PANEL MOUNTED PC BOARD (EXCEPT MY, E12)
0
259 A-5002-355-A PANEL MOUNTED PC BOARD (MY, E12)
260 4-578-577-11 DAMPER
261 4-747-182-01 SPRING, LID
262 1-692-960-11 SWITCH, PUSH (1 KEY)
263 4-744-955-01 LID, CD
264 5-004-812-01 CUSHION, LID (REAR)
265 4-747-183-01 CUSHION, LID
266 A-5004-705-A BUTTON LEFT ASSY (for SERVICE)
267 4-744-957-01 BUTTON, RIGHT
268 5-003-391-01 CUSHION, LID (SUPPORT)
0
269 4-744-954-03 PANEL, TOP (EXCEPT AEP, UK)
0
269 4-744-954-12 PANEL, TOP (AEP, UK)
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

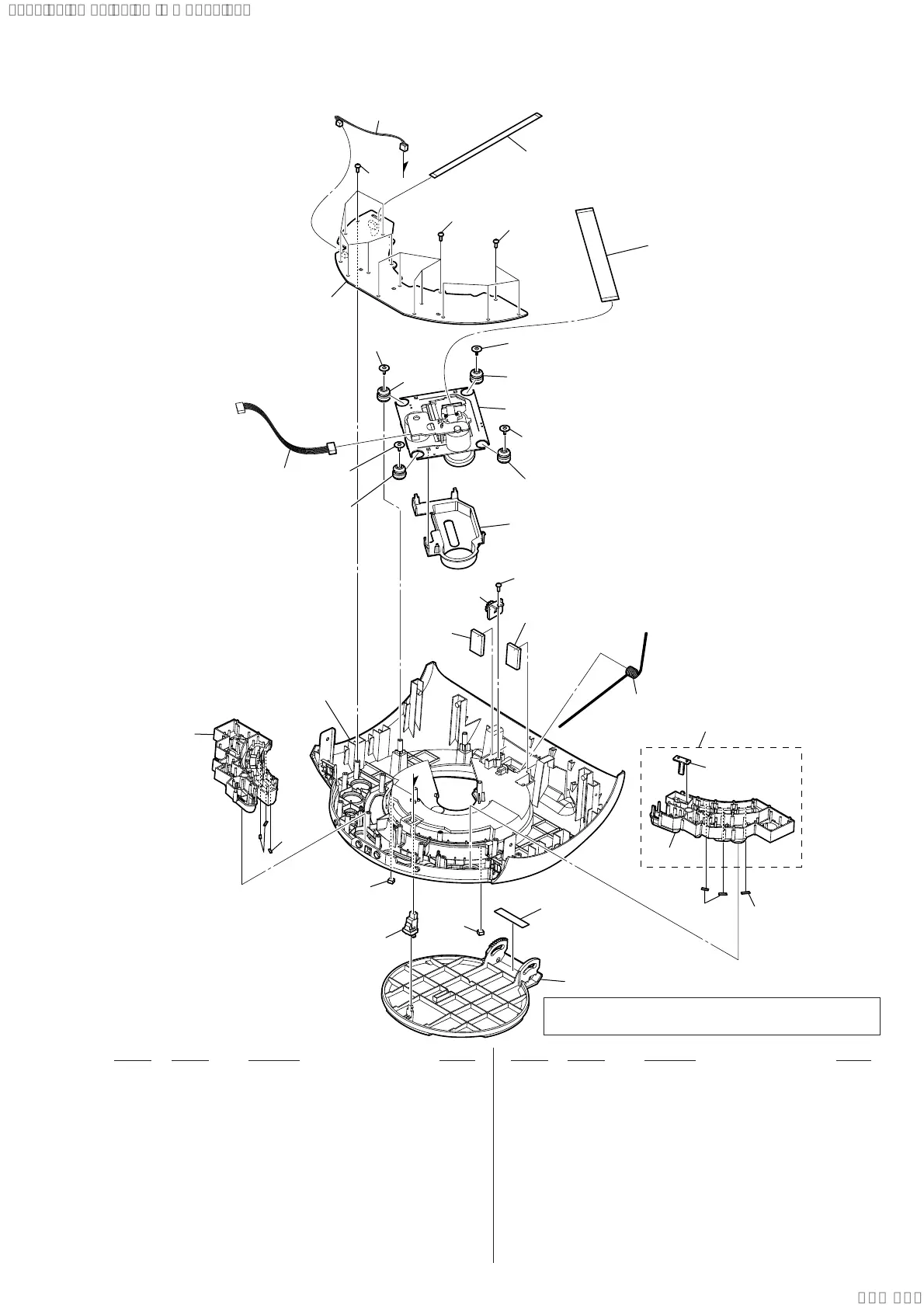

7-6. TOP PANEL (VITO) SECTION
Note: If fl exible fl at cable is replaced, install it after bending
it in the same form as that before replacement.
ns
251
252
251
252
253
254
256
255
257
257
258
259
257
260
261
262
263
264
265
265
266
257
253
251
251
267
268
268
269
ns
ns
ns
A
A
ns
ns
ns
ns
SYSSET
2019/02/2822:48:45(GMT+09:00)

Sony MHC-V02 Specifications

General

Speaker type	-
Speaker placement	Floor
Built-in amplifier	Yes
Number of woofer drivers	1
Number of tweeter drivers	2
Type	Home audio mini system
Control type	Buttons, Wireless
Display type	LED
Cassette deck	No
Product color	Black
Housing material	Plastic
Disc loading type	Top
Number of optical discs	1 discs
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Quantity per pack	1 pc(s)
RMS rated power	- W
Power source	AC
Power source type	AC, Battery
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Bluetooth version	4.2
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Compatible operating systems	Android, iOS
Supported radio bands	Not supported
Recording on	USB
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WAV, WMA
Volume control	Digital

Weight and Dimensions

Depth	306 mm
Width	281 mm
Height	500 mm
Weight	6000 g
Woofer diameter	180 mm
Tweeter diameter	40 mm
