Sony MHC-V02 Service Manual

17
MHC-V02

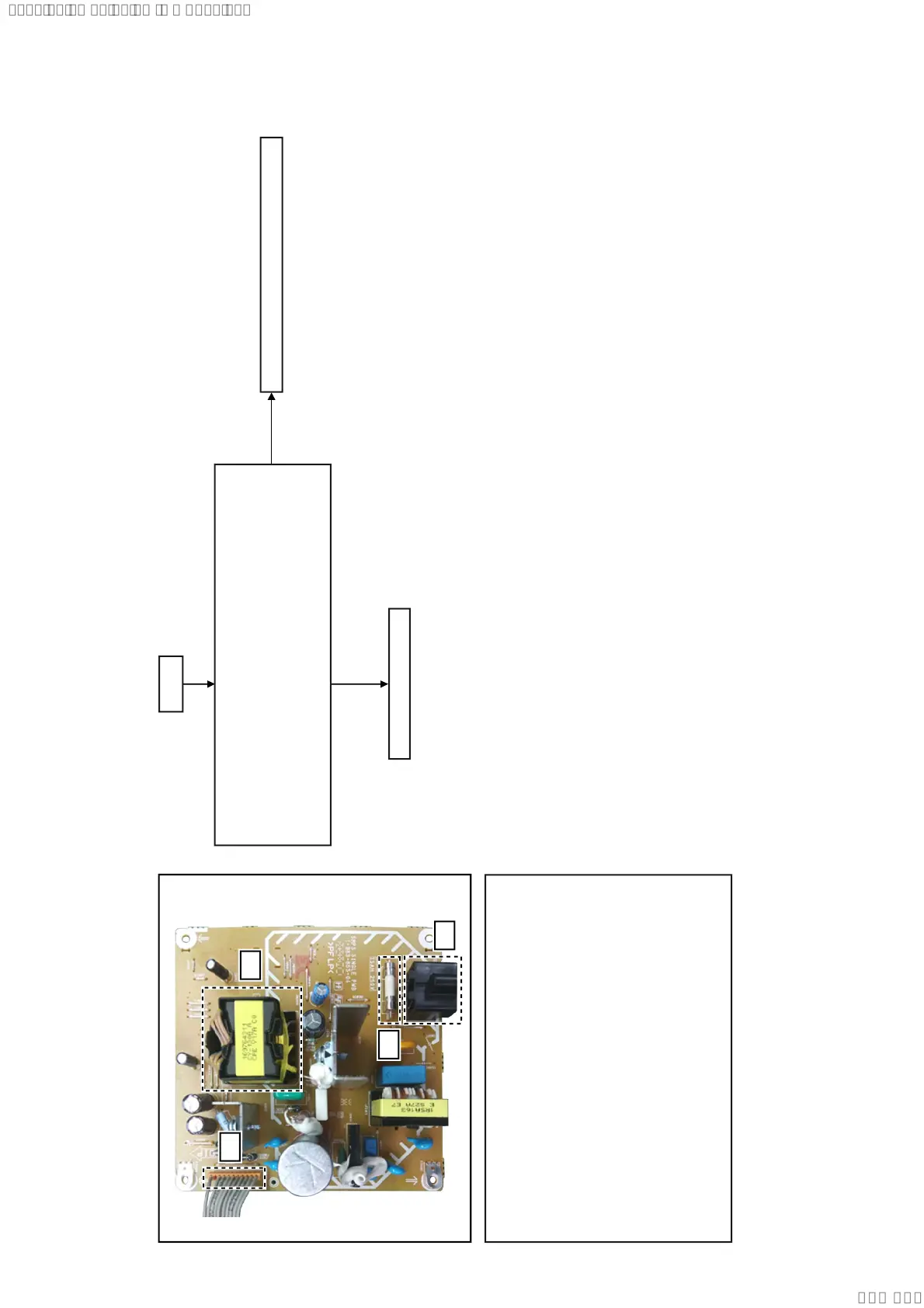

SMPS Board Diagnosis Flow
SECTION 5
TROUBLESHOOTING
AC IN
Yes
END
No
Replaces SMPS board if it is not up to standard.
The Output from SMPS board is checked. Is following power voltage up to standard?
NO6500 Pin 5~7 NO6500 Pin 8
Standby
26.1V±5% 26.1V±5%
Demo Mode
26.1V±5% 26.1V±5%
Power On
26.1V±5% 26.1V±5%
(1) AC input (2) Fuse (3) MAIN power transformer (4) NO6500 connector
Pin 1: GND Pin 3: GND Pin 4: GND Pin 5: VH Pin 6: VH Pin 7: VH Pin 8: SUB VH Pin 9: SUB GND Pin 10: AC DET Pin 11: LATCH ON
(1)
(2)
(3)
(4)
SYSSET
2019/02/2822:48:45(GMT+09:00)

Sony MHC-V02 Specifications

General

Speaker type	-
Speaker placement	Floor
Built-in amplifier	Yes
Number of woofer drivers	1
Number of tweeter drivers	2
Type	Home audio mini system
Control type	Buttons, Wireless
Display type	LED
Cassette deck	No
Product color	Black
Housing material	Plastic
Disc loading type	Top
Number of optical discs	1 discs
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Quantity per pack	1 pc(s)
RMS rated power	- W
Power source	AC
Power source type	AC, Battery
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Bluetooth version	4.2
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Compatible operating systems	Android, iOS
Supported radio bands	Not supported
Recording on	USB
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WAV, WMA
Volume control	Digital

Weight and Dimensions

Depth	306 mm
Width	281 mm
Height	500 mm
Weight	6000 g
Woofer diameter	180 mm
Tweeter diameter	40 mm
