Sony MHC-V02 Service Manual

33
MHC-V02
151 A-2226-669-A VFD_IR MOUNTED PC BOARD
152 1-912-917-11 FLEXIBLE FLAT CABLE (11 CORE)
153 4-744-952-01 HOLDER, SPEAKER LED
154 A-2226-670-A SPK LED MOUNTED PC BOARD
155 4-744-953-01 DUCT, BLUE
156 4-744-949-01 HOLDER, TWEETER L
157 4-744-950-01 HOLDER, TWEETER R
158 4-744-951-01 GRILLE
159 4-744-948-01 WINDOW
160 4-745-013-01 TAPE, WINDOW
0
161 A-5004-704-A FRONT PANEL ASSY (for SERVICE)
ND301 1-483-549-11 VACUUM FLUORESCENT DISPLAY
SP1 1-859-349-11 LOUDSPEAKER 4CM (Tweeter) (L-CH)
SP2 1-859-349-11 LOUDSPEAKER 4CM (Tweeter) (R-CH)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
ns not supplied
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

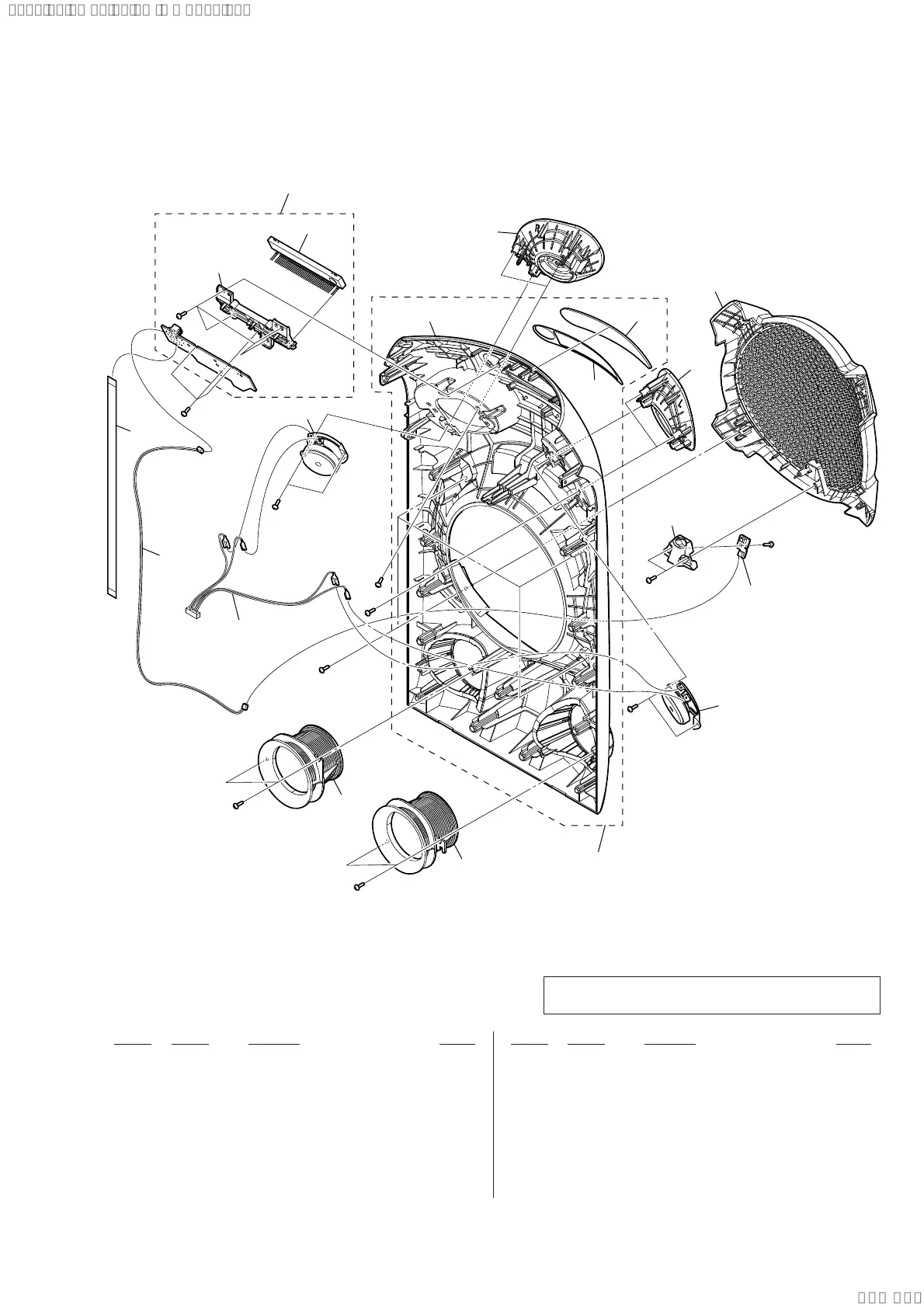

7-4. FRONT PANEL (VITO) SECTION
Note: If fl exible fl at cable is replaced, install it after bending
it in the same form as that before replacement.
SP1
SP2
ns
ND301
ns
ns
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
ns
151
152
154
153
155
156
158
160
159
161
157
155
SYSSET
2019/02/2822:48:45(GMT+09:00)

Sony MHC-V02 Specifications

General

Speaker type	-
Speaker placement	Floor
Built-in amplifier	Yes
Number of woofer drivers	1
Number of tweeter drivers	2
Type	Home audio mini system
Control type	Buttons, Wireless
Display type	LED
Cassette deck	No
Product color	Black
Housing material	Plastic
Disc loading type	Top
Number of optical discs	1 discs
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Quantity per pack	1 pc(s)
RMS rated power	- W
Power source	AC
Power source type	AC, Battery
Power consumption (standby)	0.5 W
Power consumption (typical)	25 W
Bluetooth version	4.2
Coloration	Monochromatic
Bluetooth profiles	A2DP, AVRCP, SPP
Illumination location	Front
Analog signal format system	NTSC, PAL
Compatible operating systems	Android, iOS
Supported radio bands	Not supported
Recording on	USB
Disc types supported	CD, CD-R, CD-RW
Playback disc formats	CD audio
Audio formats supported	AAC, MP3, WAV, WMA
Volume control	Digital

Weight and Dimensions

Depth	306 mm
Width	281 mm
Height	500 mm
Weight	6000 g
Woofer diameter	180 mm
Tweeter diameter	40 mm
