Sony MVS-6500 System User Manual

22

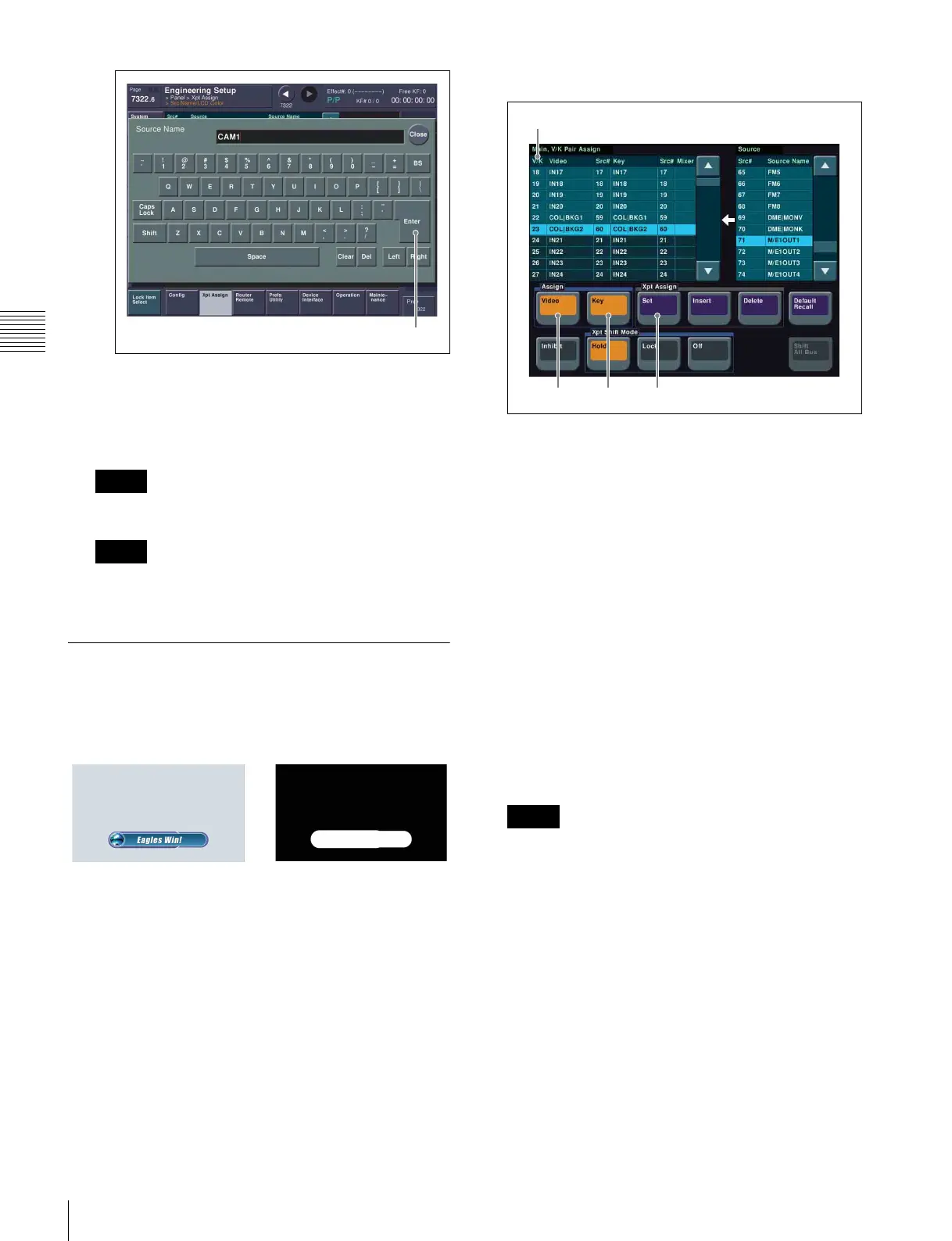

Assigning Signals to Cross-Point Buttons
Preparation
Keyboard window
d Press [Enter].
e Repeat steps 1 to 4 as required to assign other
signals.
Up to 16 characters can be entered for signal names.
You can also set the color for cross-point buttons
assigned with signals.
Assigning Pair Signals to Cross-
Point Buttons
You can assign video and key signals, shown below, as a
pair to each cross-point button.
1 Display the menu.
a Open the Engineering Setup >Panel >Xpt Assign
menu (7322).
b Press [Main, V/K Pair Assign].
The Main, V/K Pair Assign menu (7322.5) appears.
2 Assign a video signal to the cross-point button.
Main, V/K Pair Assign menu
a In the [V/K] column of the list on the left, select the
number of the cross-point button.
In this example, select “1”.
b In the <Assign> group, press [Video], turning it on.
c In the list on the right, select the signal you want to
assign as the video signal.
In this example, select “CAM1”.
d In the <Xpt Assign> group, press [Set].
The video is assigned.
3 Assign a key signal to the cross-point button.
a In the <Assign> group, press [Key], turning it on.
b In the list on the right, select the signal you want to
assign as the key signal.
In this example, select “Key1”.
c In the <Xpt Assign> group, press [Set].
The key is assigned.
• In the <Assign> group, you can press [Video] and
[Key], turning them both on, to assign signals at the
same time.
• You can also edit the lists using [Insert] and [Delete]
in the <Xpt Assign> group.
4 Repeat steps 2 and 3 as required to assign other
signals.
For details about using assigned pair signals using a
keyer, see “Entering Titles using Luminance Keys”
(1 p. 51).
Notes
Memo
Enter
Video signal Key signal
Memo
Video Key Set
V/K
