8
Names of Parts
Overview
ICP-6520/6530 Control Panel

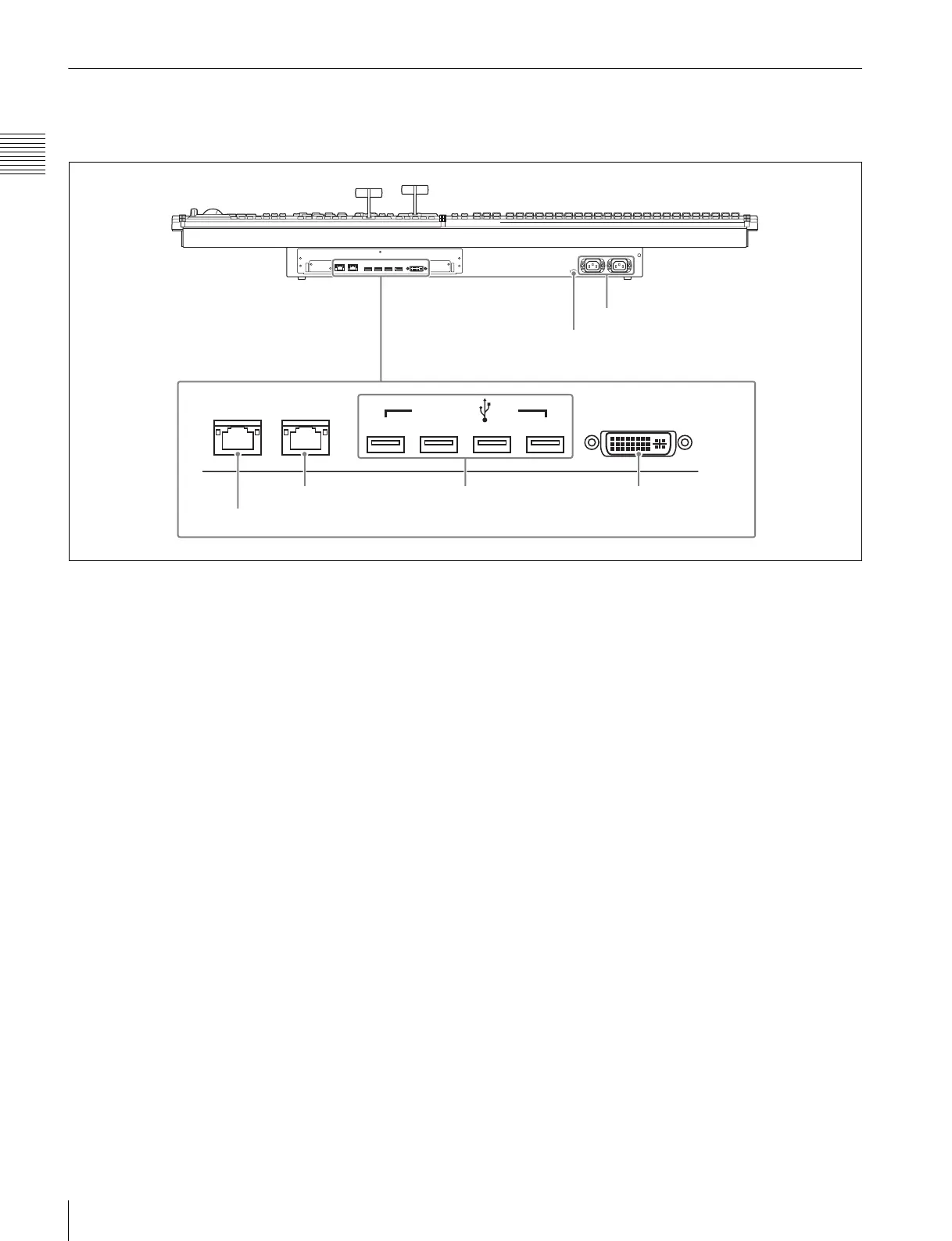

Rear panel
a UTIL (utility) connector (RJ-45 compliant)
Intended for future expansion.
b MVS (multi format video switcher) connector (RJ-
45 compliant)
Connect to the MVS-6520/6530.
For details about connecting a DCU and MVE-8000A/
9000 multi format DME processor, refer to the User’s
Guide.
c DEVICE 1 to 4 connectors (USB 2.0 compliant,
USB Type-A)
Connect to an ICP-6511 or USB device.
1)
d DVI-D connector
Connect to an ICP-6511 or external monitor.
1)
e U (signal ground) terminal
Connect to the system ground.
f - AC IN (AC power input) A and B connectors
(3-pin)
Connect to 100 V to 240 V AC power supply with the
optional AC power cords.
The unit is equipped with two power supplies. When A or
B power supply is connected, unit operation can proceed.
1) For information about devices that can be connected, contact your Sony
representative.
UTIL MVS DVI-D OUTDEVICE
44321
b MVS connector
a UTIL connector
d DVI-D connector
f -AC IN A and B connectors
c DEVICE 1 to 4 connectors
e U terminal
