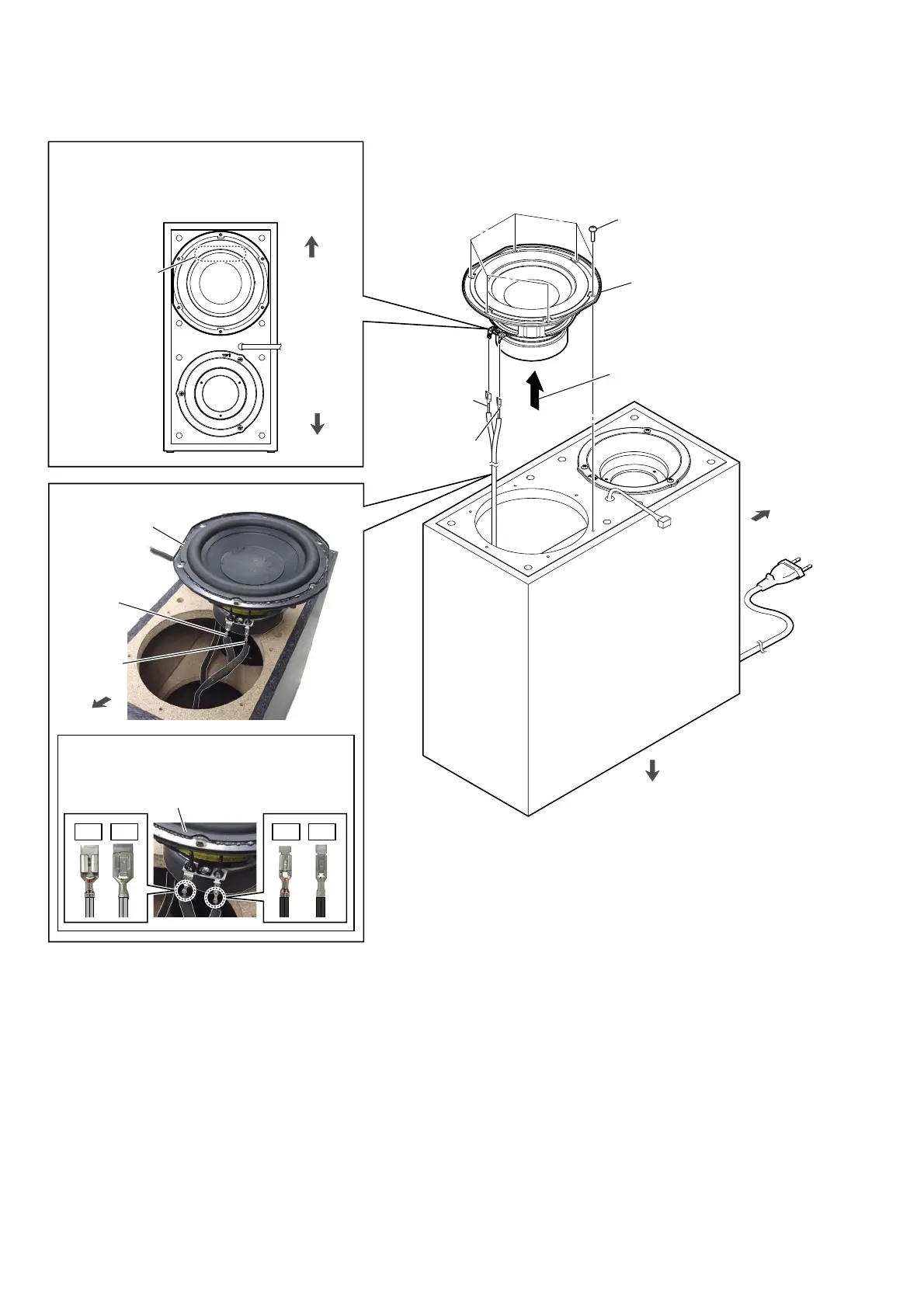

2-9. LOUDSPEAKER (SP1)
1 six screws
(BVTP4 u 20)
4 loudspeaker
(SP1)
2 Lift up the loudspeaker block
in the direction of the arrow.
loudspeaker
(SP1)
6SHDNHUFDEOHVHWWLQJ
,QVWDOODWLRQGLUHFWLRQIRUWKHORXGVSHDNHU63
terminals position
[gray]
[black]
3 terminal (wide)
[gray]
3 terminal (narrow)
[black]
Note 1:
When installing the loudspeaker (SP1),
make the position of terminals as shown
in the figure below.
top side
bottom side
Note 2:
When connecting the speaker cable terminal to
the loudspeaker, take care for the direction of
the terminal and connect it.
loudspeaker
top side
rear side
bottom side
OK
NG
OK
NG
