SA-WCT800

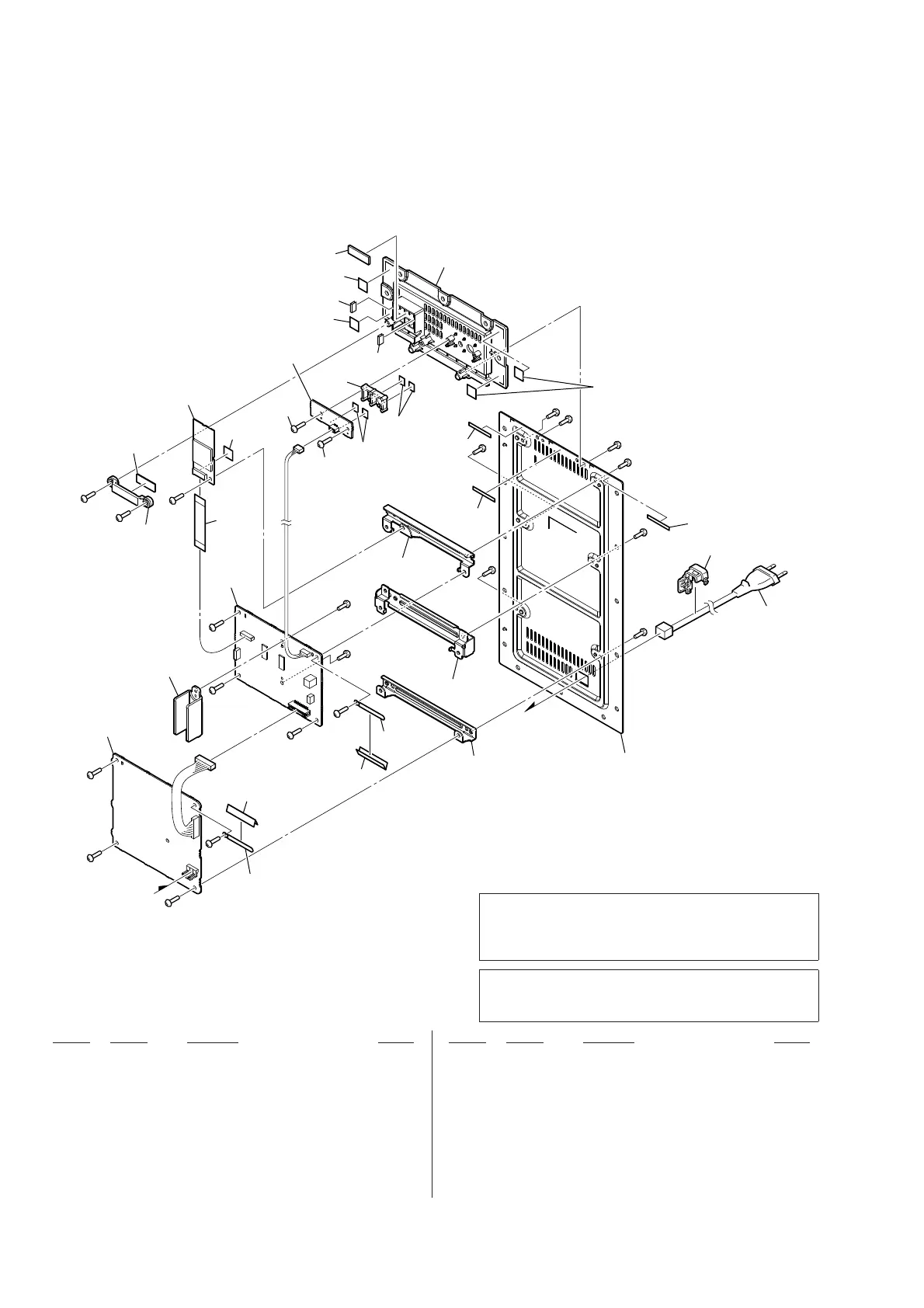

5-2. AMP SECTION
AC1
B
B
not supplied
#1
51
57
57
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
not supplied
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#2
#3
#1
#1
#1
#1
#1
#1
#1
RF1
FFC1
not supplied
not supplied
(SUB-KEY board)
52
53
53
54
55
54
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
56
Note 1: When the complete SUB-MAIN board (Ref. No. 52) is
replaced, refer to “WIRELESS CONNECTION (LINK)
WORK OF BAR SPEAKER AND SUBWOOFER”
and “SPREADING OF COMPOUND” on page 4.
51 A-2088-498-A SUB-POWER BOARD, COMPLETE (US, CND)
51 A-2088-500-A SUB-POWER BOARD, COMPLETE (AEP, UK)
52 A-2178-471-A SUB-MAIN BOARD, COMPLETE (SV) (See Note 1)
53 3-087-053-01 +BVTP2.6 (3CR) (L = 8 mm)
54 4-564-787-11 NON WOVEN FABRIC (T0.3)
55 4-549-776-01 BUTTON (POWER-CZ2)
0 56 4-966-267-12 BUSHING (FBS001), CORD
57 4-564-785-11 CUSHION (CZ2-A)
0 AC1 1-834-966-42 POWER-SUPPLY CORD (AEP)
0 AC1 1-837-308-12 CORD, POWER-SUPPLY (US, CND)
0 AC1 1-839-999-22 POWER-SUPPLY CORD (UK)
FFC1 9-885-210-91 FFC 24P
RF1 1-492-348-21 RF MODULATOR (SWA12-4V RX) (See Note 2)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-146-11 SCREW +P 3X8 TYPE2 NON-SLIT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note 2: When the RF modulator (Ref. No. RF1) is replaced,
refer to “WIRELESS CONNECTION (LINK) WORK
OF BAR SPEAKER AND SUBWOOFER” on page 4.
