Sony SRS-XB10 User Manual

Flashes quickly (3
times a second)
The speaker enters the pairing mode.
Flashes slowly
The speaker is searching for a BLUETOOTH device to connect to.
Flashes once
Each time you press the –/+ (volume) button, the indicator flashes once.
Flashes 3 times
When you operate the -/+ (volume) button and the volume is set at the lowest
or highest level, the indicator flashes 3 times.
L/R indicators
Lights
up
The speaker is operating as the left speaker while the stereo mode of the Speaker Add
function is enabled.
The speaker is operating as a monaural speaker while the double mode of the Speaker Add
function is enabled.
Charging the speaker
The speaker contains a rechargeable lithium ion battery which should be charged more than 1
hour before using the speaker for the first time.

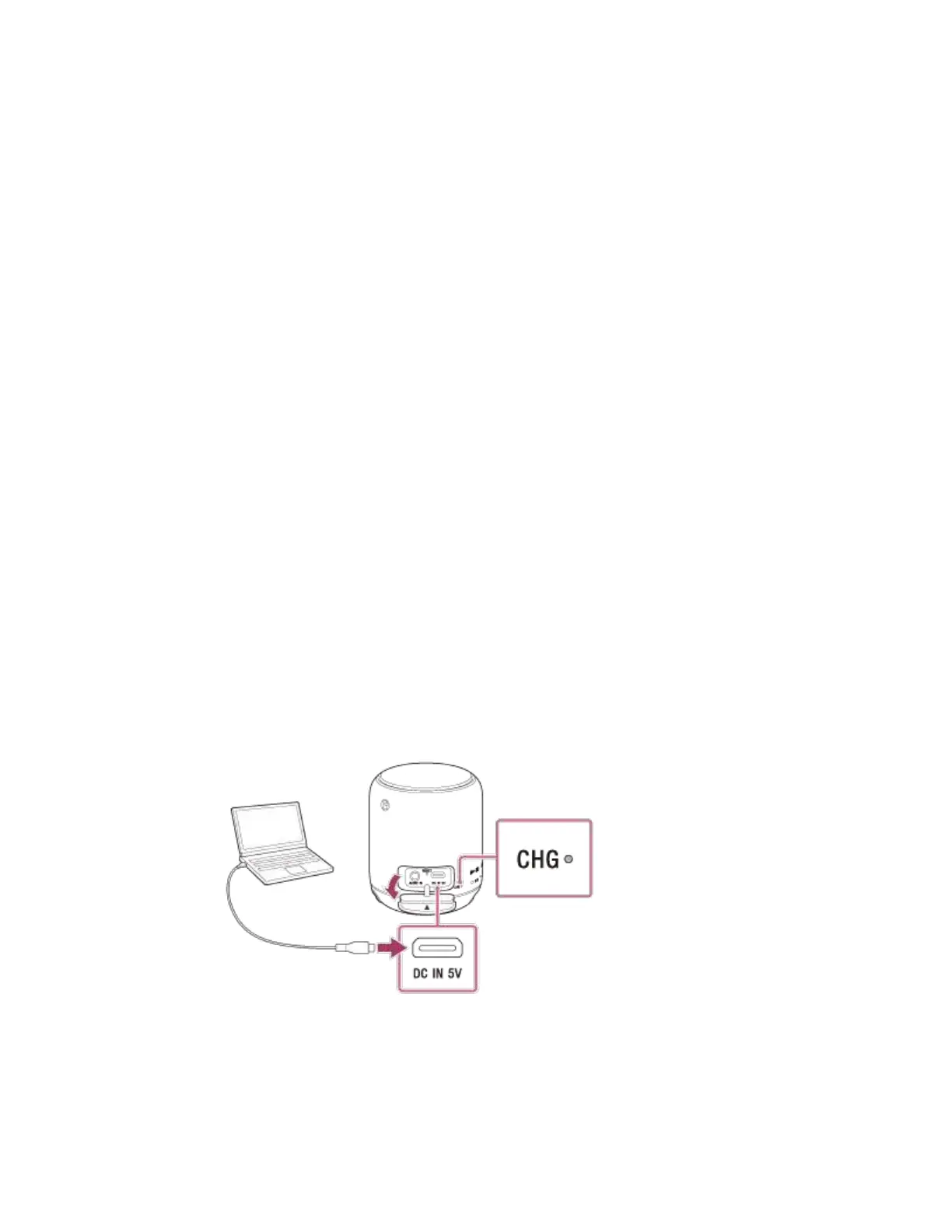

1. Make sure that the speaker is turned off.
2. Connect the speaker to a booted computer or AC outlet to charge.
o When charging from a booted computer
Connect the micro-USB cable (supplied) to the speaker, then connect the other end to a
booted computer.
o When charging from an AC outlet
Connect the micro-USB cable (supplied) to the speaker, connect the other end to a USB
AC adaptor (not supplied), then plug the USB AC adaptor to an AC outlet.

Sony SRS-XB10 Specifications

General

Driver diameter	46 mm
Number of speakers	1
Audio output channels	- channels
RMS rated power	- W
Wi-Fi	No
Frequency range	2.4 - 2.48 GHz
Bluetooth version	4.2
USB charging port	Yes
Bluetooth profiles	A2DP, AVRCP, HFP, HSP
Connectivity technology	Wired & Wireless
Product type	Mono portable speaker
Product color	Green
Product design	Tube
Volume control	Digital
International Protection (IP) code	IP5X
Recommended usage	Universal
Battery type	Built-in
Power source type	Battery
Battery life (max)	16 h

Weight and Dimensions

Width	75 mm
Height	91 mm
Weight	260 g
