Sony STR-DG810 User Manual

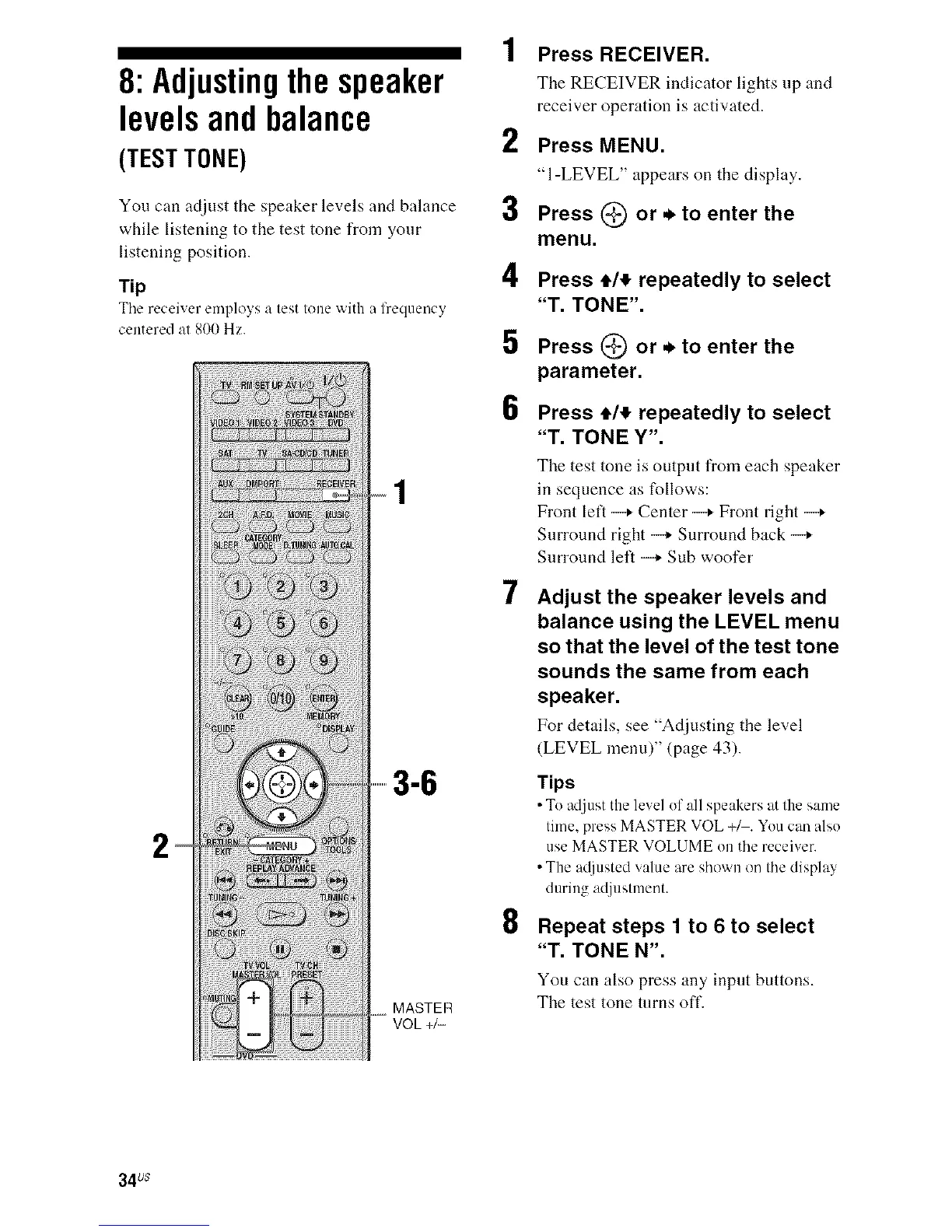

8: Adjustingthespeaker
levelsandbalance
(TEST TONE)
You can adjust the speaker levels and balance
while listening to the test tone from your
listening position.
Tip
Tilereceiver employs a test tone with a frequency
centered at 800 Hz.
-1
.............3-6
MASTER
"-- VOL +/-
2
3
4
5
6
7
8
Press RECEIVER.
The RECEIVER indicator lights up and
receiver operation is activated.
Press MENU.
"l-LEVEL" appears on the display.
Press @ or. to enter the
menu.
Press ,i,14,repeatedly to select
"T. TONE".
Press (_) or. to enter the
parameter.
Press ,i,14,repeatedly to select
"T. TONE Y".
The test tone is output from each speaker
in sequence as follows:
Front left -+ Center -+ Front right -+
Surround right -+ Surround back -+
Surround left _ Sub woofer
Adjust the speaker levels and
balance using the LEVEL menu
so that the level of the test tone
sounds the same from each
speaker.
For details, see "Adjusting tile level
(LEVEL menu)" (page 43).
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +1 . You can also
use MASTER VOLUME on tile receiver.
• The adjusted value are shown on the display
during ac[justment.
Repeat steps 1 to 6 to select
"T. TONE N".
You can also press any inpntbuttons.
The test tone tnrns oft'.
34us

Sony STR-DG810 Specifications

Audio Specifications

impedance	8 Ohm
channel power rating	110 Watts X 6 (8 Ohms, THD 1.0%)
sound fields	Cinema - 3; Music - 3; Auto Format Decoding - 11; 2 Channel - 1

Power

power requirements	AC 120V, 60 Hz
power consumption (in operation)	TBD
power consumption (in standby)	TBD

Inputs and Outputs

composite video input(s)	4 (1 Front, 3 Rear)
composite video output(s)	1 (Rear)
optical audio input(s)	2 (Rear)
optical audio output(s)	1 (Rear)
coaxial audio digital input(s)	1 (Rear)
RCA audio input(s)	7 (3 Dedicated, 4 Audio/Video)
RCA audio output(s)	2 (1 A/V Output, 1 Output)
subwoofer output(s)	1 (Rear)
antenna terminal (AM loop)	1 (Rear)
antenna terminal (FM 75 Ohm)	1 (Rear)
headphone output(s)	Yes (Front- Silver)
HD component video input(s)	3 (Rear)
HD component video output(s)	1 (Rear)
HDMI™ connection input(s)	3 (Rear)
HDMI™ connection output(s)	1 (Rear)

Weight and Dimensions

weight	Approx. 17 Lbs. 3 oz. (8Kg)
measurements	Approx. 17" x 6-1/5" x 12-3/8" (430x157.5x310mm)
