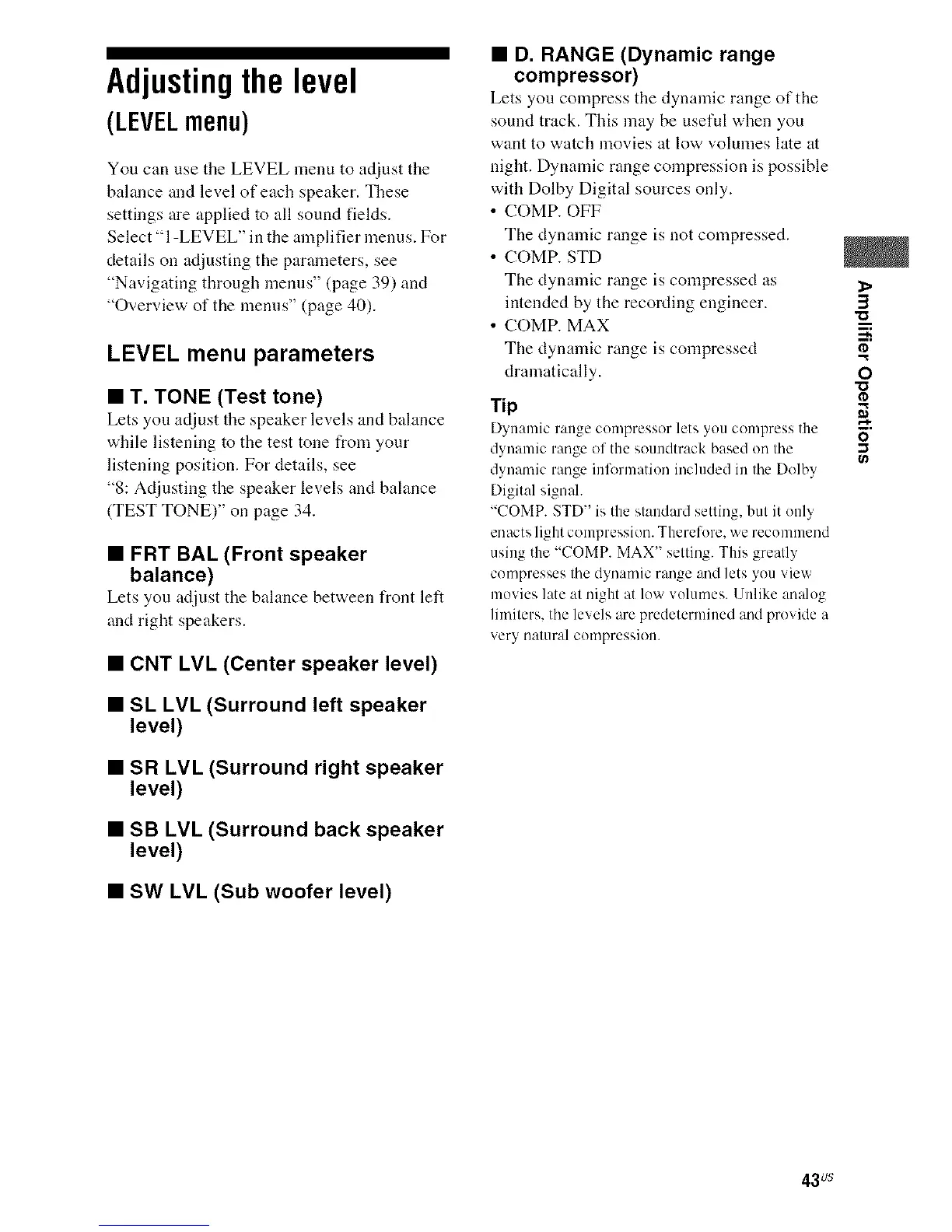

Adjustingthe level
(LEVELmenu)
You can use the LEVEL menu to adjust the
balance and level of each speaker. These
settings are applied to all sound fields.
Select "1 -LEVEL" in the amplifier menus. For
details on adjusting the parameters, see
"Navigating through menus" (page 39) and
"Overview of the menus" (page 40).
LEVEL menu parameters
• T. TONE (Test tone)
Lets you adjust the speaker levels and bahmce
while listening to the test tone from your
listening position. For details, see
"8: Adjusting the speaker levels and balance
(TEST TONE)" on page 34.
• FRT BAL (Front speaker
balance)
Lets you adjust tile bahmce between front left
and right speakers.
• CNT LVL (Center speaker level)
• SL LVL (Surround left speaker
level)
• SR LVL (Surround right speaker
level)
• SB LVL (Surround back speaker
level)
• SW LVL (Sub woofer level)
• D. RANGE (Dynamic range
compressor)
Lets you compress the dynamic range of the
sound track. This may be useful when you
want to watch movies at low volumes late at
night. Dynamic range compression is possible
with Dolby Digital sources only.
• COMP. OFF
The dynamic range is not compressed.
• COMP. STD
The dynamic range is compressed as
intended by the recording engineer.
• COMP. MAX
The dynamic range is compressed
dramatically.
Tip
Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signah
"COMP. STD" is the standard setting, but it only
enacts light compression. Therefore, we recommend
using the "COMP. MAX" setting. This greatly
compresses the dynamic range and lets you view
movies late at night at low volumes. Unlike analog
limiters, the levels are predetermined and provide a
very natural con/pression.
3
O
ID
43us

Sony STR-DG810 Specifications

Audio Specifications

impedance	8 Ohm
channel power rating	110 Watts X 6 (8 Ohms, THD 1.0%)
sound fields	Cinema - 3; Music - 3; Auto Format Decoding - 11; 2 Channel - 1

Power

power requirements	AC 120V, 60 Hz
power consumption (in operation)	TBD
power consumption (in standby)	TBD

Inputs and Outputs

composite video input(s)	4 (1 Front, 3 Rear)
composite video output(s)	1 (Rear)
optical audio input(s)	2 (Rear)
optical audio output(s)	1 (Rear)
coaxial audio digital input(s)	1 (Rear)
RCA audio input(s)	7 (3 Dedicated, 4 Audio/Video)
RCA audio output(s)	2 (1 A/V Output, 1 Output)
subwoofer output(s)	1 (Rear)
antenna terminal (AM loop)	1 (Rear)
antenna terminal (FM 75 Ohm)	1 (Rear)
headphone output(s)	Yes (Front- Silver)
HD component video input(s)	3 (Rear)
HD component video output(s)	1 (Rear)
HDMI™ connection input(s)	3 (Rear)
HDMI™ connection output(s)	1 (Rear)

Weight and Dimensions

weight	Approx. 17 Lbs. 3 oz. (8Kg)
measurements	Approx. 17" x 6-1/5" x 12-3/8" (430x157.5x310mm)
