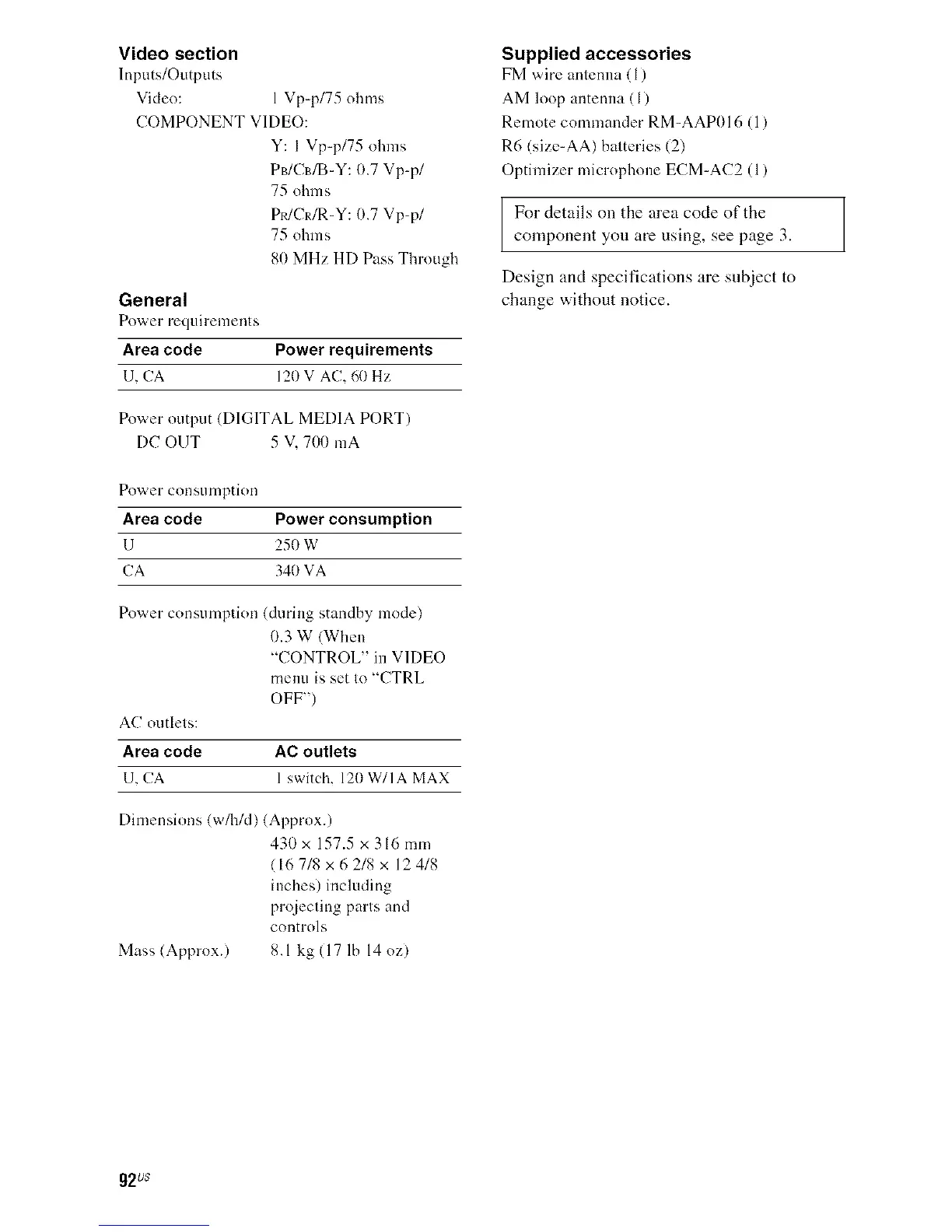

Video section
lnputs/OutlmtS
Video: 1Vp-p/75 ohms
COMPONENT VIDEO:
Y: I Vp-p/75 ohms
PB/CB/B-Y:0.7 Vp-p/
75 ohms
PR/CR/R-Y:0.7 Vp-p/
75 ohms
8(1MHz HD Pass Through
General
Power requirements
Area code Power requirements
U,CA 120V AC, 60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT 5 V, 7(3(tmA
Power COlIsumption
Area code Powerconsumption
U 250 W
CA 340VA
Power consumption (during standby mode)
0.3 W (When
"CONTROL" in VIDEO
melm is set to "CTRL
OFF")
AC outlets:
Area code AC outlets
U, CA 1switch, 120 W/IA MAX
Dimensions (w/h/d) (Approx.)
430 x 157.5 x 316 mm
(16718x6218x 12418
inches) including
projecting parts and
controls
Mass(Approx.) 8.1 kg (17 lb 14oz)
Supplied accessories
FM wire antenna (1)
AM loop antenna (1)
Remote commander RM -AAP016 (1)
R6 (size-AA) batteries (2)
Optimizer microphone ECM-AC2 (1)
For details on the area code of the
component you are using, see page 3.
Design and specifications are subject to
change without notice.
92us

Sony STR-DG810 Specifications

Audio Specifications

impedance	8 Ohm
channel power rating	110 Watts X 6 (8 Ohms, THD 1.0%)
sound fields	Cinema - 3; Music - 3; Auto Format Decoding - 11; 2 Channel - 1

Power

power requirements	AC 120V, 60 Hz
power consumption (in operation)	TBD
power consumption (in standby)	TBD

Inputs and Outputs

composite video input(s)	4 (1 Front, 3 Rear)
composite video output(s)	1 (Rear)
optical audio input(s)	2 (Rear)
optical audio output(s)	1 (Rear)
coaxial audio digital input(s)	1 (Rear)
RCA audio input(s)	7 (3 Dedicated, 4 Audio/Video)
RCA audio output(s)	2 (1 A/V Output, 1 Output)
subwoofer output(s)	1 (Rear)
antenna terminal (AM loop)	1 (Rear)
antenna terminal (FM 75 Ohm)	1 (Rear)
headphone output(s)	Yes (Front- Silver)
HD component video input(s)	3 (Rear)
HD component video output(s)	1 (Rear)
HDMI™ connection input(s)	3 (Rear)
HDMI™ connection output(s)	1 (Rear)

Weight and Dimensions

weight	Approx. 17 Lbs. 3 oz. (8Kg)
measurements	Approx. 17" x 6-1/5" x 12-3/8" (430x157.5x310mm)
