Sony STR-DH710 Service Manual

STR-DH710
12

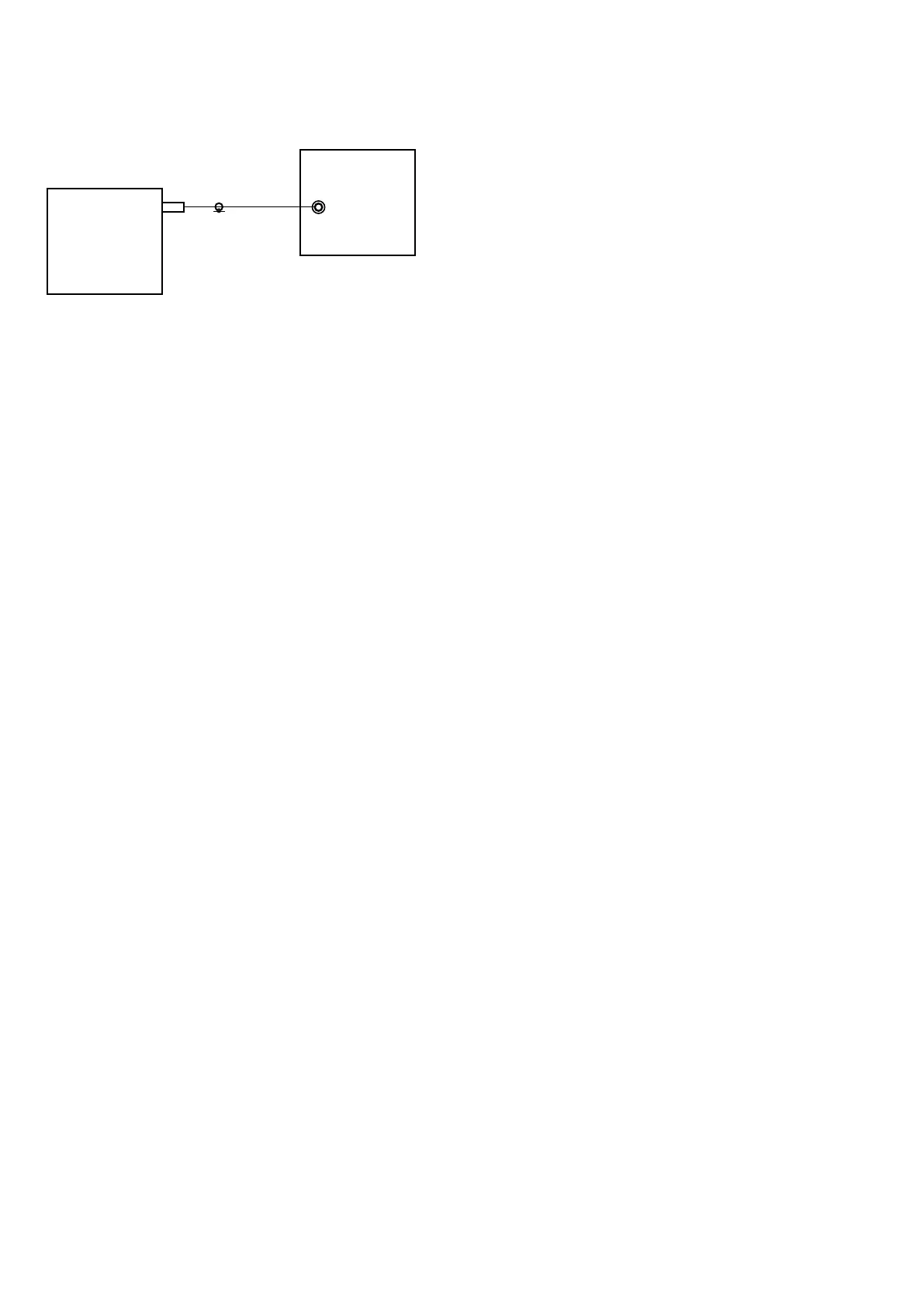

FM AUTO STOP CHECK
generator
OUT (75 Ω)
set
Procedure:
1. Turn on the set.
2. Input the following signal from Signal Generator to FM an-
tenna input directly.
* Carrier Frequency: A=87.5 MHz, B=98 MHz, C=108 MHz
Deviation : 75 kHz
Modulation : 1 kHz
ANT input : 35 dBu (EMF)
Note:
Please use 75 ohm “coaxial cable” to connect SG and the set. You
cannot use video cable for checking.
Please use SG whose output impedance is 75 ohm.
3. Set to FM tuner function and scan the input FM signal with
automatic scanning.
4. Confi rm that input Frequency of A, B and C are detected and
automatic scanning stops.
The stop of automatic scanning means “The station signal is
received in good condition.”
SECTION 3
FM TUNER CHECK

Sony STR-DH710 Specifications

General

Disc types supported	BD-R
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Display	FLD
AV output	1
Tuner type	Analog
Built-in HDD	No
TV tuner integrated	-
Apple docking compatibility	Not supported
3D	Yes
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
RMS rated power	- W
Audio output channels	7.1 channels
Subwoofer frequency range	40 - 200 Hz
Product color	Black
Receiver dimensions (WxDxH)	430 x 322 x 157.5 mm
HDMI in	3
SCART ports quantity	0
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	240 W
Package weight	10000 g

Weight and Dimensions

Receiver weight	8000 g
