Sony STR-DH710 Service Manual

61
STR-DH710
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

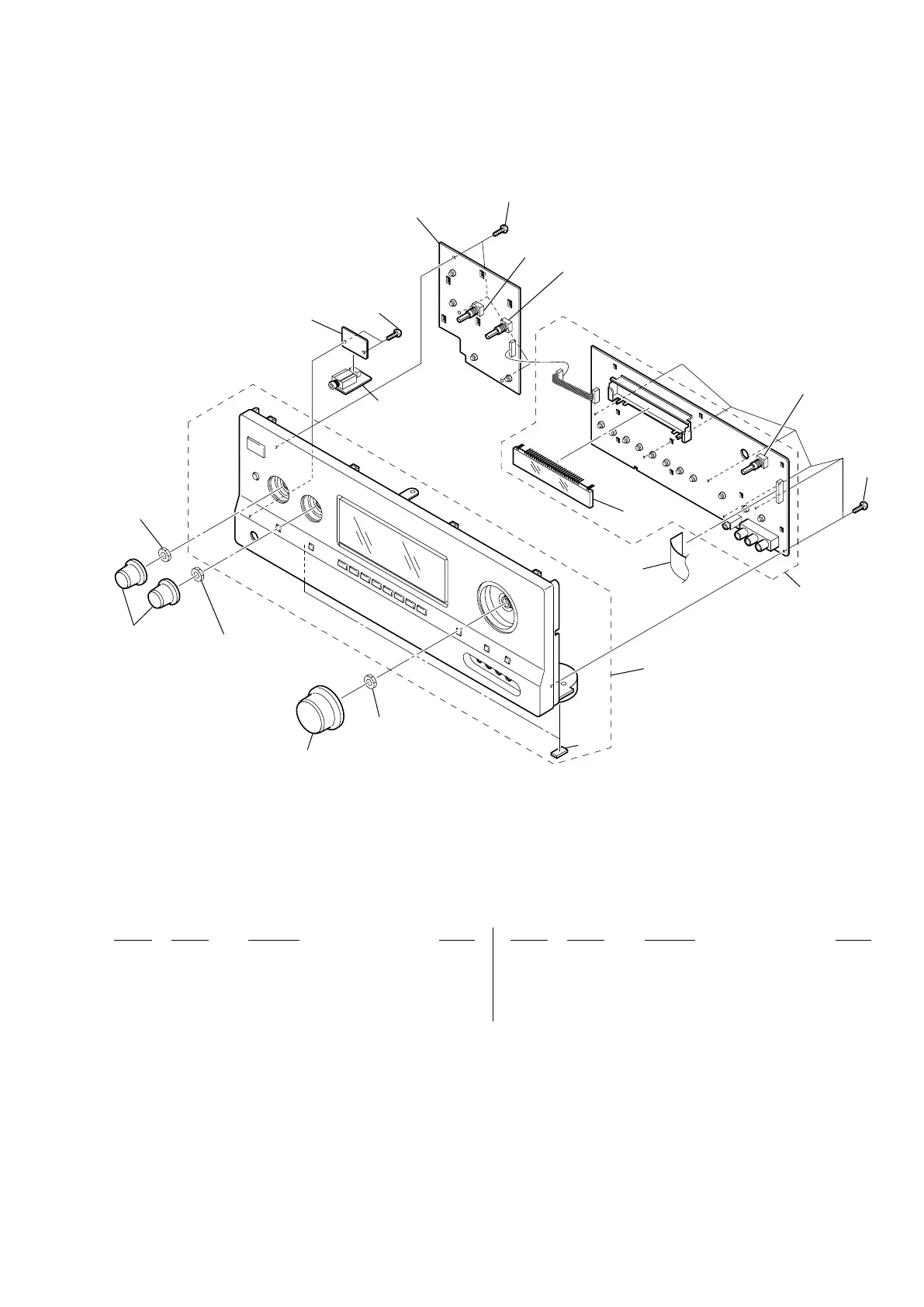

5-2. FRONT PANEL SECTION
supplied with
RV151
supplied with RV181
supplied with
RV180
53
54
51
52
ND151
55
56
55
55
57
not supplied
(HP SUPPORT board)
RV180
RV181
not supplied
(POWER KEY board)
not supplied
(HEADPHONE board)
RV151
51 X-2515-680-1 FRONT PANEL ASSY
52 4-977-358-01 CUSHION
53 4-124-321-01 KNOB, VOLUME (G53)
54 4-125-404-01 KNOB, MENU (G73)
55 3-087-053-01 +BVTP2.6 (3CR)
56 A-1747-559-A DISPLAY BOARD, COMPLETE
57 1-828-663-51 WIRE (FLAT TYPE) (27 CORE)
ND151 1-483-110-11 VACUUM FLOURESCENT DISPLAY
