Sony STR-DH710 Service Manual

STR-DH710
5
SET
1-4. DIGITAL BOARD
(Page 7)
1-5. MAIN BOARD SECTION
(Page 8)
1-1. CASE
(Page 5)
1-2. BACK PANEL SECTION
(Page 6)
1-3. FRONT PANEL SECTION
(Page 6)
SECTION 1
DISASSEMBLY
Note:
This set can be disassemble according to the following sequence.
Note:
Follow the disassembly procedure in the numerical order given.

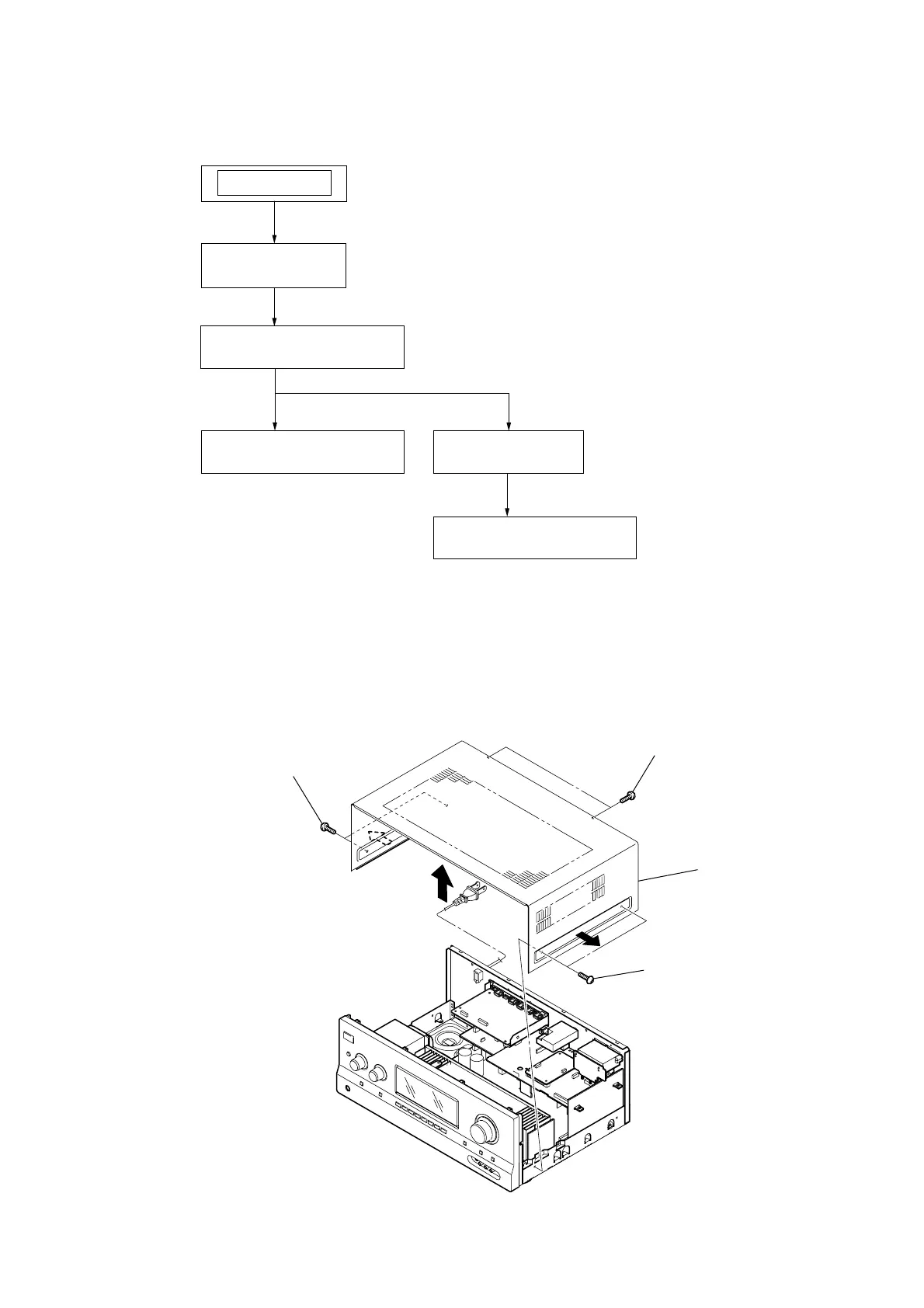

1-1. CASE
 case
 two screws
(+BVTP 3 × 8)
 two screws
(+BVST 4 x 8)
 two screws
(+BVST 4 x 8)

Sony STR-DH710 Specifications

General

Disc types supported	BD-R
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Display	FLD
AV output	1
Tuner type	Analog
Built-in HDD	No
TV tuner integrated	-
Apple docking compatibility	Not supported
3D	Yes
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
RMS rated power	- W
Audio output channels	7.1 channels
Subwoofer frequency range	40 - 200 Hz
Product color	Black
Receiver dimensions (WxDxH)	430 x 322 x 157.5 mm
HDMI in	3
SCART ports quantity	0
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	240 W
Package weight	10000 g

Weight and Dimensions

Receiver weight	8000 g
