Sony STR-DH710 Service Manual

63
STR-DH710
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

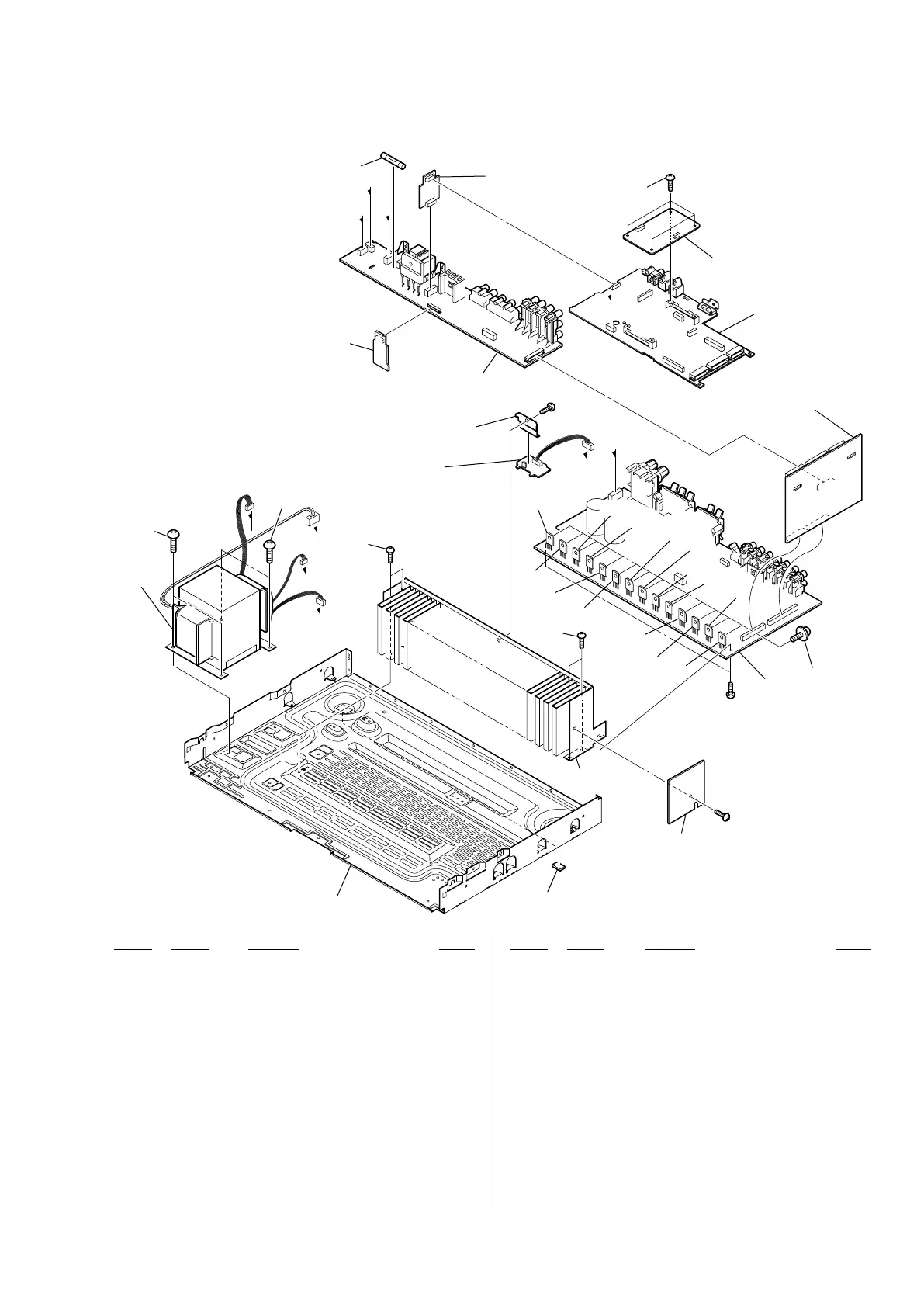

5-4. CHASSIS SECTION
151 A-1747-556-A MAIN BOARD, COMPLETE
152 3-905-609-31 SCREW (TRANSISTOR)
153 4-977-358-01 CUSHION
154 4-249-675-01 +BV SUMITITE S 4X6 ROUND
155 A-1747-557-A VIDEO STANDBY BOARD, COMPLETE
156 3-087-053-01 +BVTP2.6 (3CR)
157 A-1747-566-A DIGITAL BOARD, COMPLETE
158 A-1767-377-A DSP BOARD
0
F901 1-533-311-12 FUSE, GLASS (DIA.5) 8A 125V
Q503 6-702-390-01 IC MN2488-OPY-MK
Q504 6-702-391-01 IC MP1620-OPY-MK
Q553 6-702-390-01 IC MN2488-OPY-MK
Q554 6-702-391-01 IC MP1620-OPY-MK
Q603 6-702-390-01 IC MN2488-OPY-MK
Q604 6-702-391-01 IC MP1620-OPY-MK
Q653 6-702-390-01 IC MN2488-OPY-MK
Q654 6-702-391-01 IC MP1620-OPY-MK
Q703 6-702-390-01 IC MN2488-OPY-MK
Q704 6-702-391-01 IC MP1620-OPY-MK
Q753 6-702-390-01 IC MN2488-OPY-MK
Q754 6-702-391-01 IC MP1620-OPY-MK
Q853 6-702-390-01 IC MN2488-OPY-MK
Q854 6-702-391-01 IC MP1620-OPY-MK
0
T901 1-445-797-11 POWER TRANSFORMER (US)
0
T901 1-445-824-11 POWER TRANSFORMER (CND)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
"
#
$
%
not supplied
(TEMP-SENSOR board)
not supplied
(DIGITAL SUPPLY
CONN PC board)
not supplied
(CONNECTION board)
151
155
157
158
156
152
153
154
T901
Q853
Q854
Q554
Q553
Q604
Q603
Q654
Q653
Q754
Q753
Q704
Q703
not supplied
(HEAT INSULATION board)
not supplied
not supplied
#1
#1
#1
#1
#1
not supplied
(DIGITAL CONN board)
not supplied
Q504
Q503
"
$
%
#
&
&
154
F901

Sony STR-DH710 Specifications

General

Disc types supported	BD-R
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Display	FLD
AV output	1
Tuner type	Analog
Built-in HDD	No
TV tuner integrated	-
Apple docking compatibility	Not supported
3D	Yes
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
RMS rated power	- W
Audio output channels	7.1 channels
Subwoofer frequency range	40 - 200 Hz
Product color	Black
Receiver dimensions (WxDxH)	430 x 322 x 157.5 mm
HDMI in	3
SCART ports quantity	0
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	240 W
Package weight	10000 g

Weight and Dimensions

Receiver weight	8000 g
