Sony STR-DH710 Service Manual

2
STR-DH710
AM tuner section
Tuning range
Area code Tuning scale
10 kHz step 9 kHz step
US, CND 530 kHz – 531 kHz –
1,710 kHz 1,710 kHz
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency 450 kHz
Video section
Inputs/Outputs
Video: 1 Vp-p/75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
PB/CB: 0.7 Vp-p, 75 ohms
PR/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
Power output (DIGITAL MEDIA PORT)
DC OUT: 5 V, 0.7 A MAX
Power consumption
Area code Power consumption
US, CND 240 W
Dimensions (width/height/depth) (Approx.)
17 in × 6 1/4 in × 12 3/4 in (430 mm × 157.5 mm ×
322 mm) including projecting parts and controls
Mass (Approx.) 17 lb 11 oz (8.0 kg)

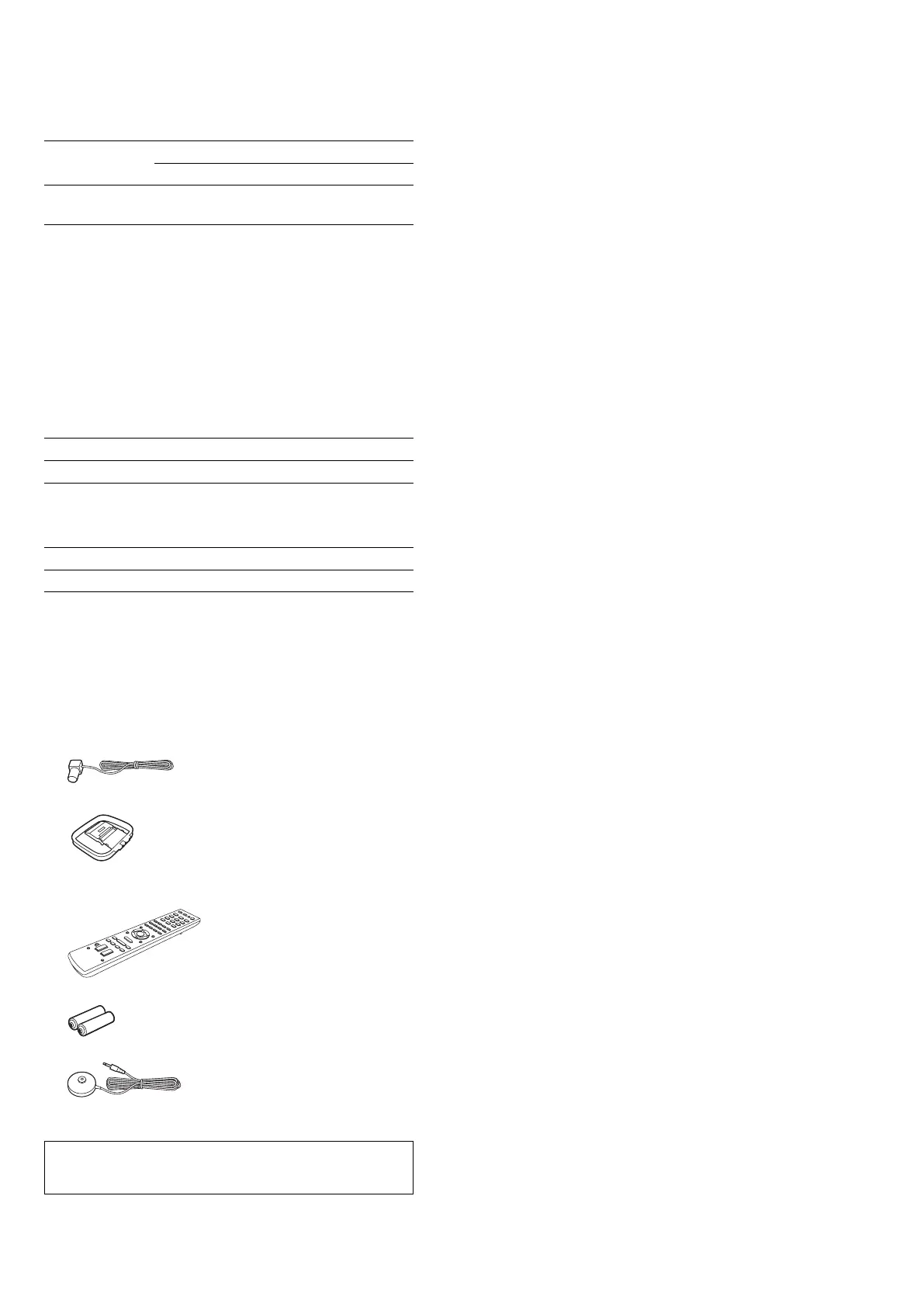

Supplied accessories
• Operating Instructions
• Quick Setup Guide
• FM wire antenna (aerial) (1)
• AM loop antenna (aerial) (1)
• Remote commander (1)
– RM-AAU073 (Models of area code US, CND only)
• R6 (size-AA) batteries (2)
• Optimizer microphone (ECM-AC2) (1)
Design and specifi cations are subject to change without notice.
• Standby power consumption: 0.3 W
• Halogenated fl ame retardants are not used in the certain printed wir-
ing boards.
• Abbreviation
CND : Canadian model

Sony STR-DH710 Specifications

General

Disc types supported	BD-R
Number of optical discs	1 discs
Optical disc player type	Blu-Ray player
Display	FLD
AV output	1
Tuner type	Analog
Built-in HDD	No
TV tuner integrated	-
Apple docking compatibility	Not supported
3D	Yes
Audio decoders	Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD, DTS, DTS Neo:6, DTS-ES, DTS-ES (Discrete 6.1), DTS-ES (Matrix 6.1), DTS-HD
RMS rated power	- W
Audio output channels	7.1 channels
Subwoofer frequency range	40 - 200 Hz
Product color	Black
Receiver dimensions (WxDxH)	430 x 322 x 157.5 mm
HDMI in	3
SCART ports quantity	0
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	240 W
Package weight	10000 g

Weight and Dimensions

Receiver weight	8000 g
