Getting Started
The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• The COMPONENT VIDEO IN 3 jacks have been
assigned to the satellite tuner. If you connect your
satellite tuner to the COMPONENT VIDEO IN 1
or IN 2 jacks, set “Input Assign” in the Input
Option menu (page 109).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.

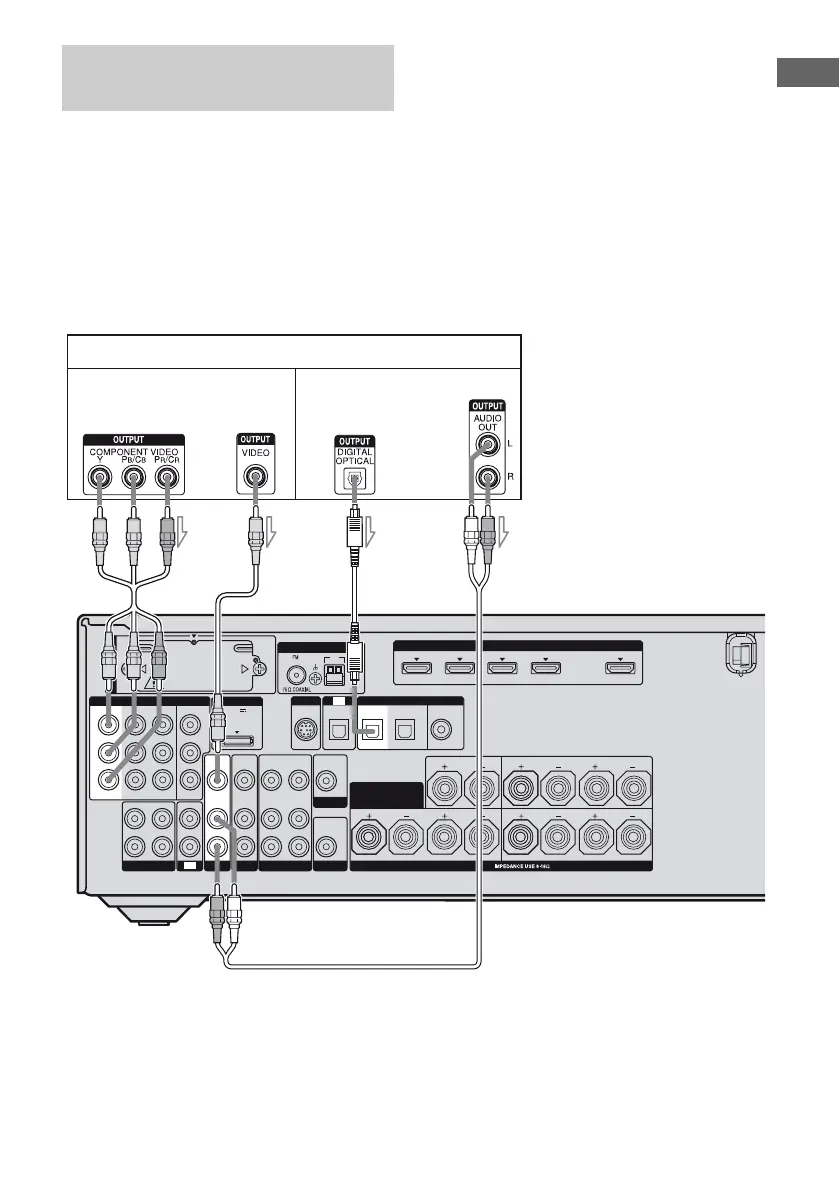

Connecting a satellite tuner,
set-top box
LR
VIDEO
OUT
MONITOR
L
R
DC5V
0.7A MAX
HDMI
ANTENNA
DMPORT
IN 4
ASSIGNABLE (INPUT ONLY)
IN 2
IN 3
IN 1
OUT
AM
OUT
IN
OUT
SA-CD/CD/CD-R
VIDEO 1
IN
TV
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
OPTICAL IN
AUDIO
IN
VIDEO
IN
SUBWOOFER
AUDIO
IN
VIDEO
IN
BD
LR
L
R
SPEAKERS
CENTER
FRONT A
SURROUND BACK/
FRONT B/
BI-AMP
TV
SIRIUS
LR
SURROUND
AUDIO
IN
DIGITAL
(ASSIGNABLE)
SAT IN BD IN
DVD IN
OPTICAL
COAXIAL
(for AUDIO)
EZW-T100
Y
P
B
/
C
B
P
R
/
C
R
MONITOR
ASSIGNABLE (INPUT ONLY)
IN 3
COMPONENT VIDEO
IN 2
IN 1
VIDEO
IN
SAT
BA
Video signals Audio signals
C
Satellite tuner, Set-top box
D
A Component video cord (not supplied)
B Video cord (not supplied)
C Optical digital cord (not supplied)
D Audio cord (not supplied)
