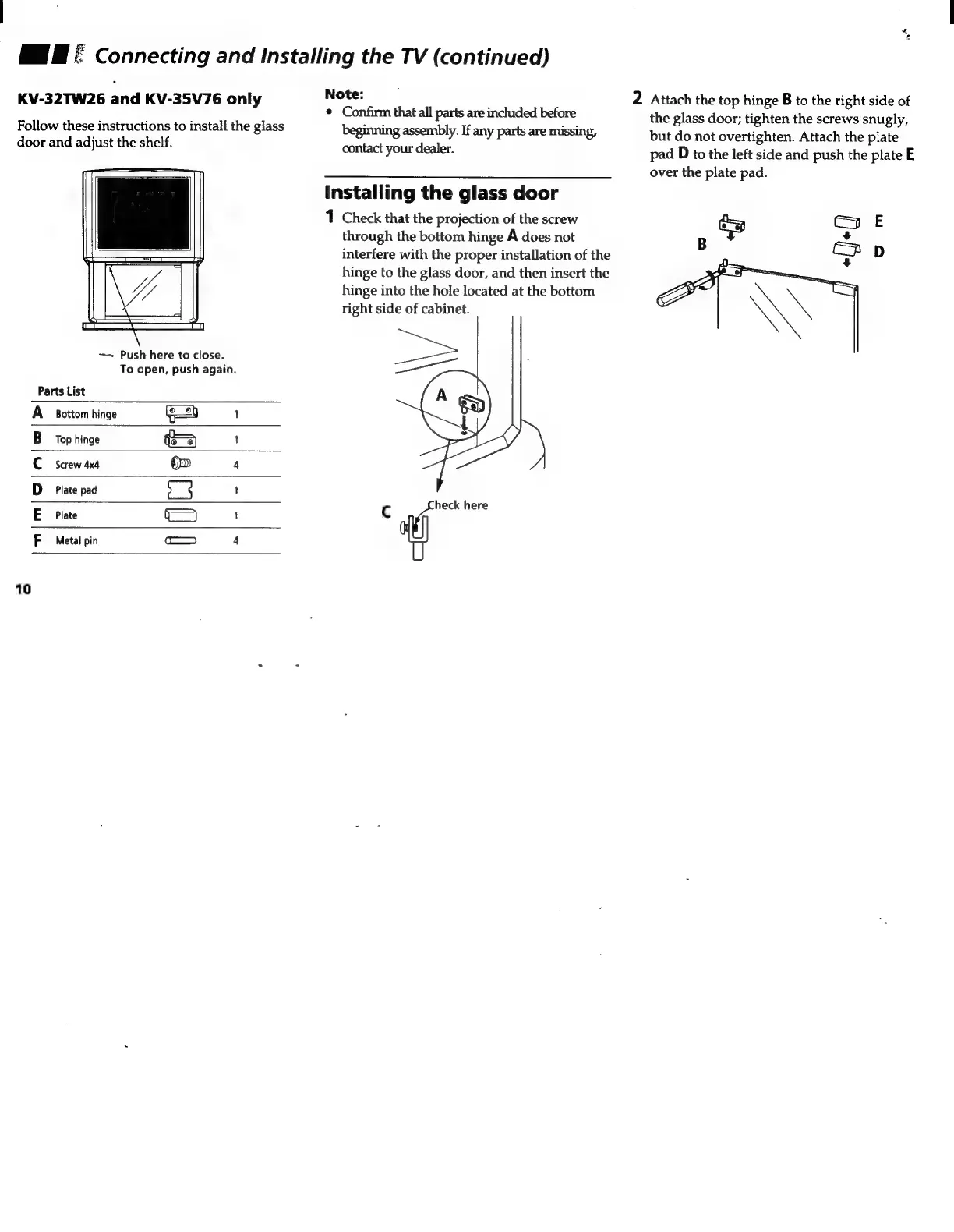

MH E Connecting and Installing the TV (continued)
KV-32TW26 and KV-35V76 only Note: f 2 Attach the top hinge B to the right side of
Follow these instructions to install the glass m inni an bi DRAR pied the glass door; tighten the screws snugly,
door and adjust the shelf 8 beginning assembly. If any parts are missing, but do not overtighten. Attach the plate
l l contact your dealer. pad D to the left side and push the plate E
over the plate pad.
Installing the glass door
1 Check that the projection of the screw
through the bottom hinge A does not
interfere with the proper installation of the
hinge to the glass door, and then insert the
hinge into the hole located at the bottom
right side of cabinet.
=
~~ Push here to close.
To open, push again.
Parts List
Bottom hinge
Top hinge
-2
Screw 4x4 © 4
D
—
Plate pad
heck here
A
Plate
nmim|Ola|wl yp
Metal pin
10
