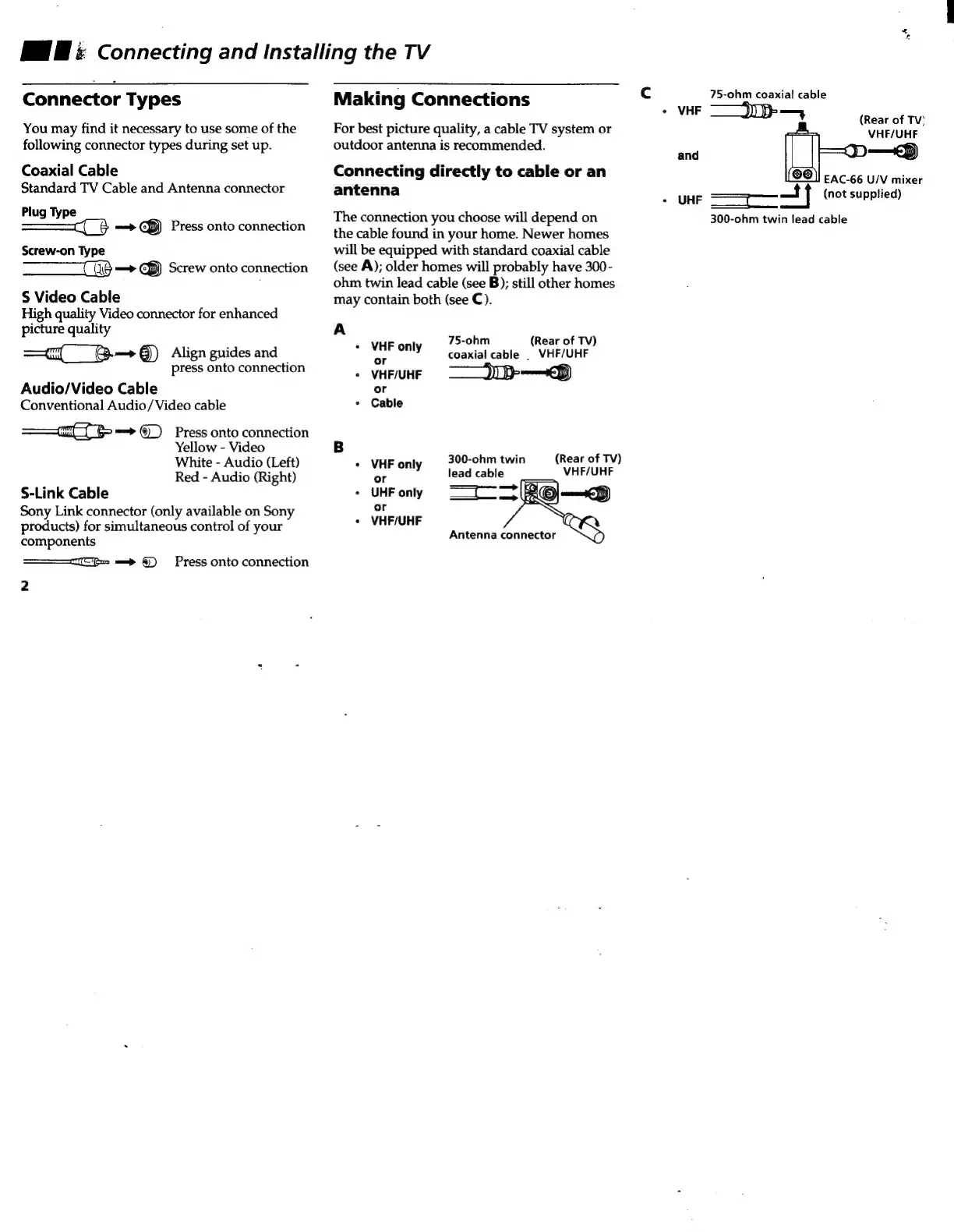

MIB i: Connecting and Installing the TV
Connector Types
You may find it necessary to use some of the
following connector types during set up.
Coaxial Cable
Standard TV Cable and Antenna connector
Plug Type
ap Press onto connection
Screw-on Type
cae Screw onto connection
S Video Cable
High quality Video connector for enhanced
picture quality
=m @—> @) Align guides and
press onto connection
Audio/Video Cable
Conventional Audio/Video cable
=A B — © Press onto connection
Yellow - Video
White - Audio (Left)
Red - Audio (Right)
S-Link Cable
Sony Link connector (only available on Sony
products) for simultaneous control of your
components
=~ = ©) Press onto connection
2
(l 75-ohm coaxial cable
Making
Connections
ar
—
(Rear of TV:
VHF/UHF
and 1] ~D
For best picture quality, a cable TV system or
outdoor antenna is recommended.
Connecting directly to cable or an
EAC-66 U/V mixer
antenna
<. UHF — Í (not supplied)
The connection you choose will depend on 300-ohm twin lead cable
the cable found in your home. Newer homes
will be equipped with standard coaxial cable
(see A); older homes will probably have 300-
ohm twin lead cable (see B); still other homes
may contain both (see C).
A
E 75-ohm (Rear of TV)
aki only coaxial cable | VHF/UHF
. VHF/UHF —D)
or
« Cable
g 300-ohm twi (R f TV)
< VHF oni -ohm twin ear o
or ony lead cable VHF/UHF
* UHFony ZIZ — C)
or
. VHF/UHF
Antenna connector
