Sony XR-C5200 Service Manual

– 10 –

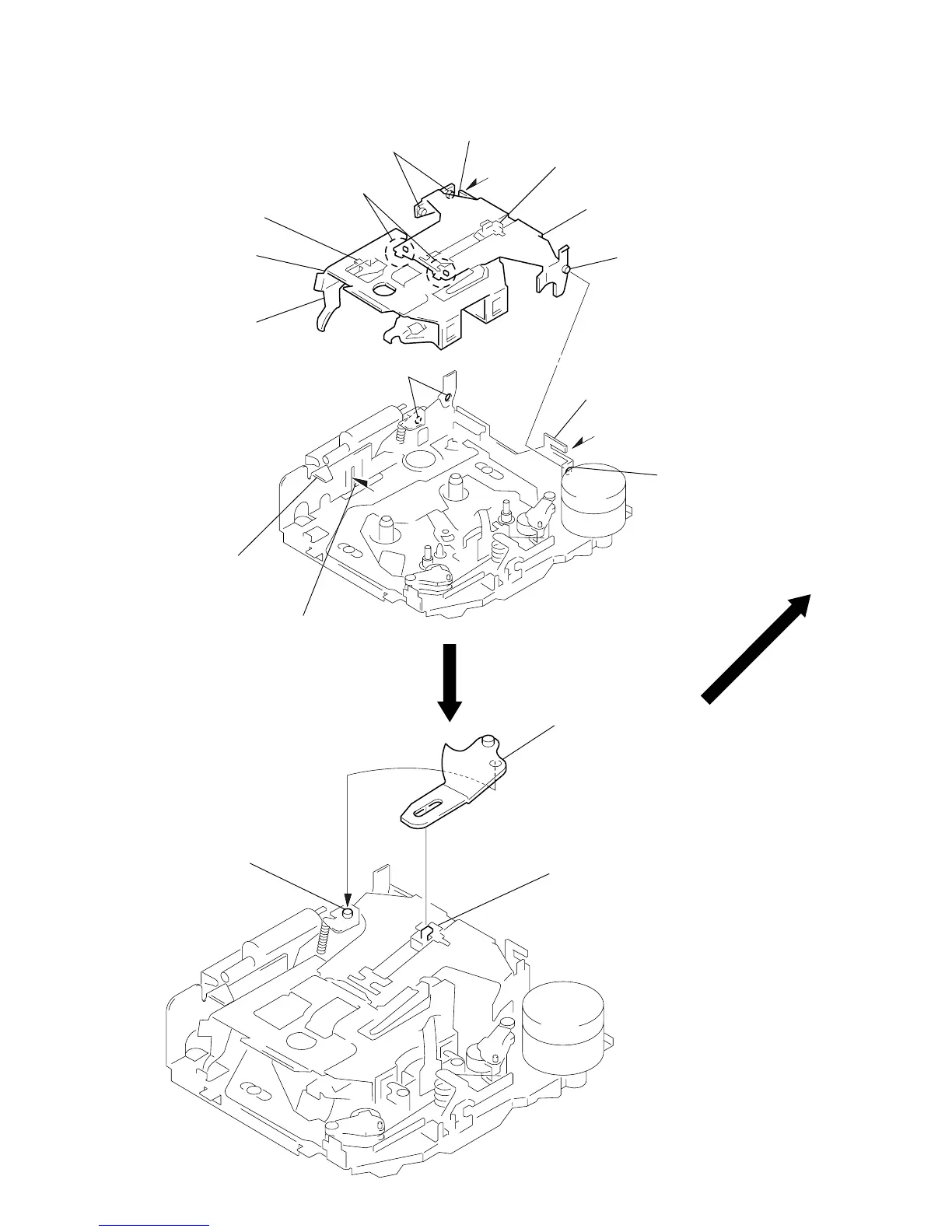

SECTION 3
ASSEMBLY OF MECHANISM DECK
HOUSING
ARM (SUCTION)
Note: Follow the assembly procedure in the numerical order given.
A part
C part
B part
D part
8 Hold the hanger by
bending the claw.
6 Fit projection on D part.
4 Fit claw on B part.
3 Put the housing
under A part.
5 Fit projection on C part.
1 Install the catch to the hanger.
2 Install the hanger onto
two claws of the housing.
7 Holder the hanger by bending the claw.
hanger
housing
2 Move the arm (suction) in the arro
w
direction and fit on projection.
1 Fit the arm (suction) on the shaft.
projection
