Page #22 background imageLoading...
Page #22 background image
XR-C5200
– 25 –
– 26 –
• Semiconductor
Location
(Component Side)
Ref. No. Location
D902 B-12
D903 B-12
D904 B-11
D951 C-9
Q945 C-2

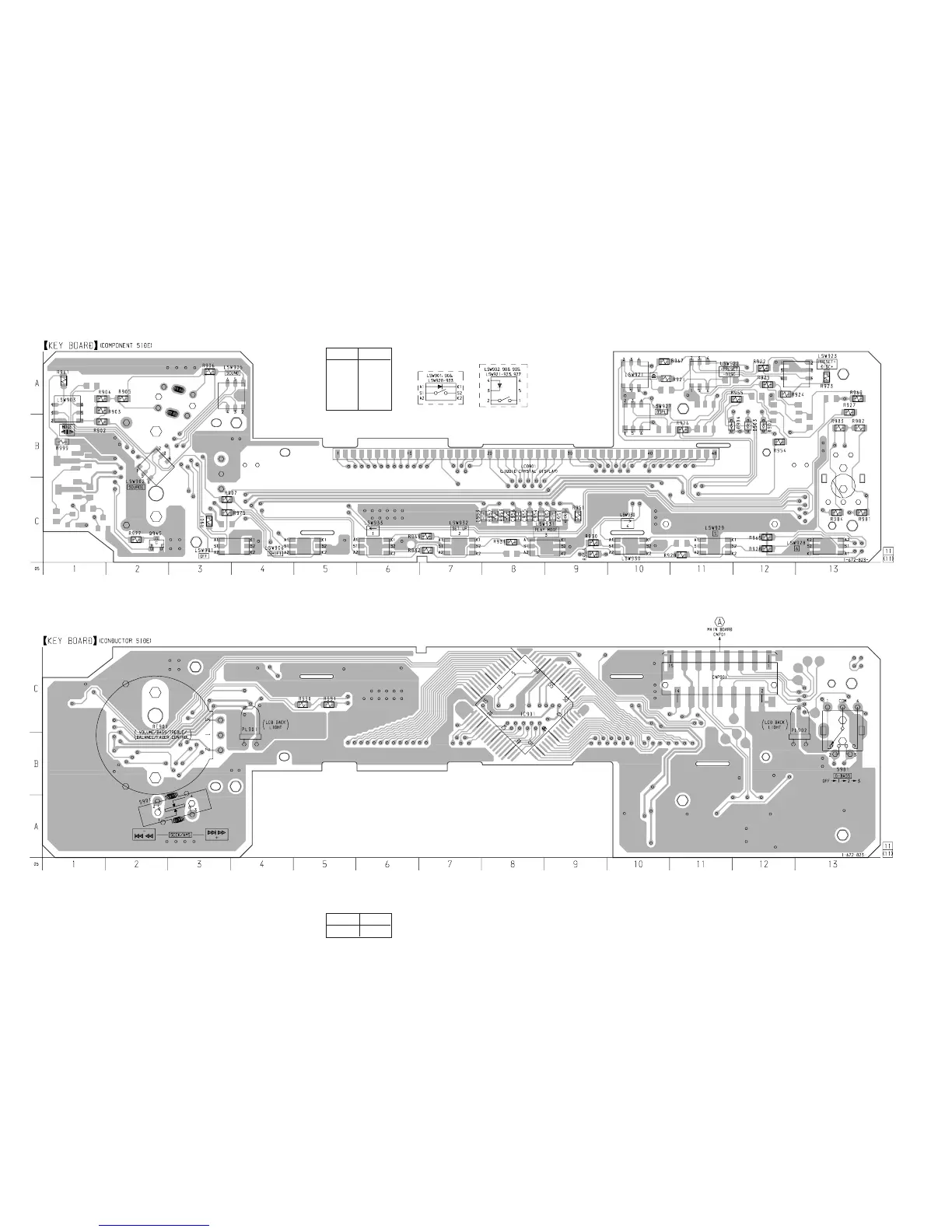

6-5. PRINTED WIRING BOARD – KEY Board –
• Semiconductor
Location
(Conductor Side)
Ref. No. Location
IC901 C-8
(Page 19)
