– 34 –

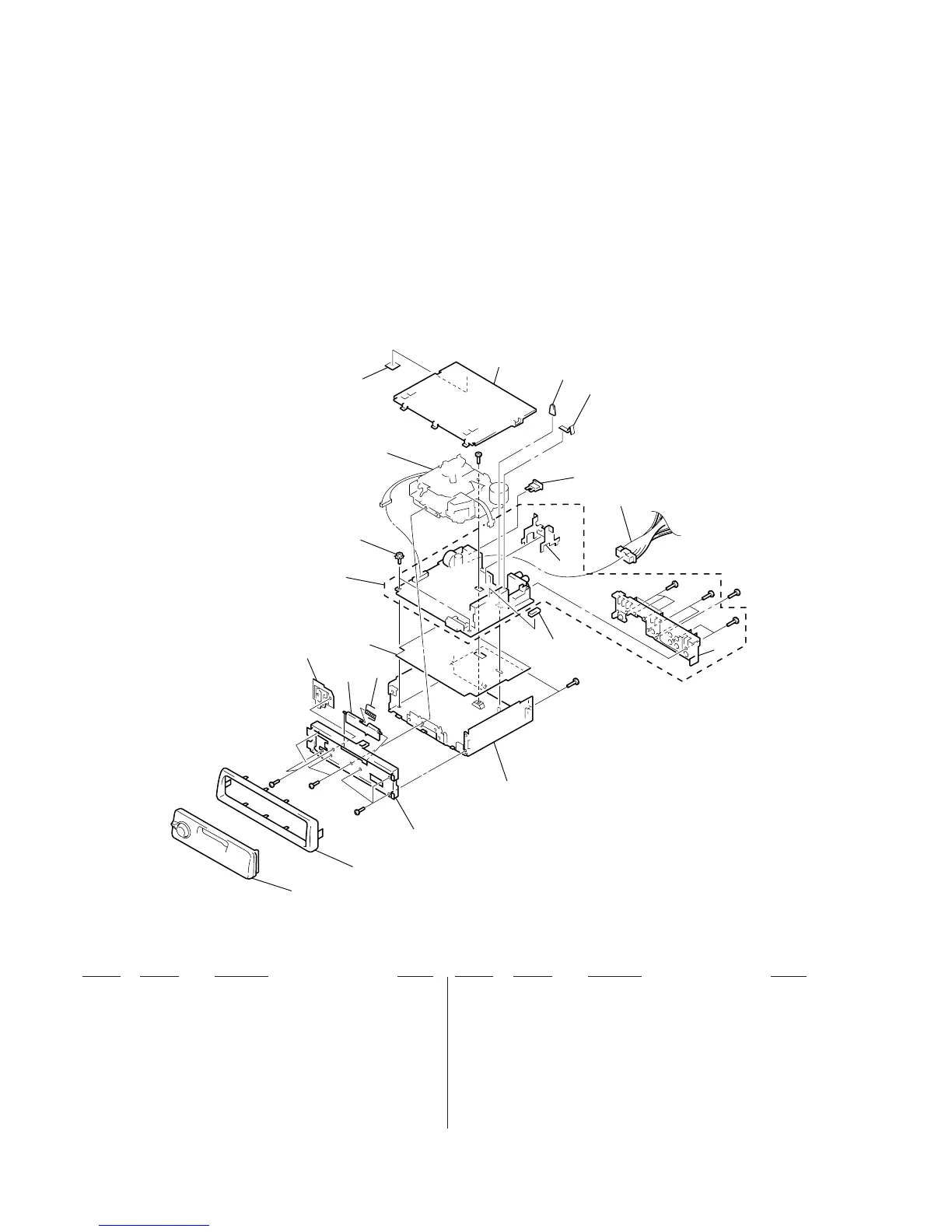

(1) CHASSIS SECTION
SECTION 7
EXPLODED VIEWS
Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
The mechanical parts with no reference num-
ber in the exploded views are not supplied.
Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
-XX and -X mean standardized parts, so they
may have some difference from the original
one.
Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-031-022-01 PANEL, SUB
2 3-935-003-01 SPRING, TORSION
3 3-027-437-31 DOOR, CASSETTE
4 X-3367-636-1 LOCK ASSY
* 5 3-033-846-01 INSULATED PLATE
* 6 A-3317-520-A MAIN BOARD, COMPLETE
7 3-915-923-01 SCREW, GROUND POINT
* 8 X-3373-270-1 COVER ASSY
9 1-776-207-82 CORD (WITH CONNECTOR) (POWER)
* 10 3-018-390-01 BRACKET (IC)
* 11 3-031-023-11 HEAT SINK
12 3-935-014-01 CUSHION (U)
* 13 3-009-813-42 CHASSIS
14 3-012-859-01 CAP (25), RUBBER
15 3-937-650-01 PLATE (C), GROUND
16 3-018-384-01 COLLAR
F781 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) (10A)
Front panel ass’y
#2
#2
#2
#4
#2
#2
#2
#1
16
1
13
2
4
5
3
6
10
9
7
8
14
15
MG-25F-136
not supplied
#3
F781
12
11
