4-8. CN-3825 Board
Preparation
1. Remove the front panel. (Refer to “4-2. Front Panel”)
2. Remove the front board. (“4-6. Front Board”)
Tip
Remove as many front boards as needed to easily remove the screws for removing of the SW panel.
Procedure

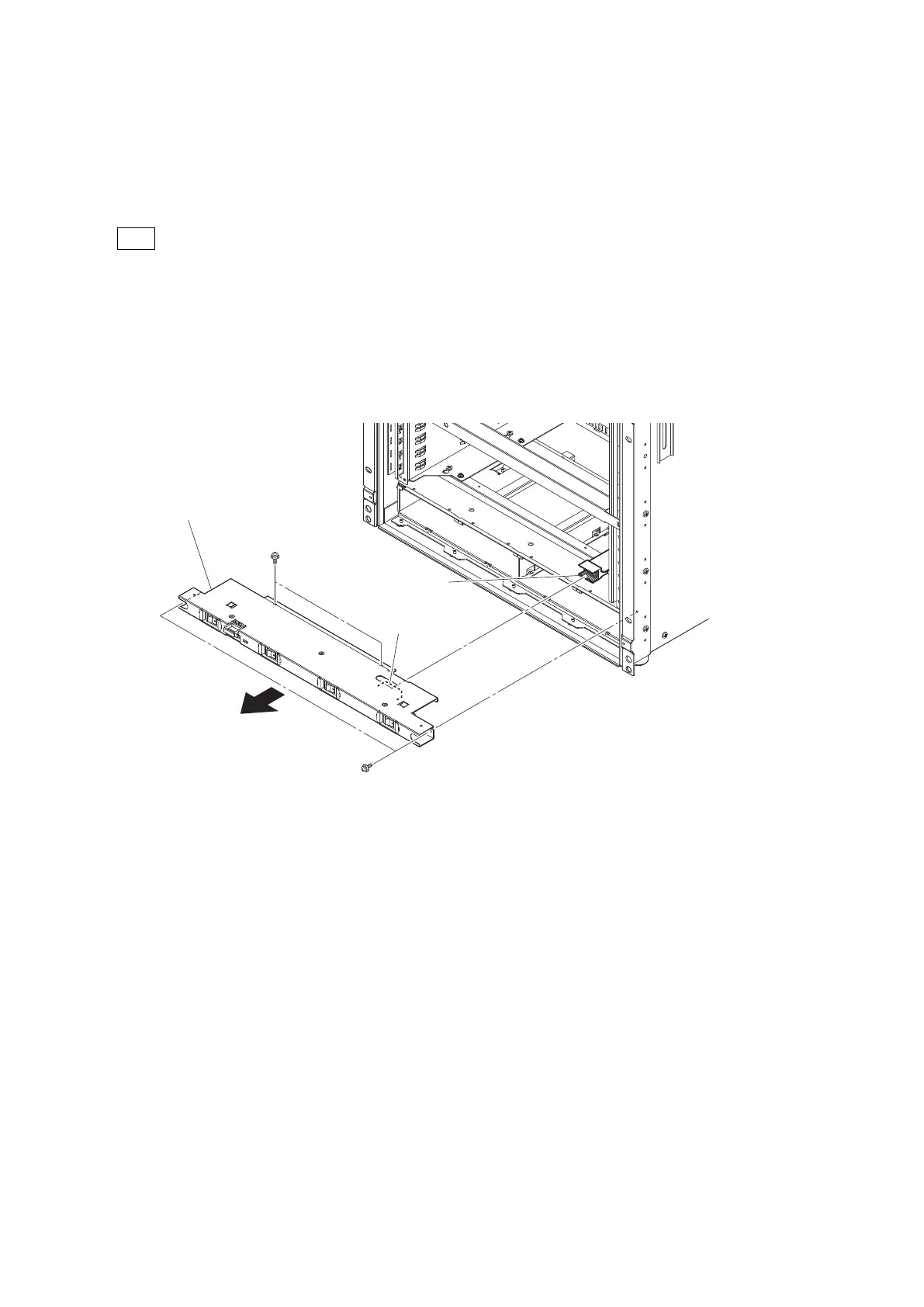

1. Remove the SW panel.
(1) Remove the four screws.
(2) Draw the SW panel to the arrow, disconnect the connector (CN005) on the CN-3825 board from the connector
on the CN-3826 board.
PSW3 x 6
SW panel
CN005
(CN-3825 board)
Connector
(CN-3826 board)
PSW3 x 6
XVS-8000-C/XVS-8000
4-14
