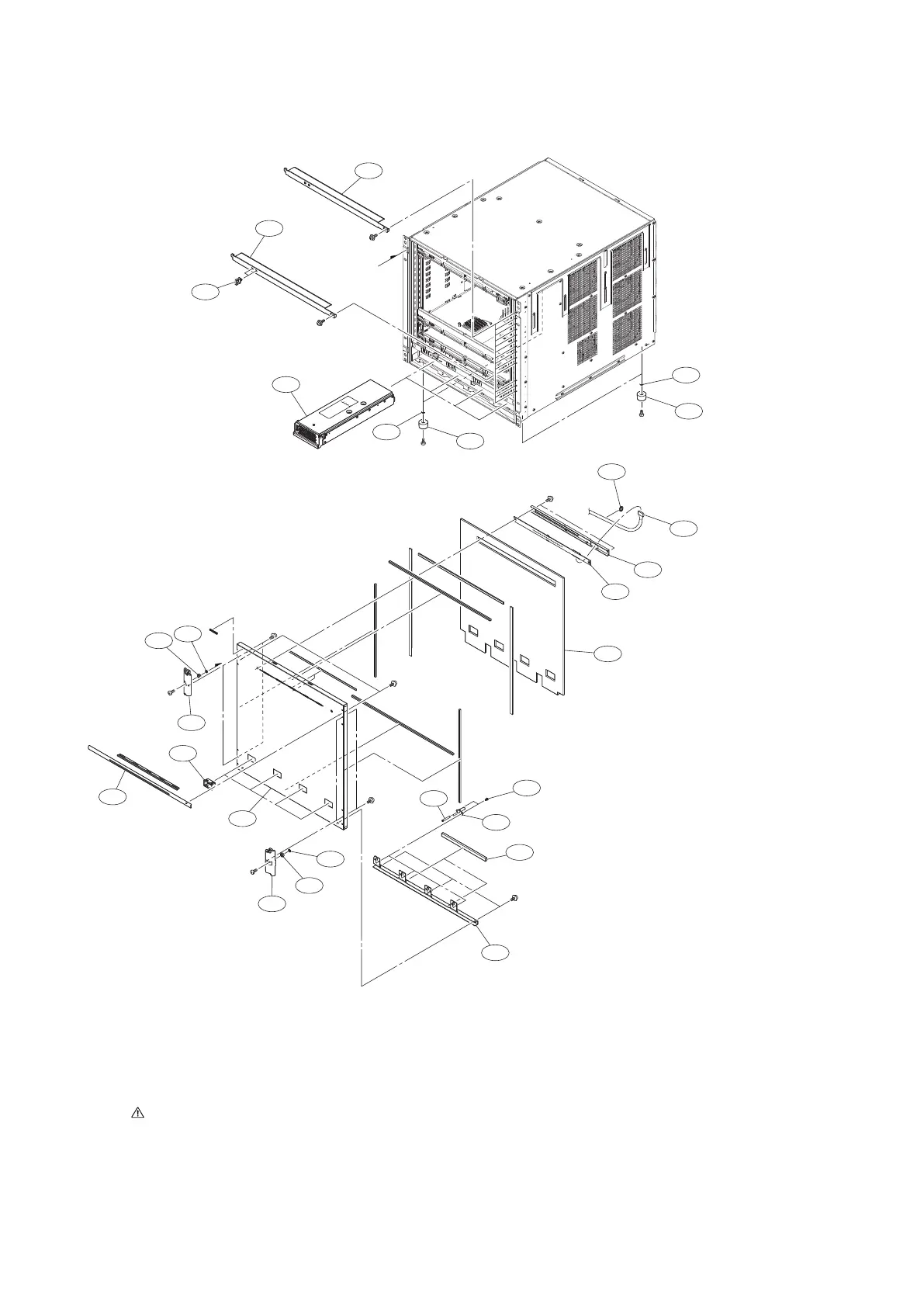

7-2. Exploded Views
Front Panel and Switching Regulator
PSW
3 x 6
PSW3 x 6
PSW
3 x 6
PSW3 x 6
PS2 x 4
PS3 x 6
PS
3 x 6
B4 x 10
B4 x 10
B4 x 10
B4 x 10
2
2
6
4
3
7
3
8
5
19
16
20
15
13
17
7
7
9
9
10
10
11
18
12
14
1
7
No. Part No. SP Description
1 A-2082-235-A s MOUNTED CIRCUIT BOARD, FP-255
2 A-2107-154-A s FRONT BLANK ASSY
3 X-3605-751-1 s FOOT ASSY
4 1-474-652-11 s REGULATOR, SWITCHING
5 1-971-159-12 s HARNESS, SUB CN3825-FP
6 3-172-089-01 o HANDLE
7 3-650-537-01 s WASHER
8 3-655-653-01 s BAND (TAITON), BINDING
9 3-994-237-01 s SPACER
No. Part No. SP Description
10 4-170-582-02 s BRACKET, PANEL
11 4-183-472-01 s ESCUTCHEON
12 4-549-457-11 s PANEL (SIU), BAR
13 4-586-400-01 s CUSHION, FRONT PSU
14 4-586-401-01 s LIGHT, GUIDE
15 4-586-402-01 s HOLDER
16 4-586-403-01 s FILTER
17 4-586-404-01 s BRACKET (FRP)
18 4-586-405-01 s PANEL, FRONT
19 4-586-406-01 s BRACKET, BAR
XVS-8000-C/XVS-8000
7-2
