Sony XVS-8000-C User Manual

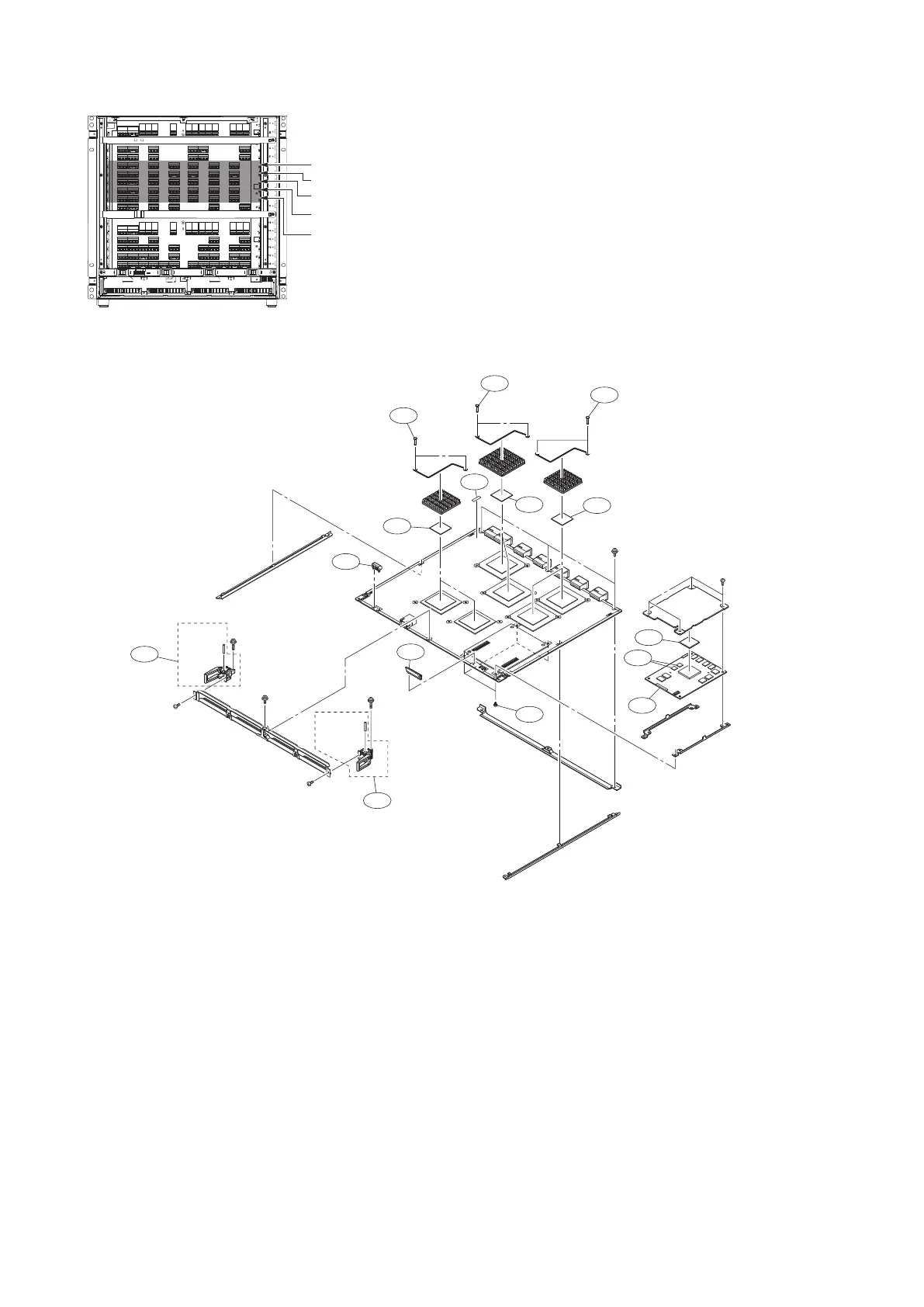

MIX-57 Board
Frontview
SLOTNo.6
SLOTNo.7
SLOTNo.8
SLOTNo.9
SLOTNo.10
PIN
3 x 18
PIN
3 x 18
P3 x 6
P3 x 6
PSW3 x 14
PSW
3 x 14
PSW
3 x 6
PSW3 x 6
B3 x 10
603
603
608
601
602
607
607
607
606
604
609
605
605
605
610
No. Part No. SP Description
601 A-1771-682-A s ASSY, 7SEG
602 A-1771-683-A s ASSY, PBS
603 X-2583-078-2 s BOARD LEVER GF ASSY
604 1-857-571-12 s PC BOARD, MOUNT(CPU-DP MODULE)
605 4-143-559-01 s PIN, PUSH
606 4-187-619-01 s SHEET,RADIATION(25X25X2)
607 4-586-519-01 s SHEET (1 (28X28)), RADIATION
608 4-812-134-11 s RIVET (DIA. 3.5), NYLON
609 6-714-073-01 s IC 88E1118R-A0-NNC2C000
610 4-545-123-01 s LABEL(10A), FUSE
7-626-320-61 s PIN, SPRING 3X18
7-682-549-09 s SCREW +B 3X10
7-682-947-01 s SCREW +PSW 3X6
7-682-951-01 s SCREW +PSW 3X14
7-685-145-14 s SCREW +P 3X6 TYPE2 NON-SLIT
XVS-8000-C/XVS-8000
7-9
